• LED STRIP LIGHTS

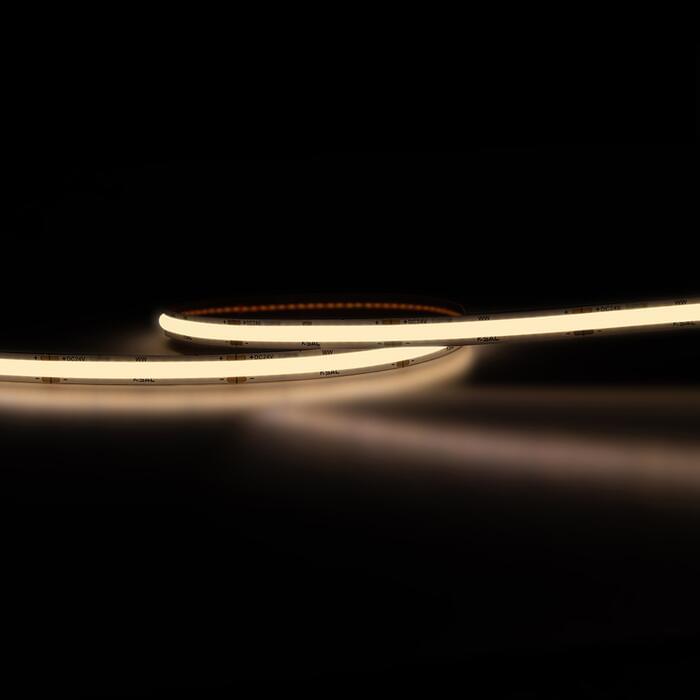

FLEXI STREAMLINE 24V SINGLE COLOUR CRI90 FLLB2410/SS - 10W/m

Roll length 15m, maximum run length 15m, 10W/m, 10mm width strip, IP65, COB, CRI90

Application

Perfect for the home or commercial fit-outs.

Design Specifications

  • Streamline COB LED technology, providing a smooth lighting profile, with 396 x LEDS p/metre

  • Single colour white strip, choice of WW, DL or CW

  • Beam distribution 140°, CRI90, 10W/m

  • Cuttable every 45mm

  • Dimming options: (quick link)
    Type A - Trailing edge dimming,
    Type B - LED strip controller LT8915DIM/BT
    with LT8914DIM/RP if required,
    Type C - Analogue 1-10V
    Type D - DALI 2 control

  • LED channel options (quick link)  Heat sink required for system performance

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Refer dimming options
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6500K
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Watts per metre Beam Angle CRI Lumens per metre LEDs Per Metre Cutting Interval CCT Dim
      		Model No. FLLB2410/WW/SS Add to Enquiry Add Remove Remove Input Voltage 24 Watts per metre 10 Beam Angle 140 CRI 90 Lumens per metre 735 LEDs Per Metre 396 Cutting Interval 45 CCT 3000 Dim 10(W) x 2(H)
      		Model No. FLLB2410/CW/SS Add to Enquiry Add Remove Remove Input Voltage 24 Watts per metre 10 Beam Angle 140 CRI 90 Lumens per metre 800 LEDs Per Metre 396 Cutting Interval 45 CCT 4000 Dim 10(W) x 2(H)
      		Model No. FLLB2410/DL/SS Add to Enquiry Add Remove Remove Input Voltage 24 Watts per metre 10 Beam Angle 140 CRI 90 Lumens per metre 840 LEDs Per Metre 396 Cutting Interval 45 CCT 6500 Dim 10(W) x 2(H)

      NOTE: for external use, protection against direct UV exposure is recommended.
