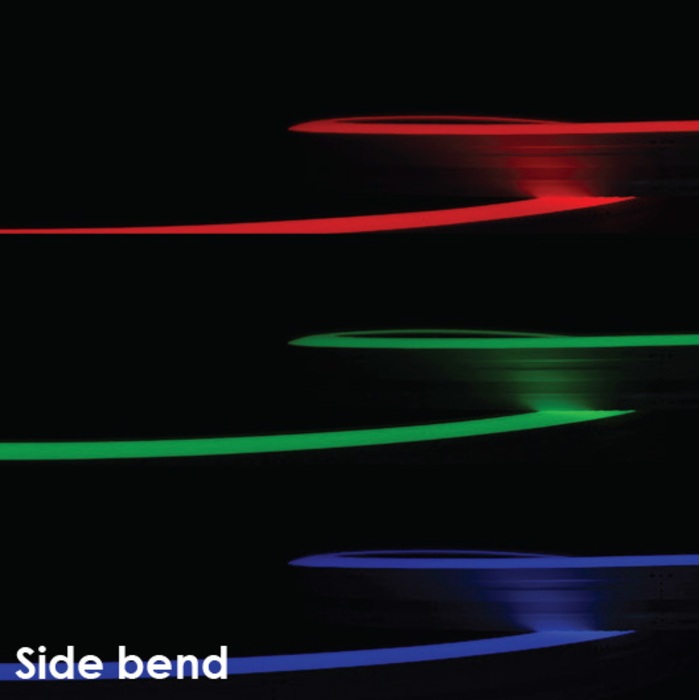

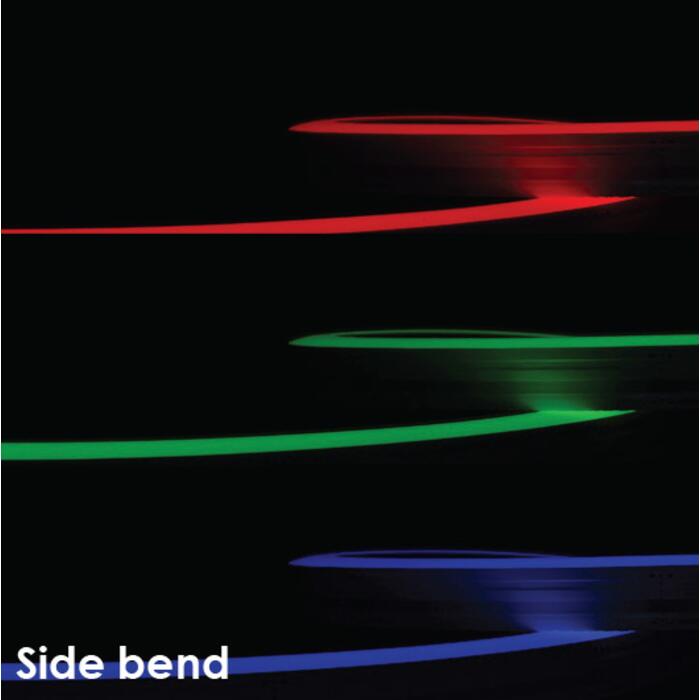

NEON SIDE BEND RGB - 24V IP67 FLN2412 - 12W/M

Roll length 5m, maximum run length 5m, flexible Neon SIDE Bend RGB strips, 24V, IP67

Application

A very flexible solution for residential and commercial interior spaces

Design Specifications

  • High efficiency LED optics, 12W/m, beam distribution 120°, R: 620~630 G: 520~530 B: 460~470

  • Cuttable every 50mm at scissors, 400mm tail, maximum run length 5m

  • Power supply ordered separately, 12W/m

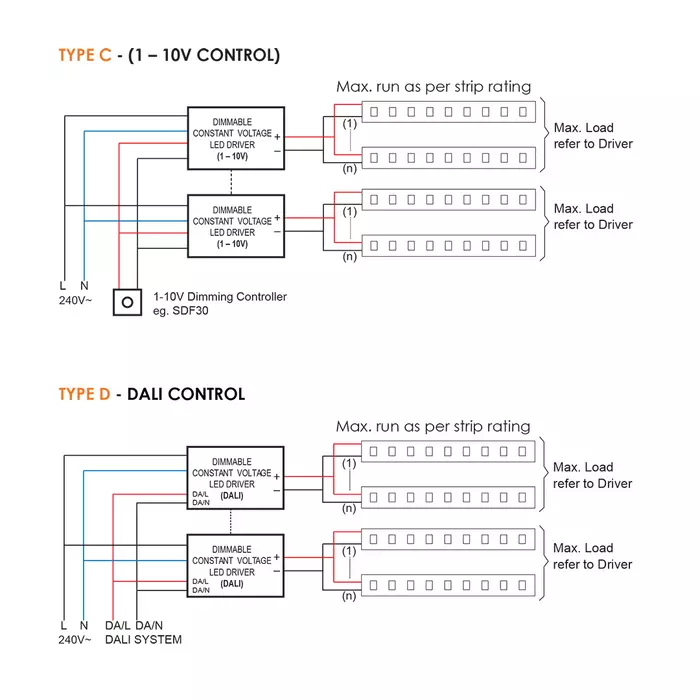

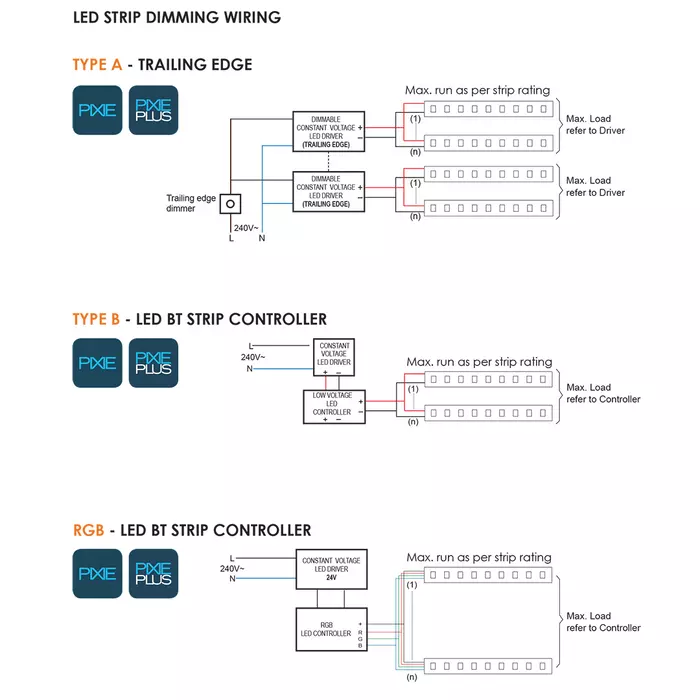

  • Dimming options: (quick link)
    Type A - Trailing edge dimming,
    Type B - LED strip controller LT8915DIM/BT
    with LT8914DIM/RP if required,
    Type C - Analogue 1-10V
    Type D - DALI 2 control

  • Codes listed are per metre, 5M roll packs to order

  • Termination accessories connectors are available

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - refer driver specification
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Watts per metre Beam Angle LEDs Per Metre Cutting Interval Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.FLN2412RGB1220 Input Voltage24 Watts per metre12 Beam Angle120 LEDs Per Metre120 Cutting Interval50 Dim12(W) x 20(H) Add to Enquiry Add Remove Remove

    Note: For exterior applications, installation in spaces exposed to direct UV exposure is not recommended

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
