• LED STRIP LIGHTS

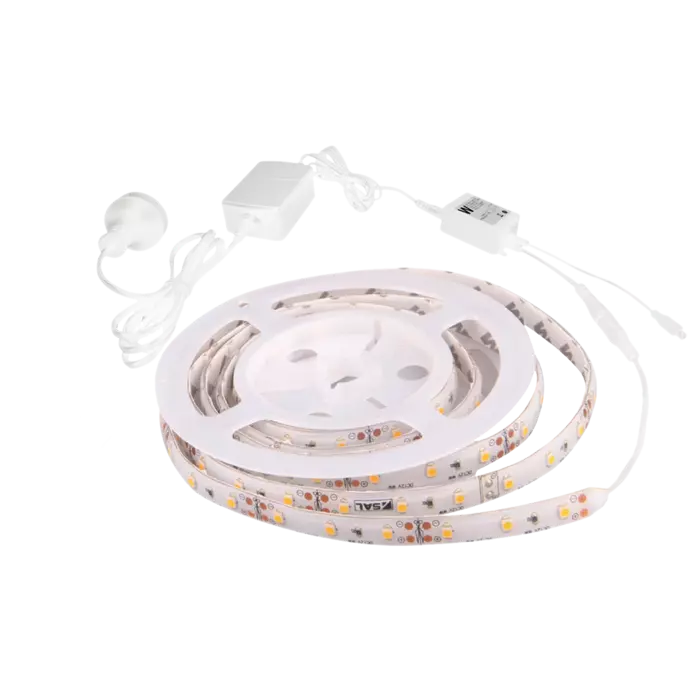

FLEXI SMART 12V SINGLE COLOUR KIT IP44, FLP12V/SBT

2m and 5m smart lighting, white strip kits

Application

Home theatre, bar features, decorative task illumination demanding smart controls

Design Specifications

  • Smart LED strip kit

  • Dimmable functions controlled via the SAL PIXIE or PIXIE PLUS apps

  • Dimming memory function, high performance, stable, even light output

  • Pre wired for easy installation, plug-in & ready to use

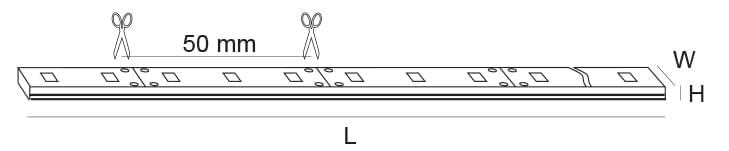

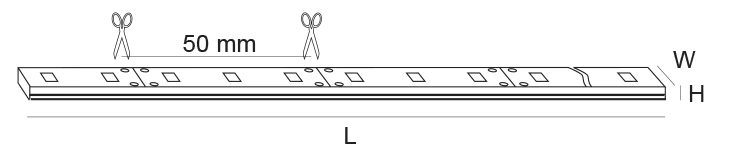

  • Cuttable every 50 mm, 2m or 5m kits, lumens shown are lm/m, strip power 6W/m. NOTE: when cutting LED strips, it is always important to calculate the remaining LED load to reconfirm its compatibility with the existing driver, as driver changes may be required with moderate reduction in loads.

  • Choice of 2m and 5m packs available, IP44 strip only, IP20 driver, Heatsink required for system performance

    Dimming is achieved via the PIXIE or PIXIE PLUS app or via a SAL Multifunction control. Trailing edge dimmers are not suitable

    LED channel options refer this section

Performance

  • Dimmable - YES
  • Dimmer Type - PIXIE
  • WARM WHITE3000K
  • NEUTRAL DAYLIGHT5000K
  • WARM WHITE3000K
  • NEUTRAL DAYLIGHT5000K
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Watts per metre Beam Angle Lumens Body Colour CRI Luminous Flux Per Meter LEDs Per Metre Dim Colour Temp. Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.FLP12V2M/WW/SBT Input Voltage240 Watts per metre6 Beam Angle115 Lumens300 Body ColourCLEAR CRI80 Luminous Flux Per Meter350 LEDs Per Metre60 Dim2000(L) x 8(W) x 2.5(H) Colour Temp.3000 Add to Enquiry Add Remove Remove
    Model No.FLP12V2M/NDL/SBT Input Voltage240 Watts per metre6 Beam Angle115 Lumens300 Body ColourCLEAR CRI80 Luminous Flux Per Meter350 LEDs Per Metre60 Dim2000(L) x 8(W) x 2.5(H) Colour Temp.5000 Add to Enquiry Add Remove Remove
    Model No.FLP12V5M/WW/SBT Input Voltage240 Watts per metre6 Beam Angle115 Lumens300 Body ColourCLEAR CRI80 Luminous Flux Per Meter LEDs Per Metre60 Dim5000(L) x 8(W) x 2.5(H) Colour Temp.3000 Add to Enquiry Add Remove Remove
    Model No.FLP12V5M/NDL/SBT Input Voltage240 Watts per metre6 Beam Angle115 Lumens300 Body ColourCLEAR CRI80 Luminous Flux Per Meter LEDs Per Metre60 Dim5000(L) x 8(W) x 2.5(H) Colour Temp.5000 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
