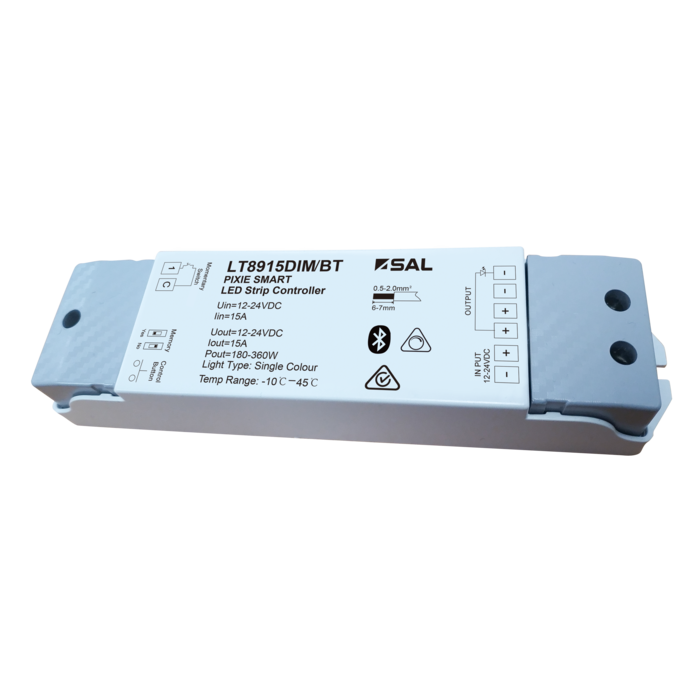

PIXIE STRIP CONTROLLER - LT8915DIM/BT

PIXIE MASTER DEVICE - Smart single colour LED strip controller

Application

Home theatre, commercial spaces and decorative feature lighting designs which require smart control

Design Specifications

  • Designed for single colour brightness control, smooth 0 - 100% dimming

  • Input voltage range: 12-24V DC, 360W maximum power output at 24V

  • One channel with two sets of terminals for easy wiring

  • Supports momentary switch (bell press control)

  • Control button for easy commissioning and optional memory function

  • Supports both wireless and wired group control.

    Dimming is achieved via the PIXIE or PIXIE PLUS app (strip controller if supplied) or via a SAL Multifunction control. Trailing edge dimmers are not suitable

Performance

  • Dimmable - YES
  • Dimmer Type - PIXIE Bluetooth control

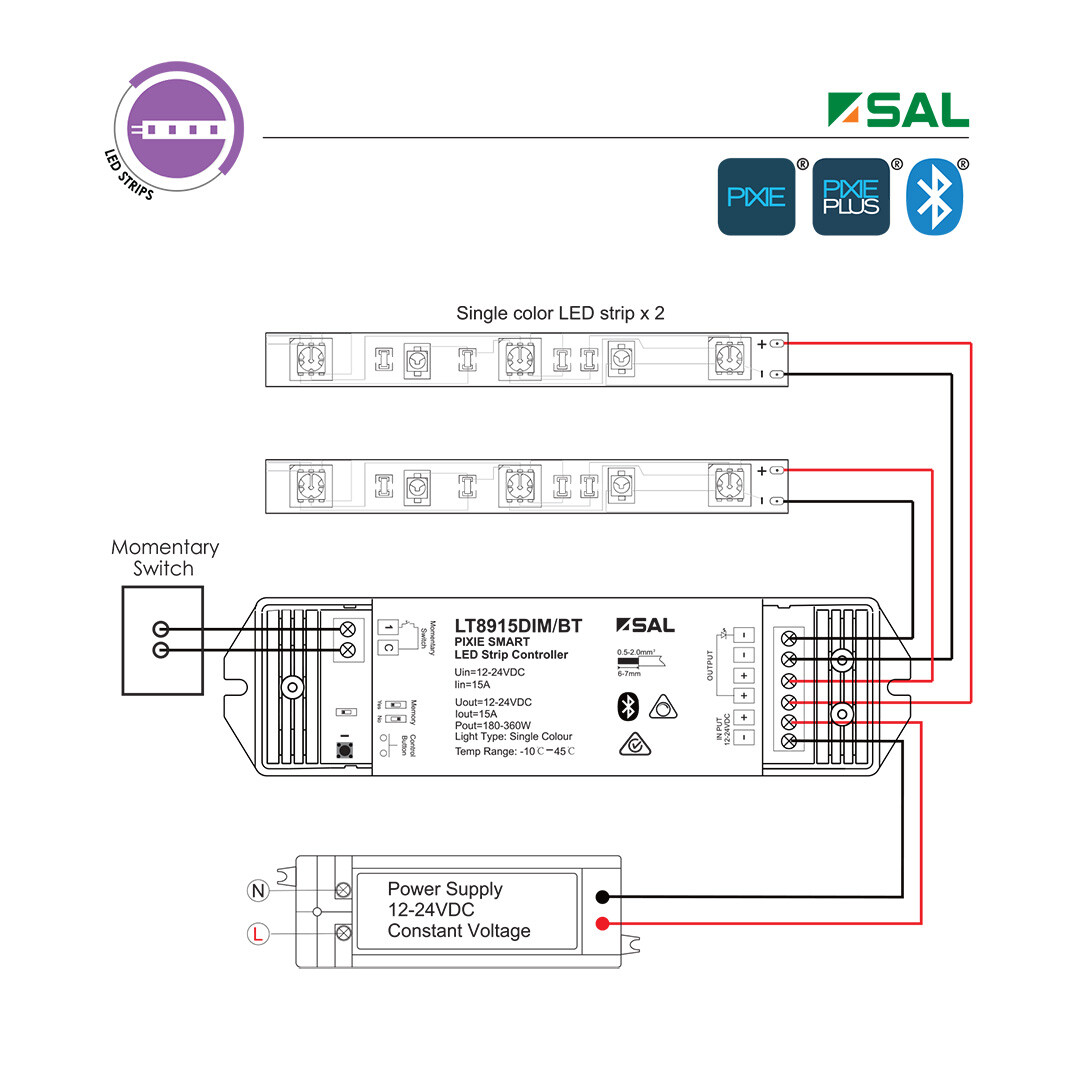

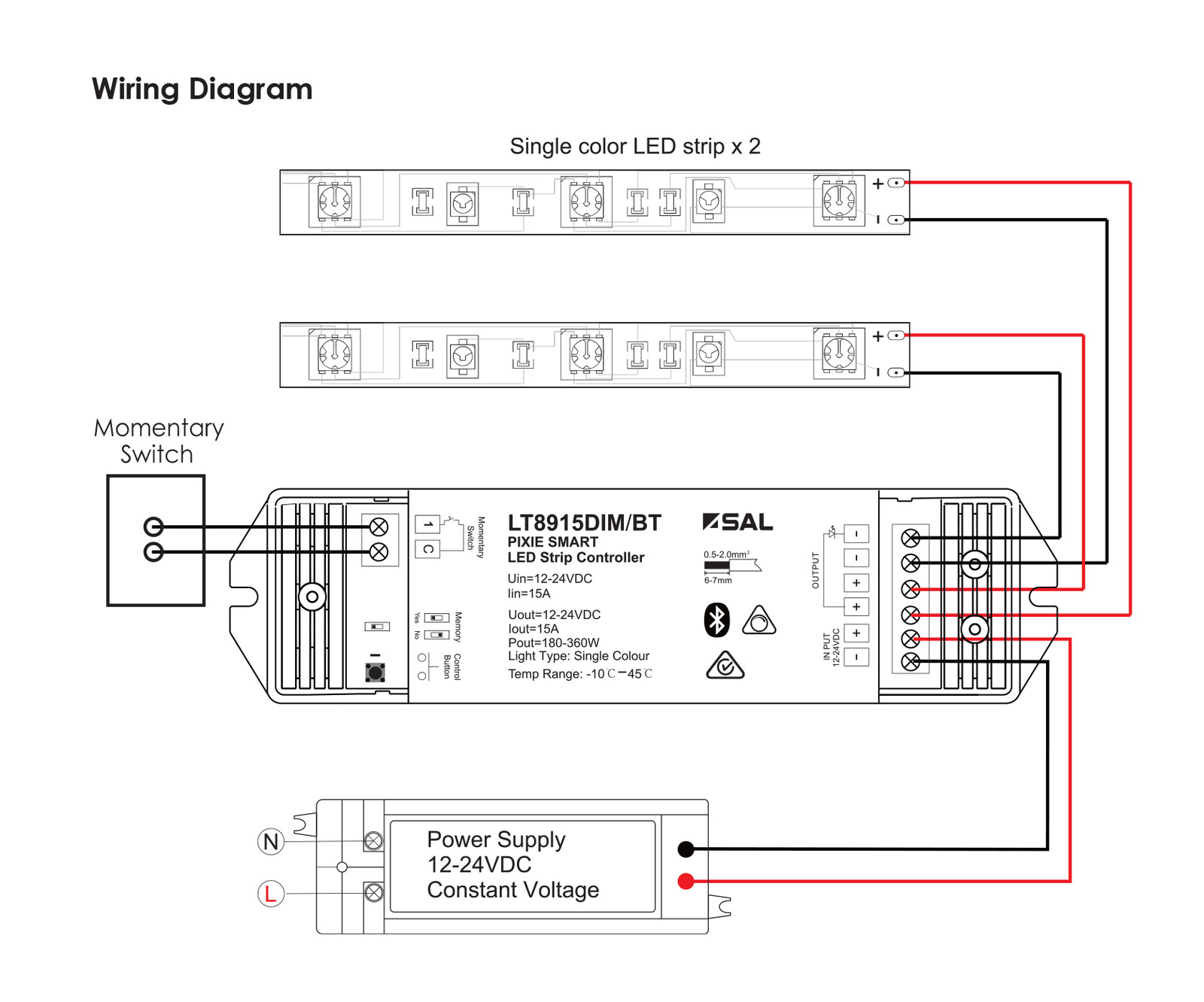

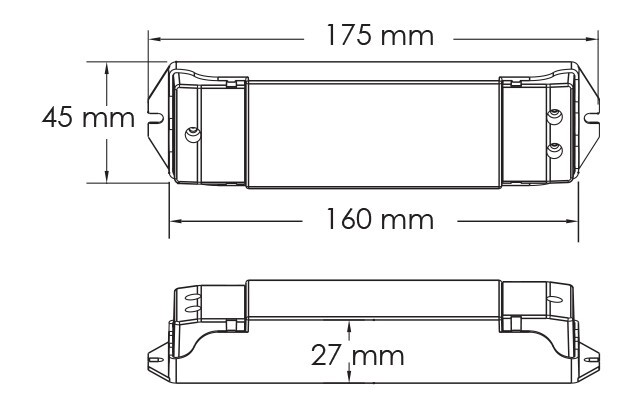

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Dimmable Power Body Colour Dim
      		Model No. LT8915DIM/BT Add to Enquiry Add Remove Remove Dimmable YES Power 360 Body Colour WHITE Dim 175(L) x 45(W) x 27(H)
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
