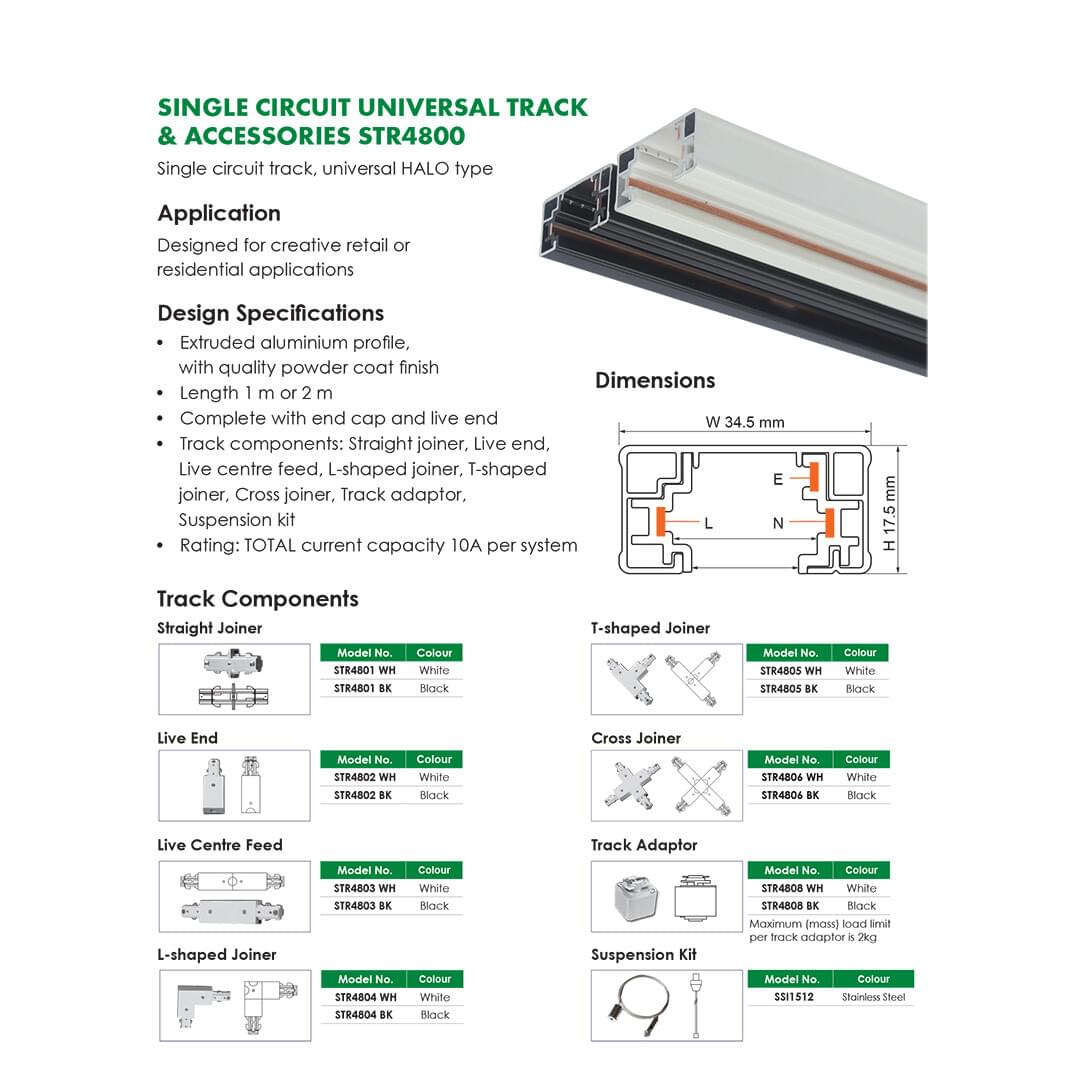

SINGLE CIRCUIT TRACK & ACCESSORIES - STR4800

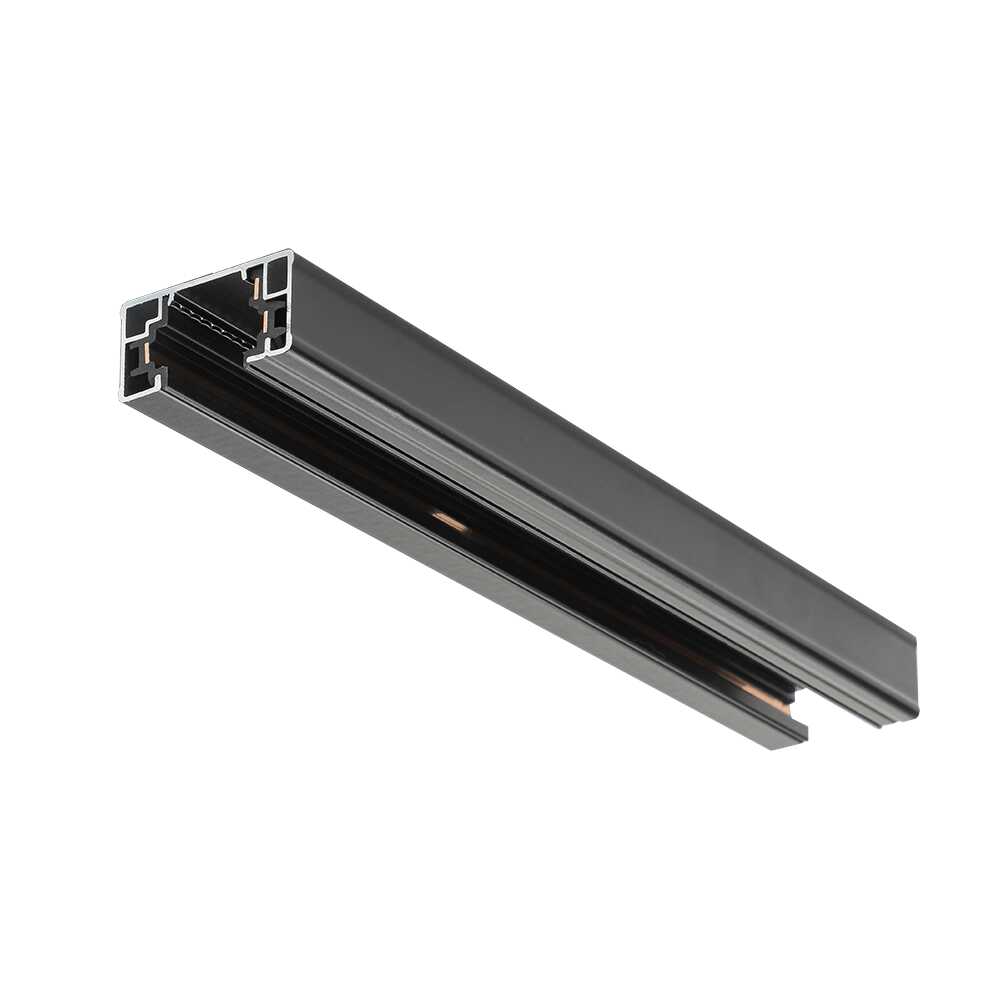

Single circuit track universal HALO type

Application

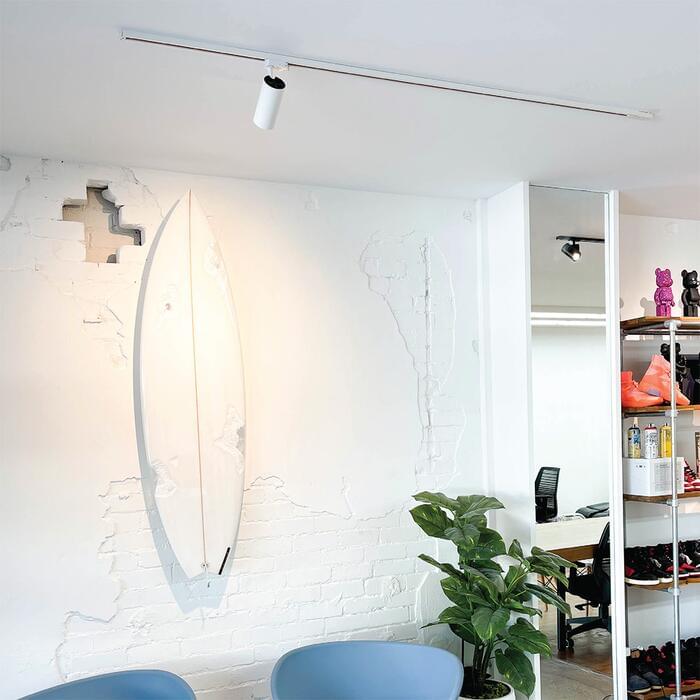

Designed for decorative and creative retail applications

Design Specifications

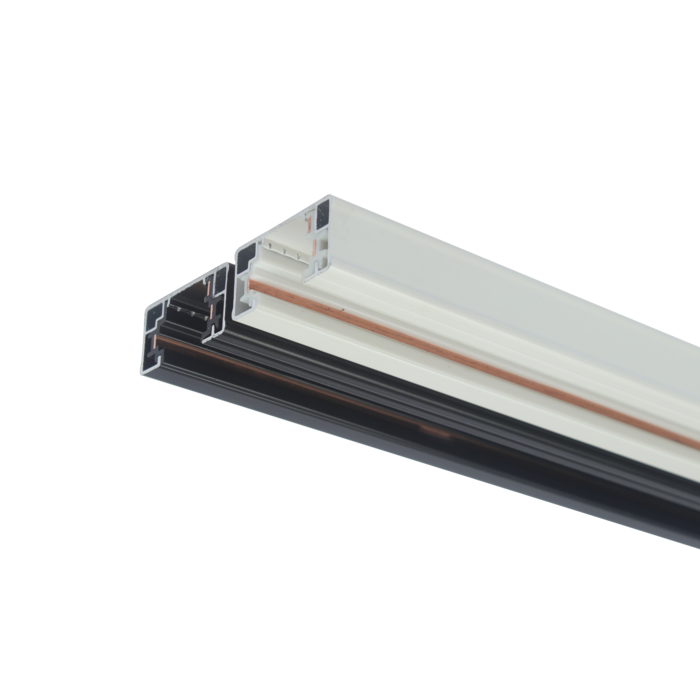

  • Extruded aluminium profile, with quality powder coated finish, RAL9010 for white & RAL9004 for black.

  • Length 1 m or 2 m

  • Complete with end cap and live end

  • Track components: Straight joiner, Live end, Live centre feed, L-shaped joiner, T-shaped joiner, Cross joiner, Track joiner, Suspension kit

  • Rating: TOTAL track capacity 10A.

  • Maximum (mass) load limit per track adaptor is 2kg

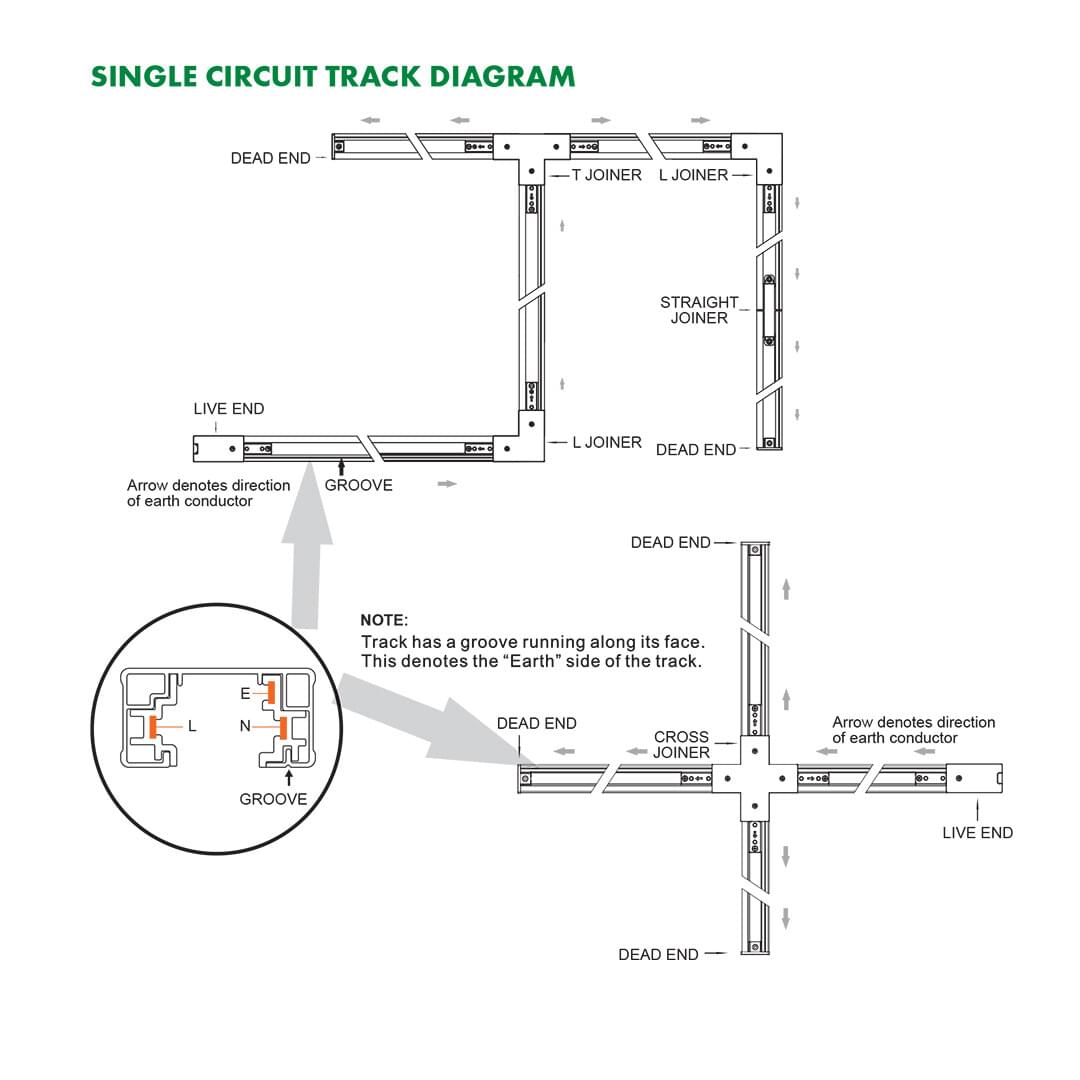

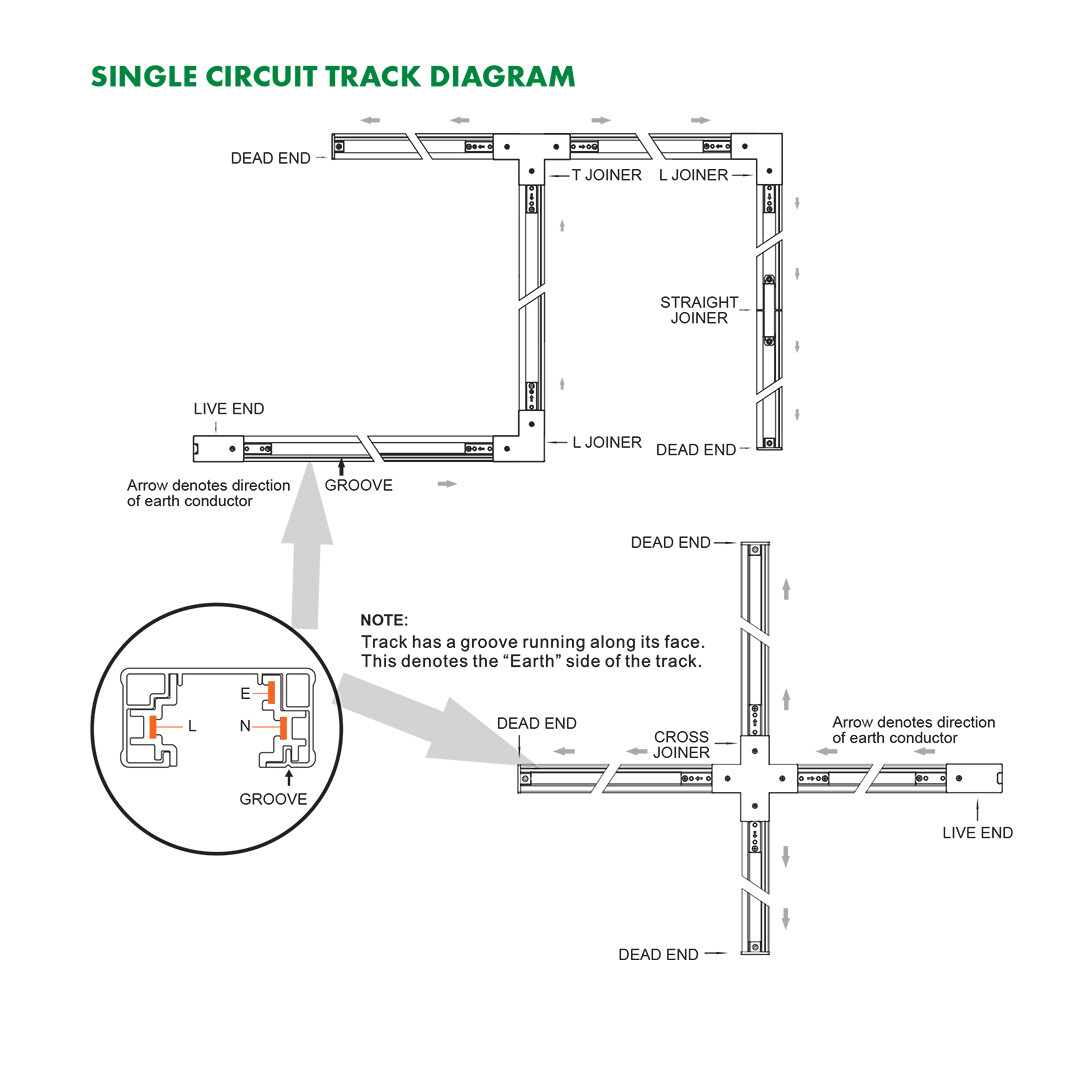

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Body Colour Dim

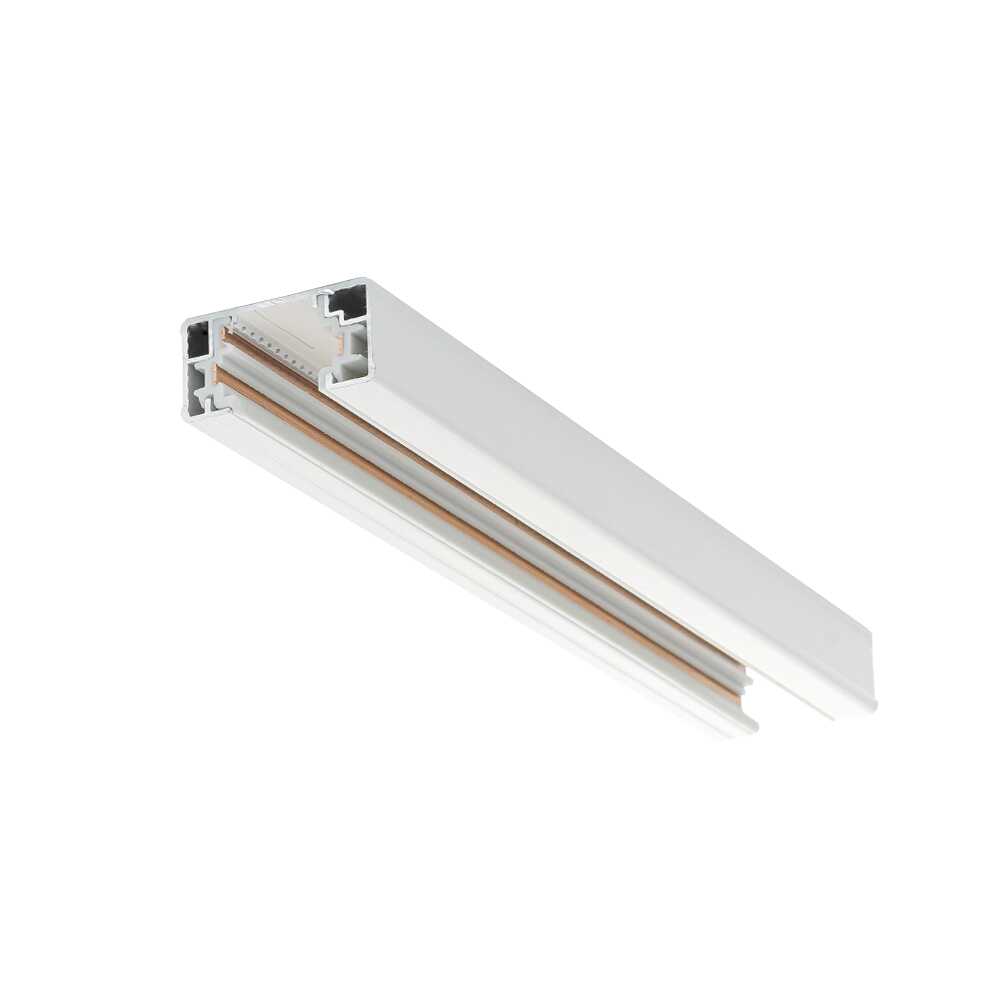

      		Model No. STR4800/1 WH Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour WHITE Dim 1000(L)
      		Model No. STR4800/1 BK Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour BLACK Dim 1000(L)
      		Model No. STR4800/2 WH Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour WHITE Dim 2000(L)
      		Model No. STR4800/2 BK Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour BLACK Dim 2000(L)

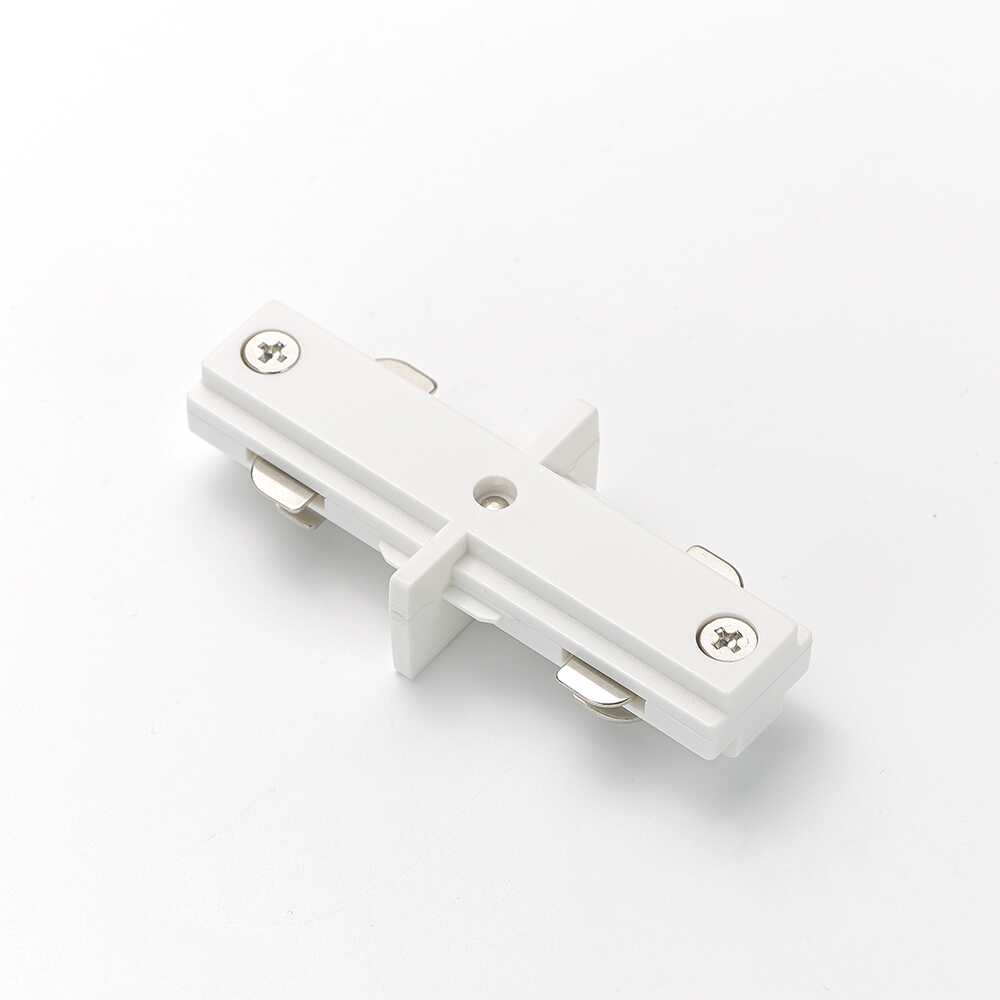

      		Model No. STR4801 WH Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour WHITE

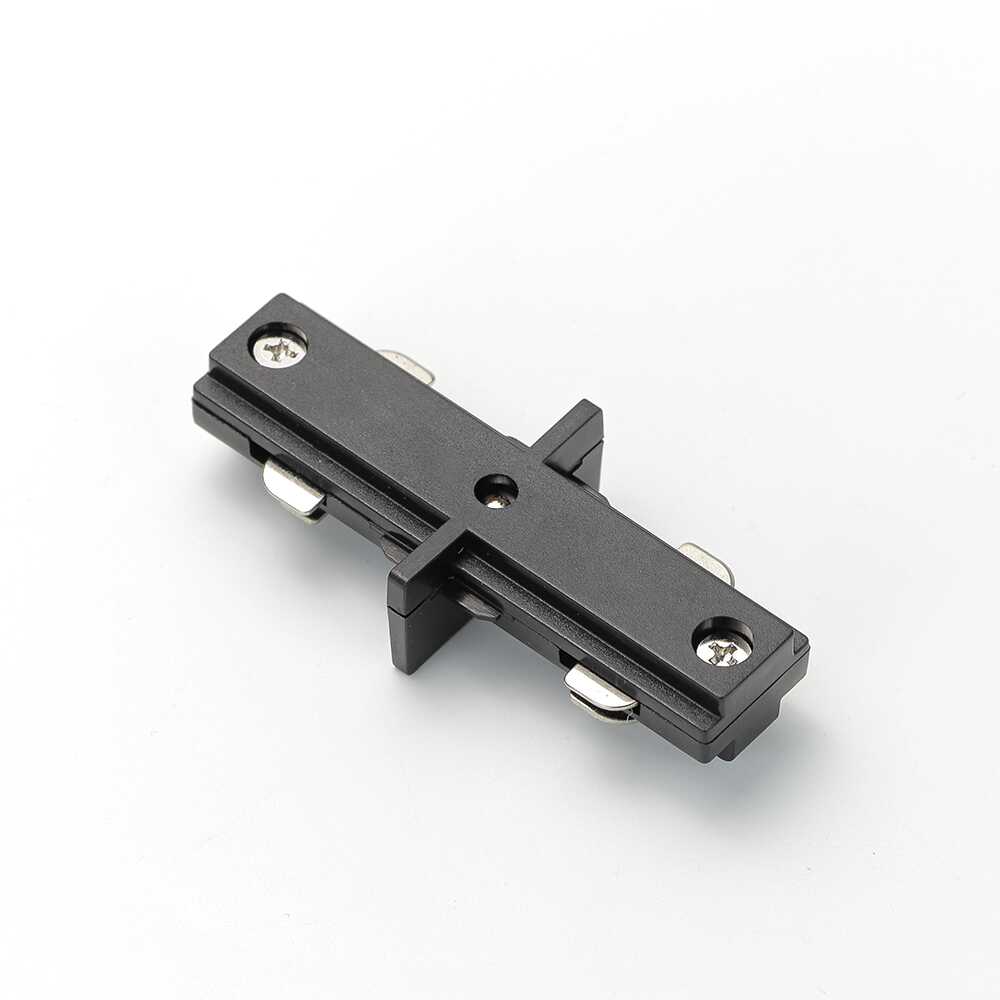

      		Model No. STR4801 BK Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour BLACK

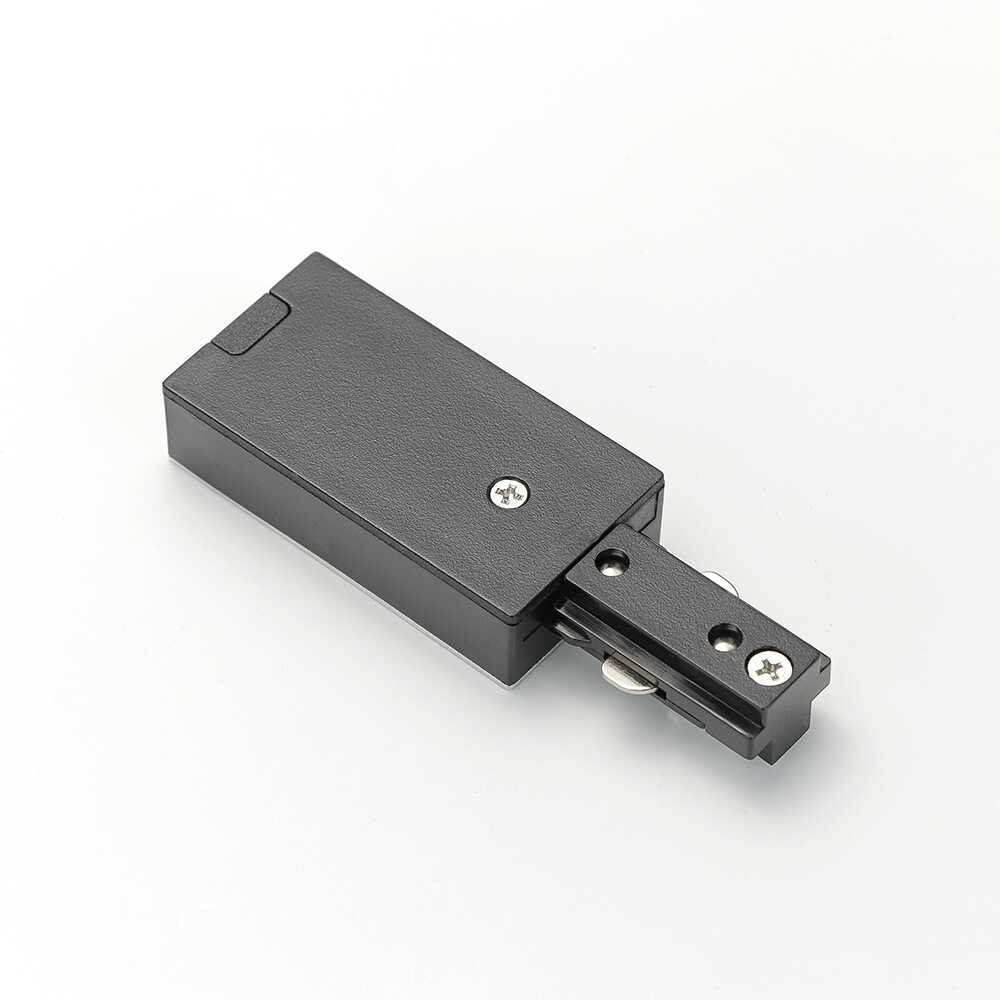

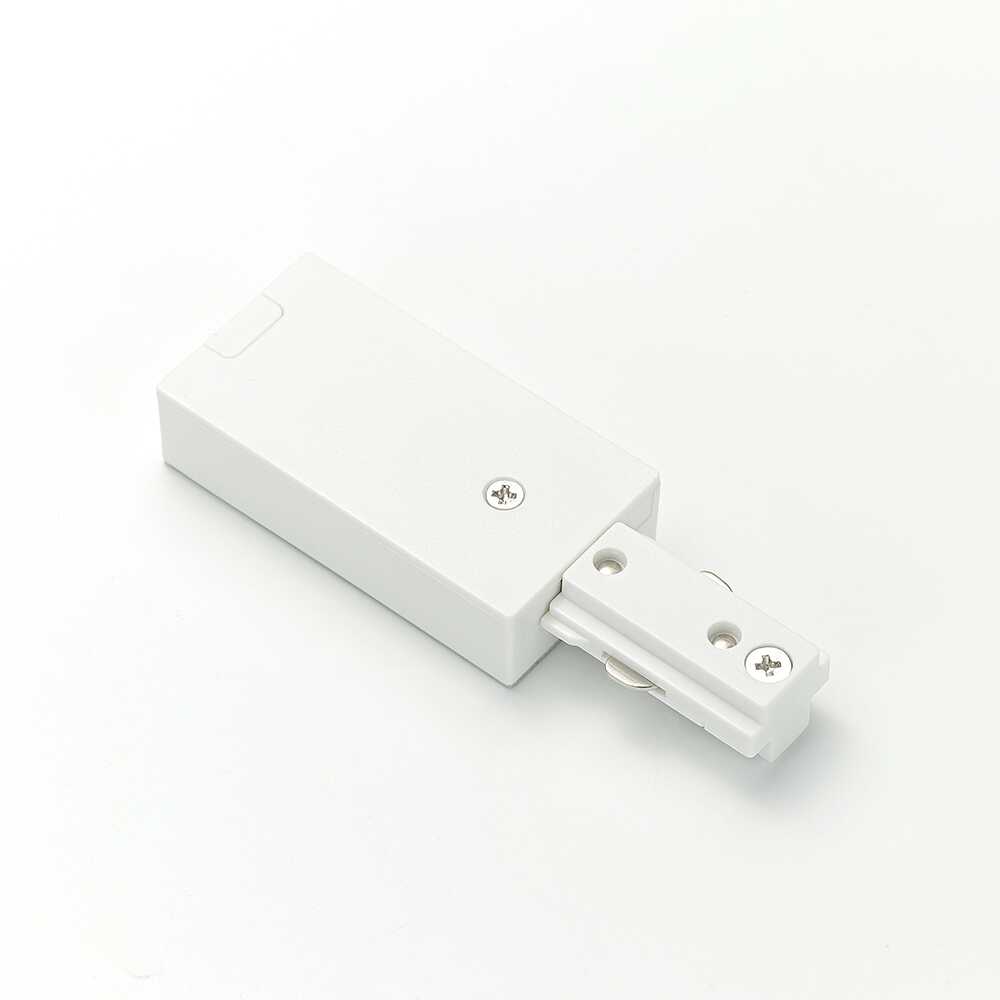

      		Model No. STR4802 WH Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour WHITE
      		Model No. STR4802 BK Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour BLACK

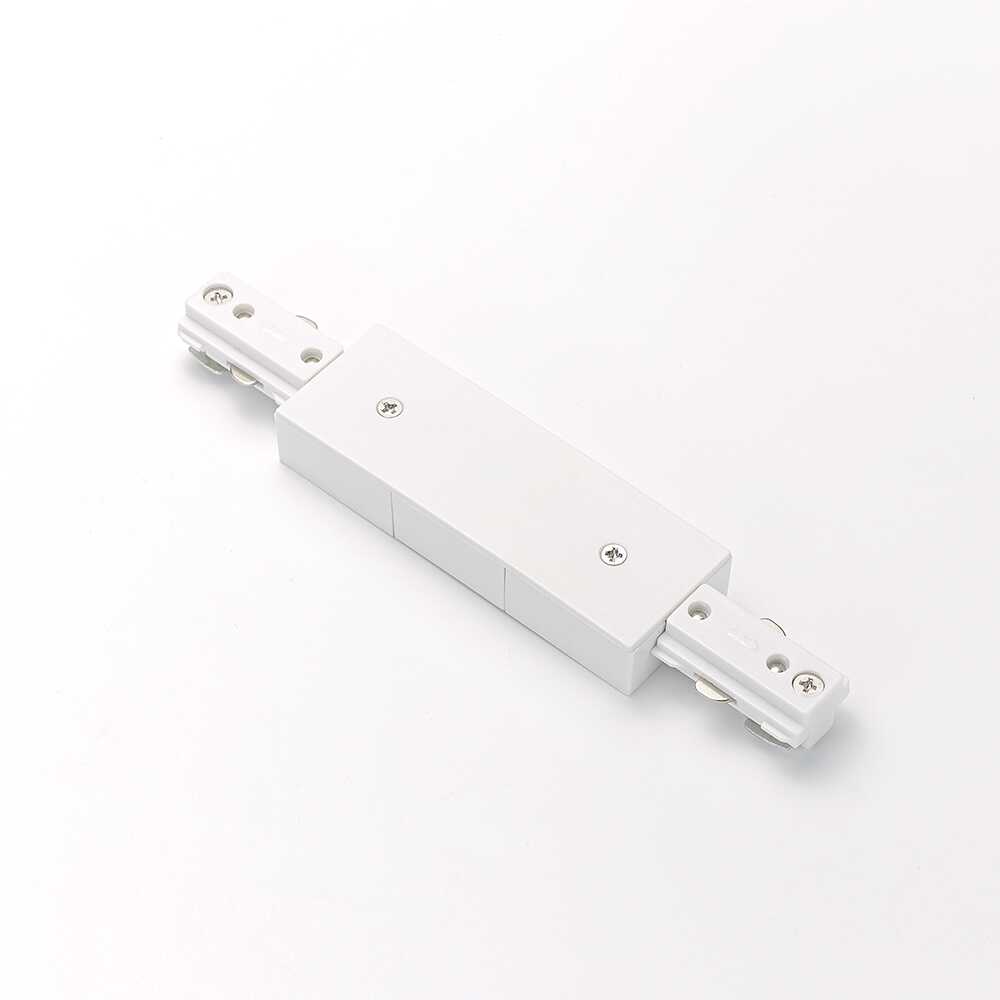

      		Model No. STR4803 WH Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour WHITE

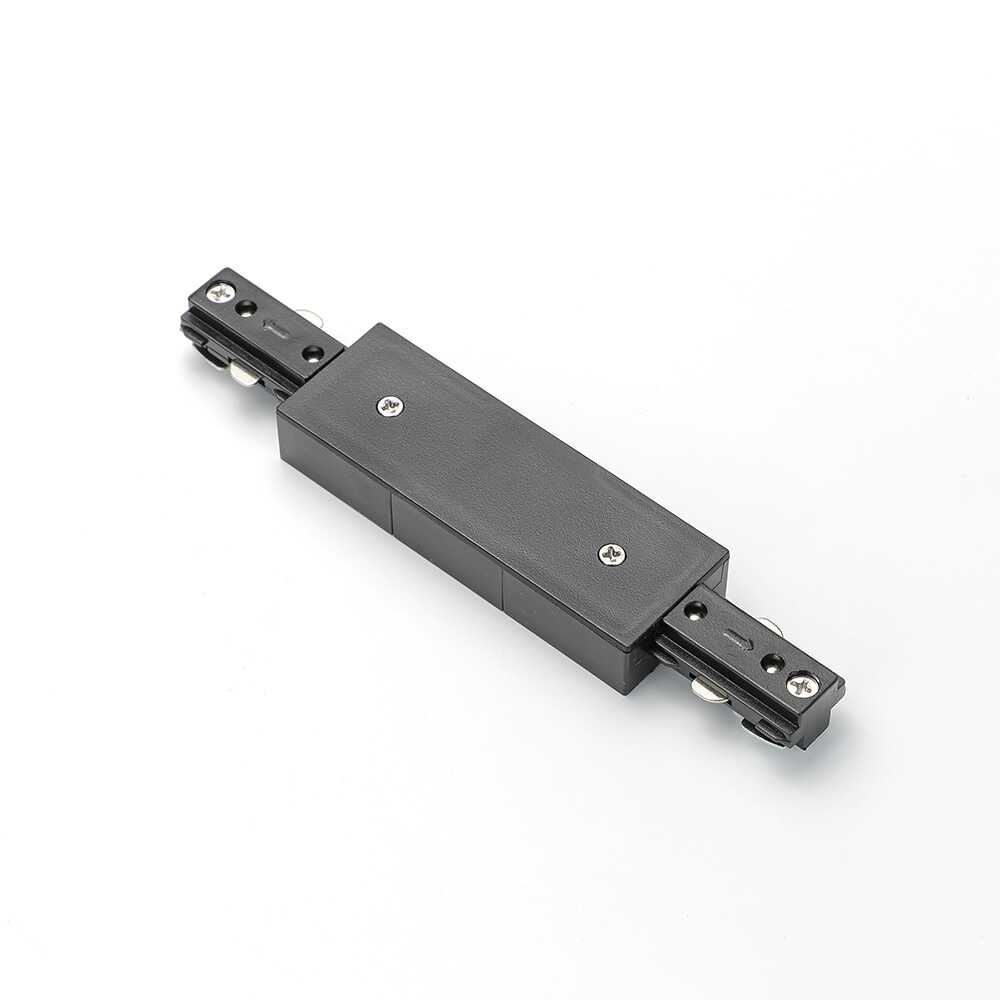

      		Model No. STR4803 BK Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour BLACK

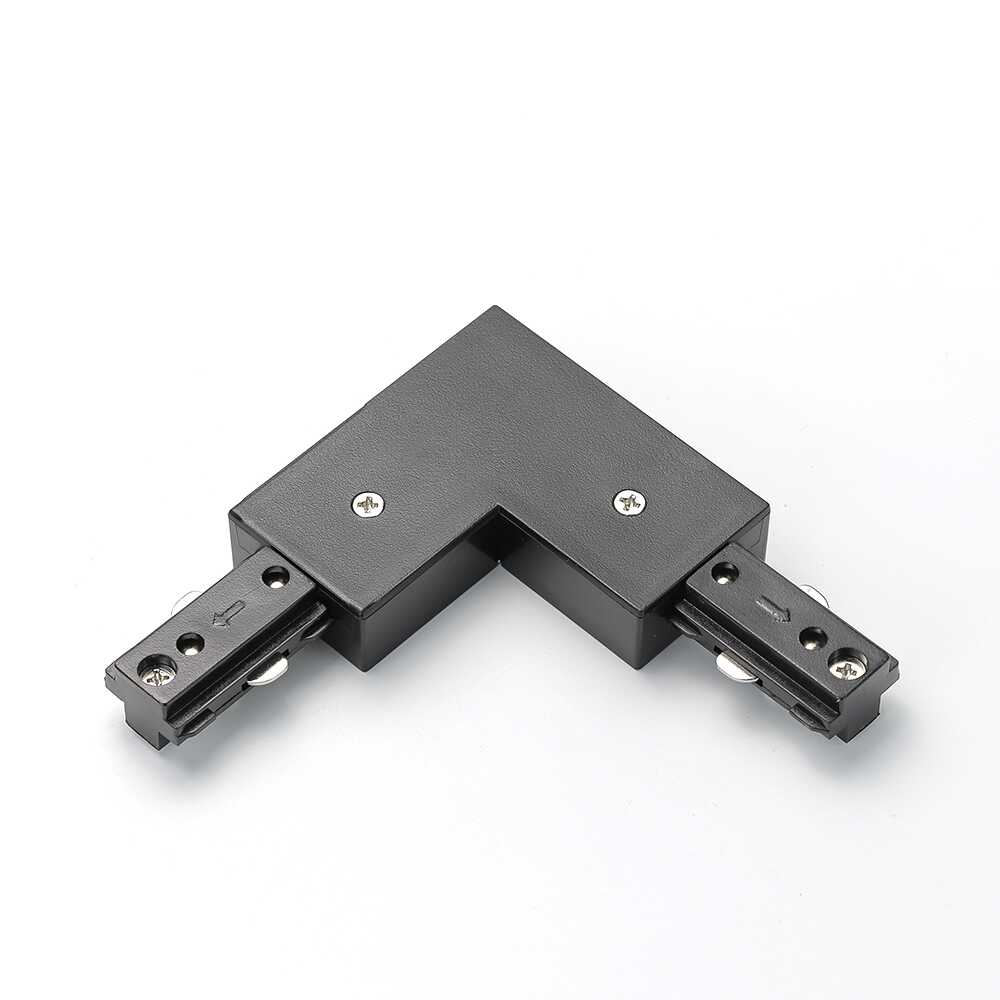

      		Model No. STR4804 WH Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour WHITE
      		Model No. STR4804 BK Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour BLACK

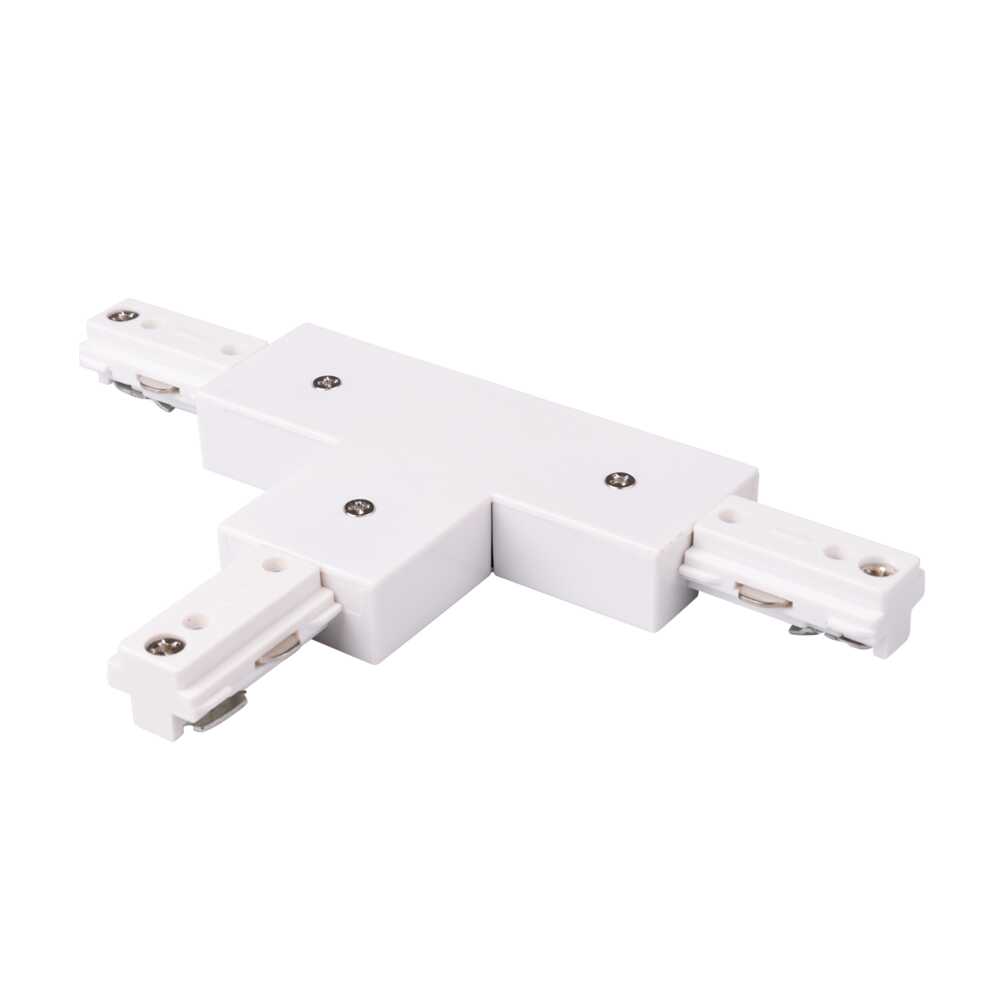

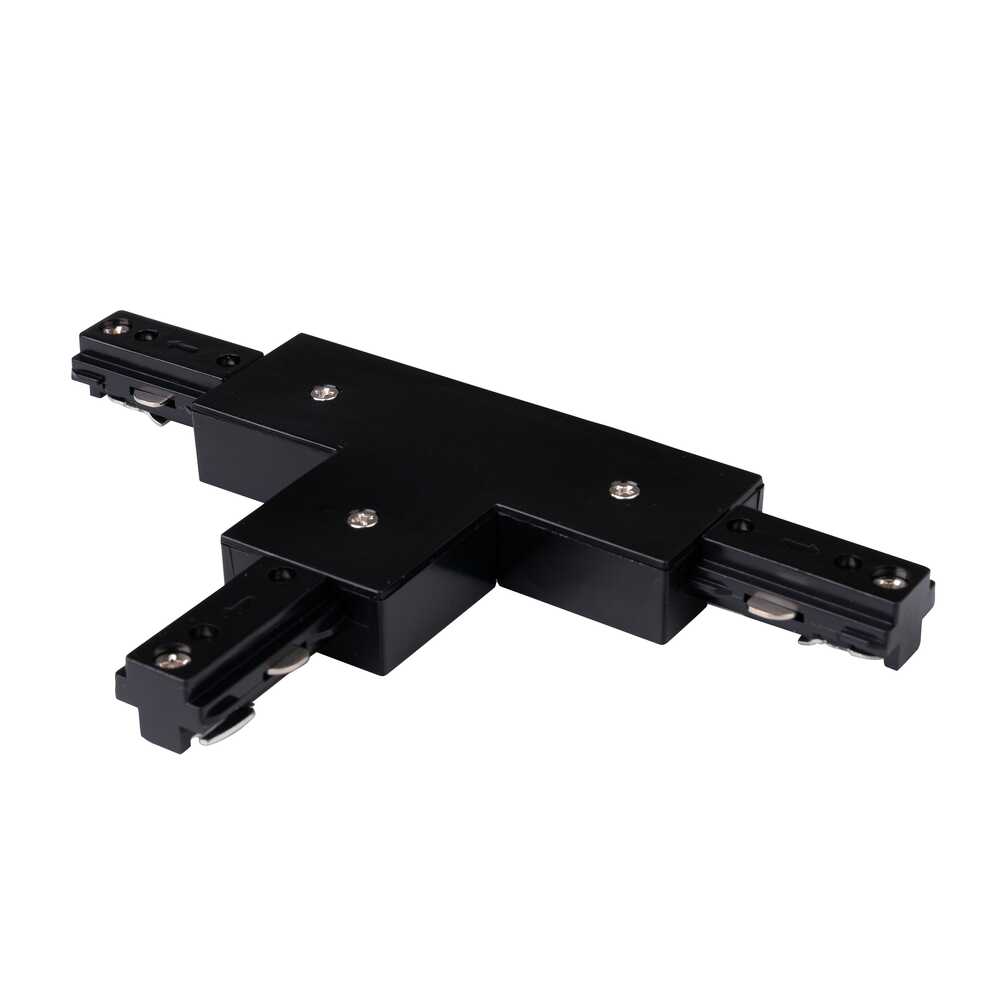

      		Model No. STR4805 WH Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour WHITE
      		Model No. STR4805 BK Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour BLACK

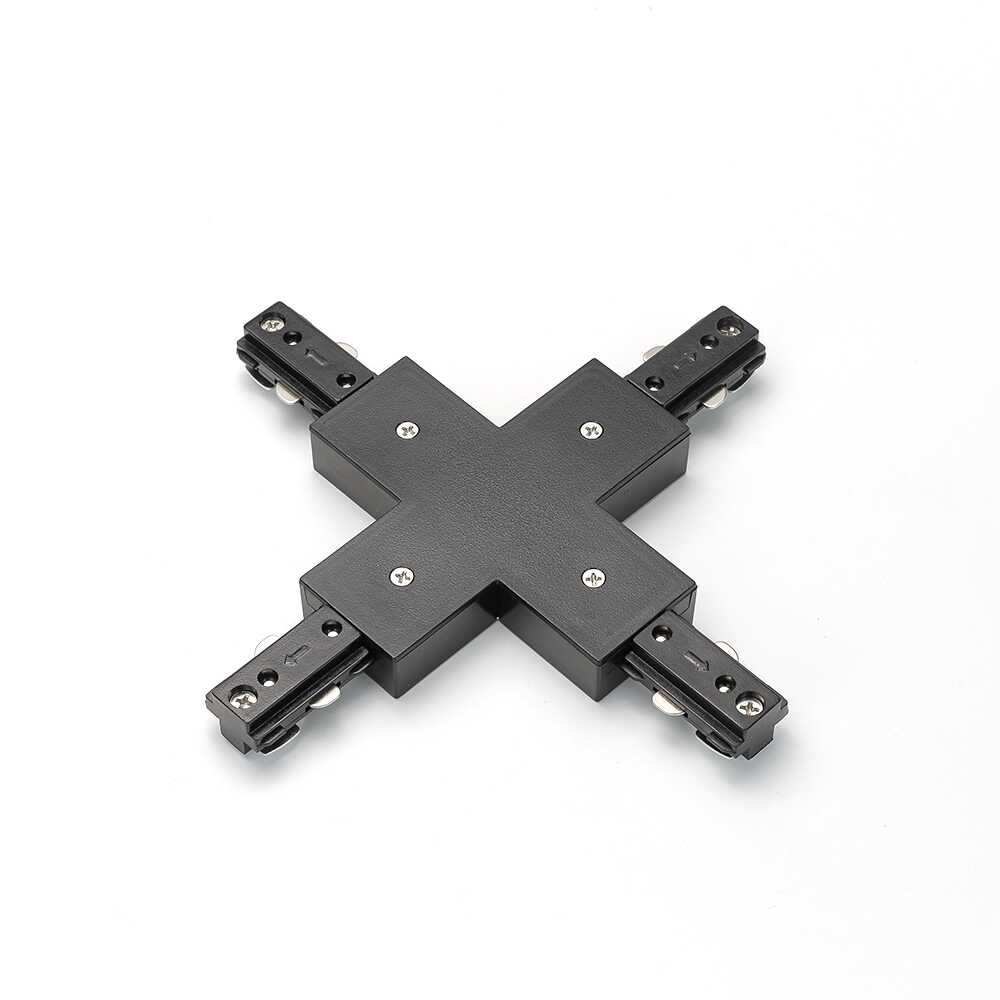

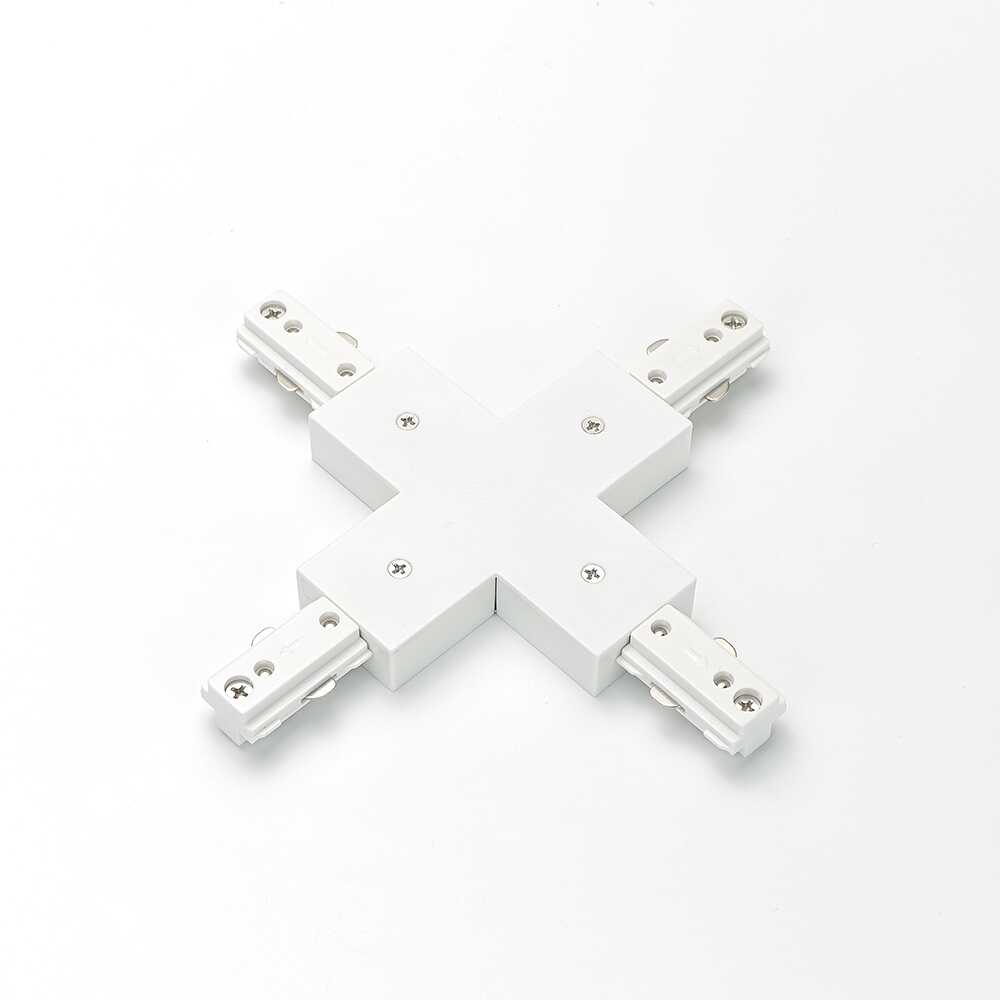

      		Model No. STR4806 WH Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour WHITE
      		Model No. STR4806 BK Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour BLACK

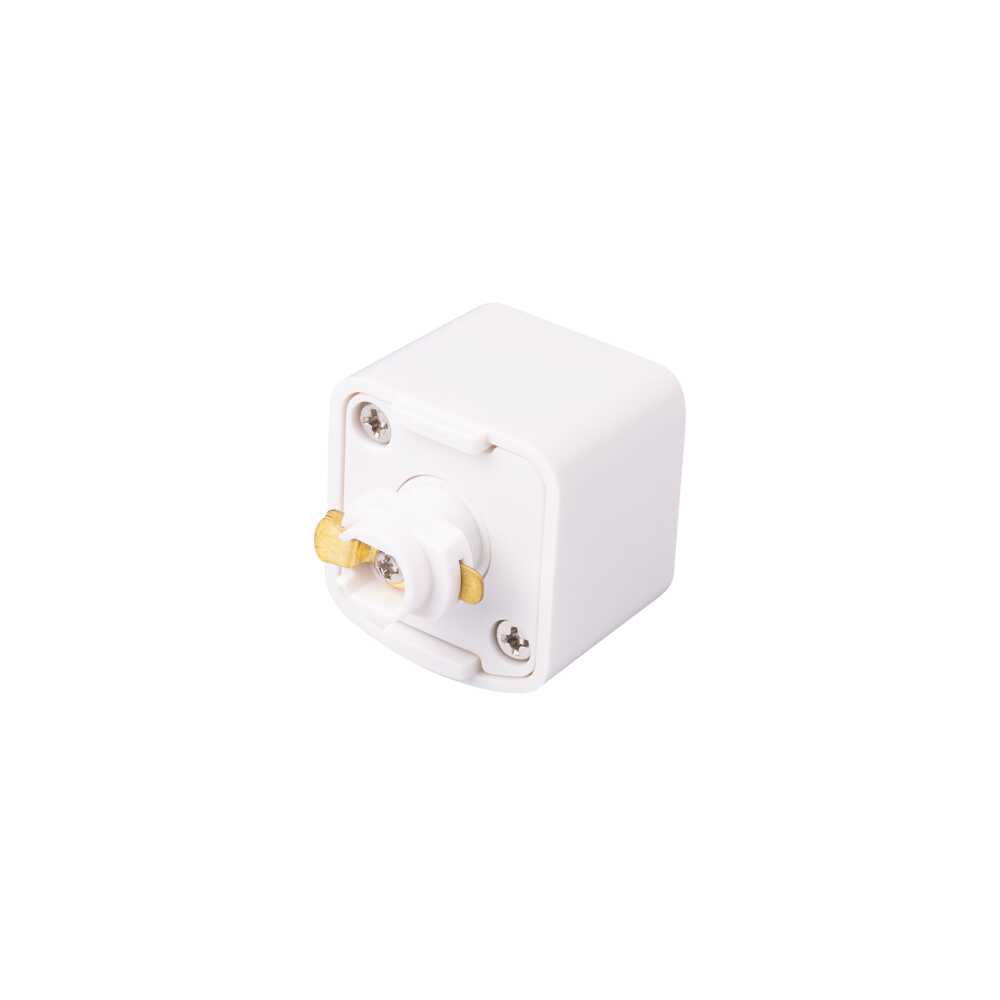

      		Model No. STR4808 WH Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour WHITE
      		Model No. STR4808 BK Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour BLACK

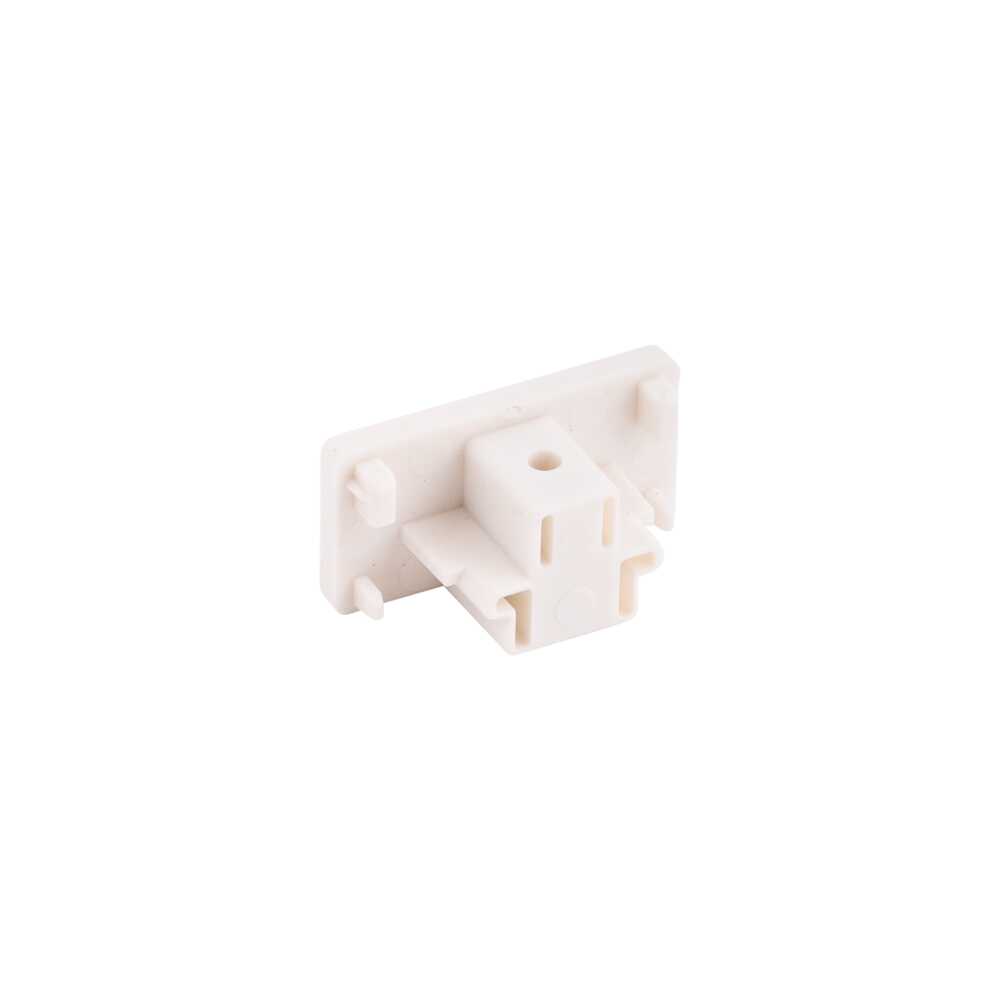

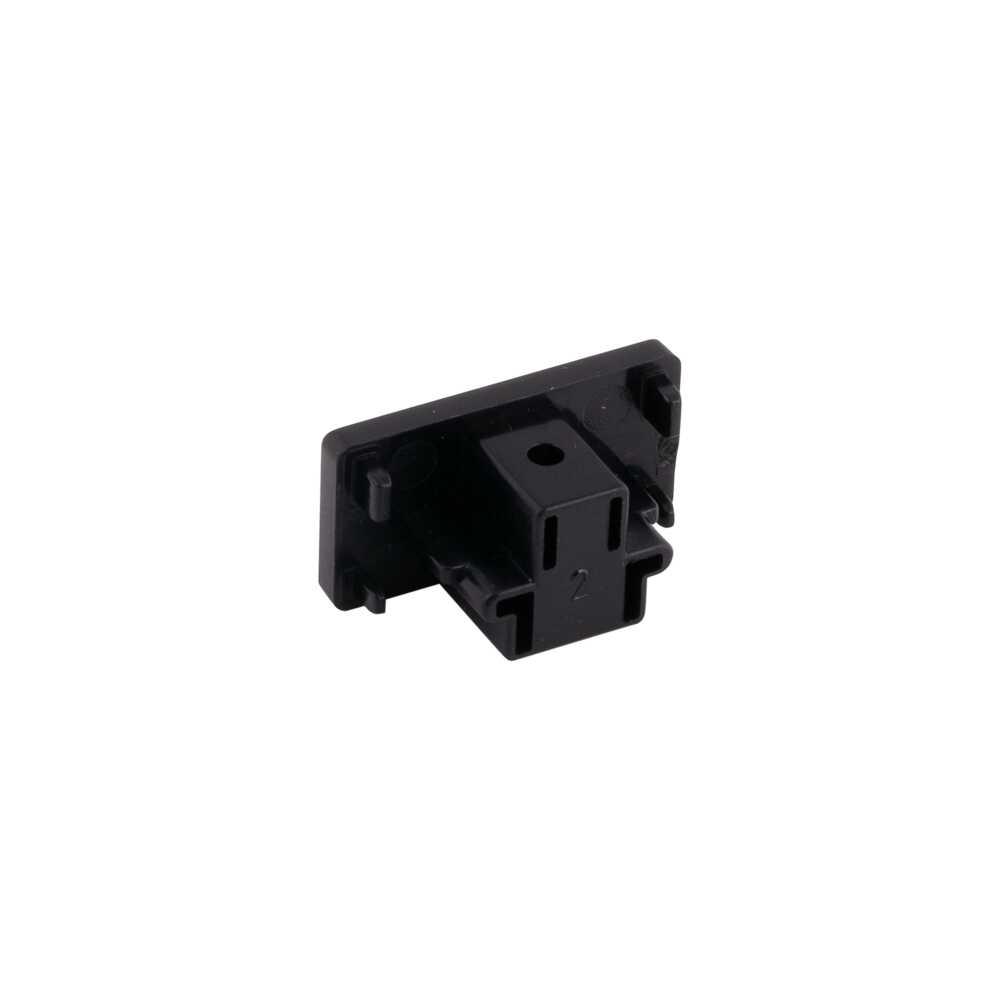

      		Model No. STR4800EC WH Add to Enquiry Add Remove Remove Body Colour WHITE
      		Model No. STR4800EC BK Add to Enquiry Add Remove Remove Body Colour BLACK

      NOTE: tracklight systems are designed for horizontal ceiling mount, with the track opening parallel to the floor, for non-raked ceiling installations
