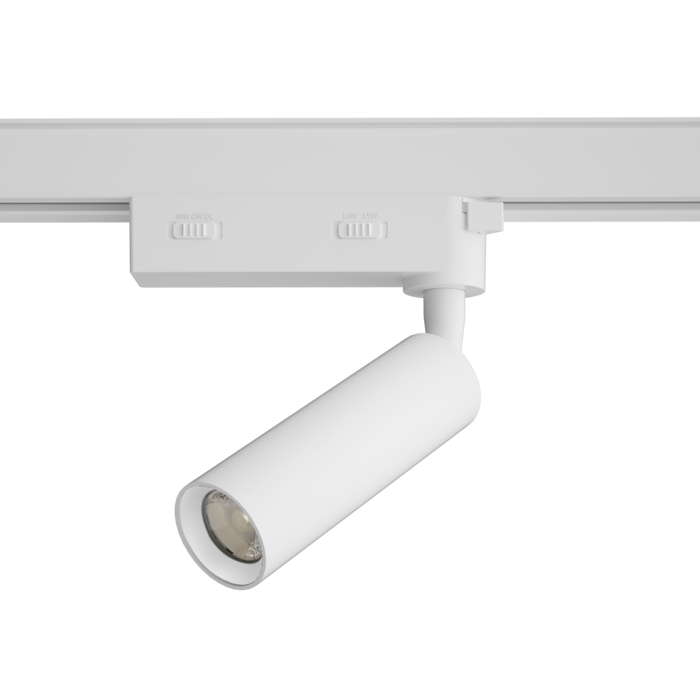

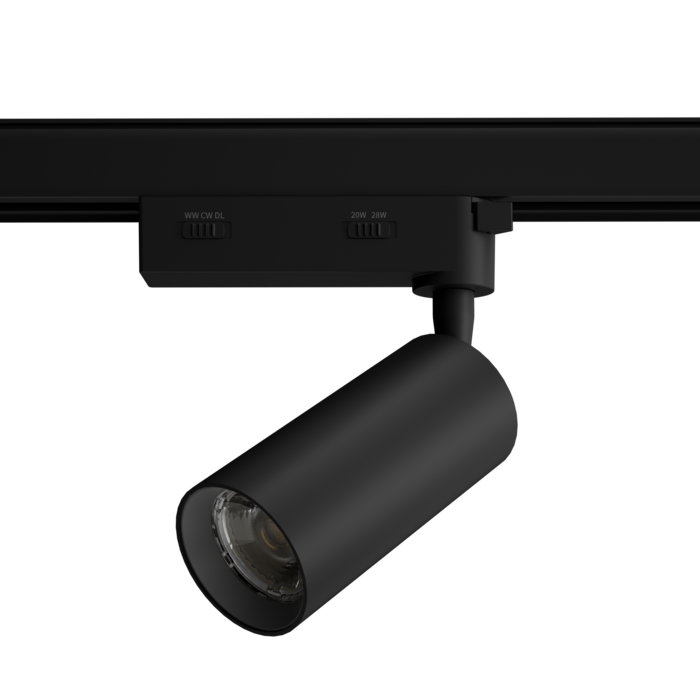

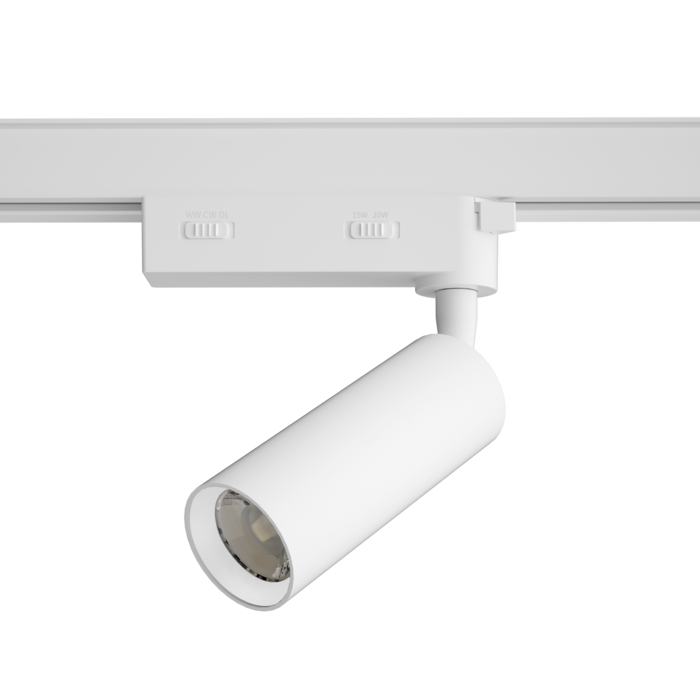

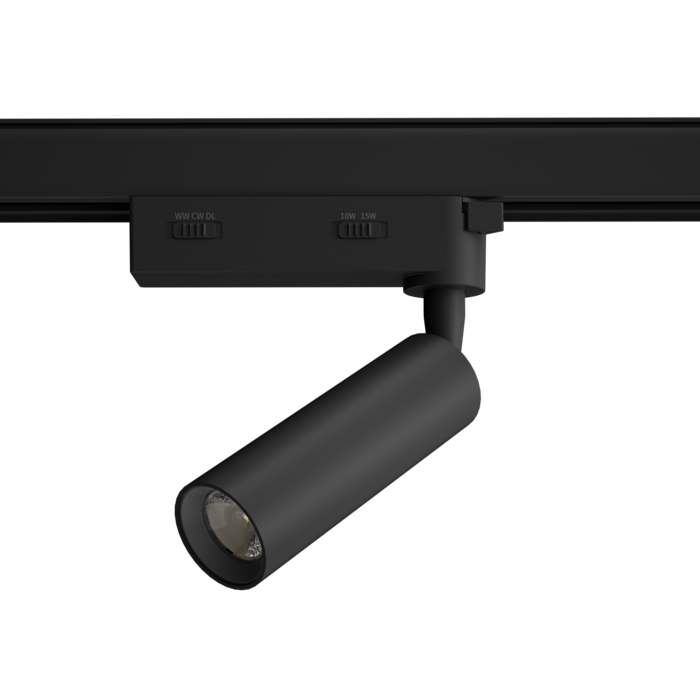

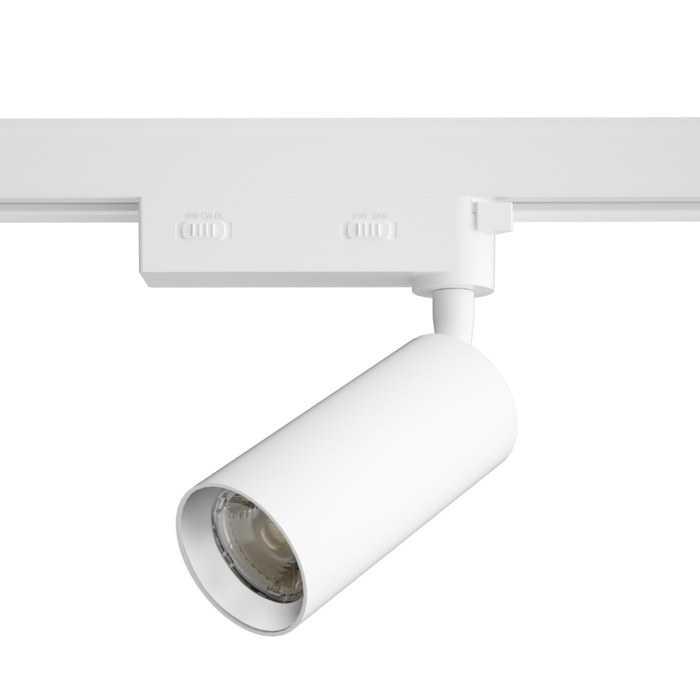

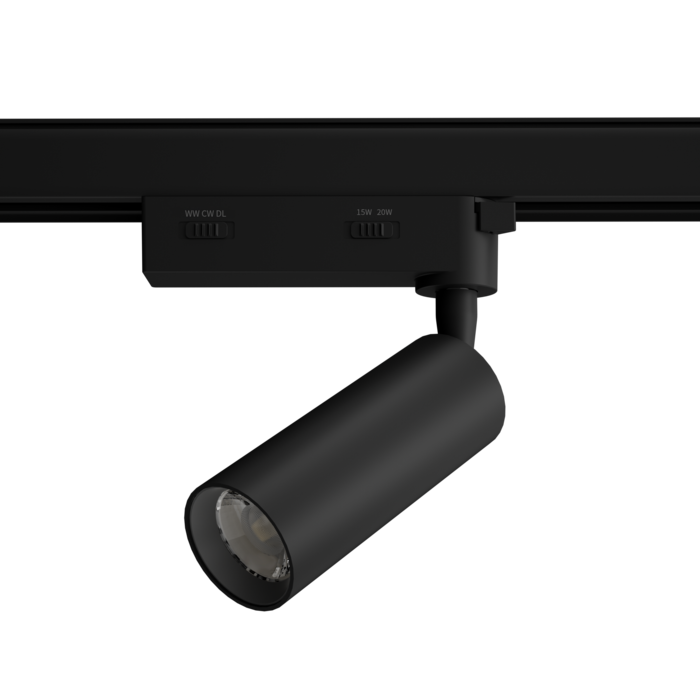

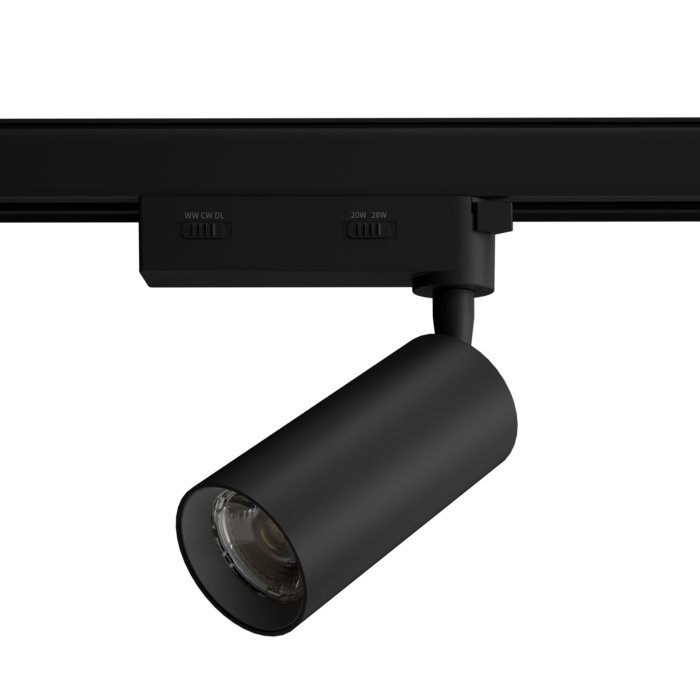

UNITREK SLIMLINE - STR9015/DC

Single circuit, dimmable 15/20/28 watt architectural track spot, with integral driver, selectable power and CCT

Application

Ideal for decorative retail or interior residential spaces

Design Specifications

  • Durable aluminium body profile in a choice of white or black

  • High performance LED optics, CRI >90, beam distribution 40° and selectable CCT 3000K / 4000K / 5700K

  • Integral trailing edge dimmable driver, with flickerCONTROLLED technology

  • Selectable power 10/15, 15/20, 20/28 watt

  • Horizontal optical rotation of 355° and vertical tilt of 90°

  • Single circuit design.

Performance

  • Dimmable - YES
  • Dimmer Type - trailing edge
  •
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5700K

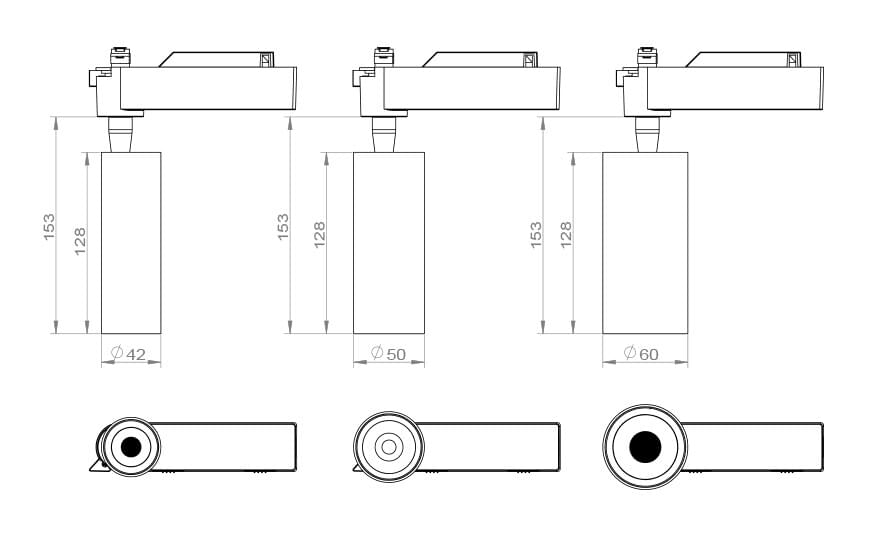

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Multiple Wattage Lumens CCT Body Colour CRI Beam Angle Dimmable Dim Diameter
      		Model No. STR9015/15DC/BK Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 10/15 Lumens 1350/1420/1420 CCT 3000/4000/5700 Body Colour BLACK CRI 90 Beam Angle 40 Dimmable YES Dim 128(H) Diameter 42
      		Model No. STR9015/15DC/WH Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 10/15 Lumens 1350/1420/1420 CCT 3000/4000/5700 Body Colour WHITE CRI 90 Beam Angle 40 Dimmable YES Dim 128(H) Diameter 42
      		Model No. STR9015/20DC/BK Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 15/20 Lumens 1800/1900/1900 CCT 3000/4000/5700 Body Colour BLACK CRI 90 Beam Angle 40 Dimmable YES Dim 128(H) Diameter 50
      		Model No. STR9015/20DC/WH Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 15/20 Lumens 1800/1900/1900 CCT 3000/4000/5700 Body Colour WHITE CRI 90 Beam Angle 40 Dimmable YES Dim 128(H) Diameter 50
      		Model No. STR9015/30DC/BK Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 20/28 Lumens 2520/2660/2660 CCT 3000/4000/5700 Body Colour BLACK CRI 90 Beam Angle 40 Dimmable YES Dim 128(H) Diameter 60
      		Model No. STR9015/30DC/WH Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 20/28 Lumens 2520/2660/2660 CCT 3000/4000/5700 Body Colour WHITE CRI 90 Beam Angle 40 Dimmable YES Dim 128(H) Diameter 60

      Note: Lumens displayed are at the maximum power selection

    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
