• LED TRACK LIGHTS

UNITREK STR3/9017/30TC/DP - 21/30W

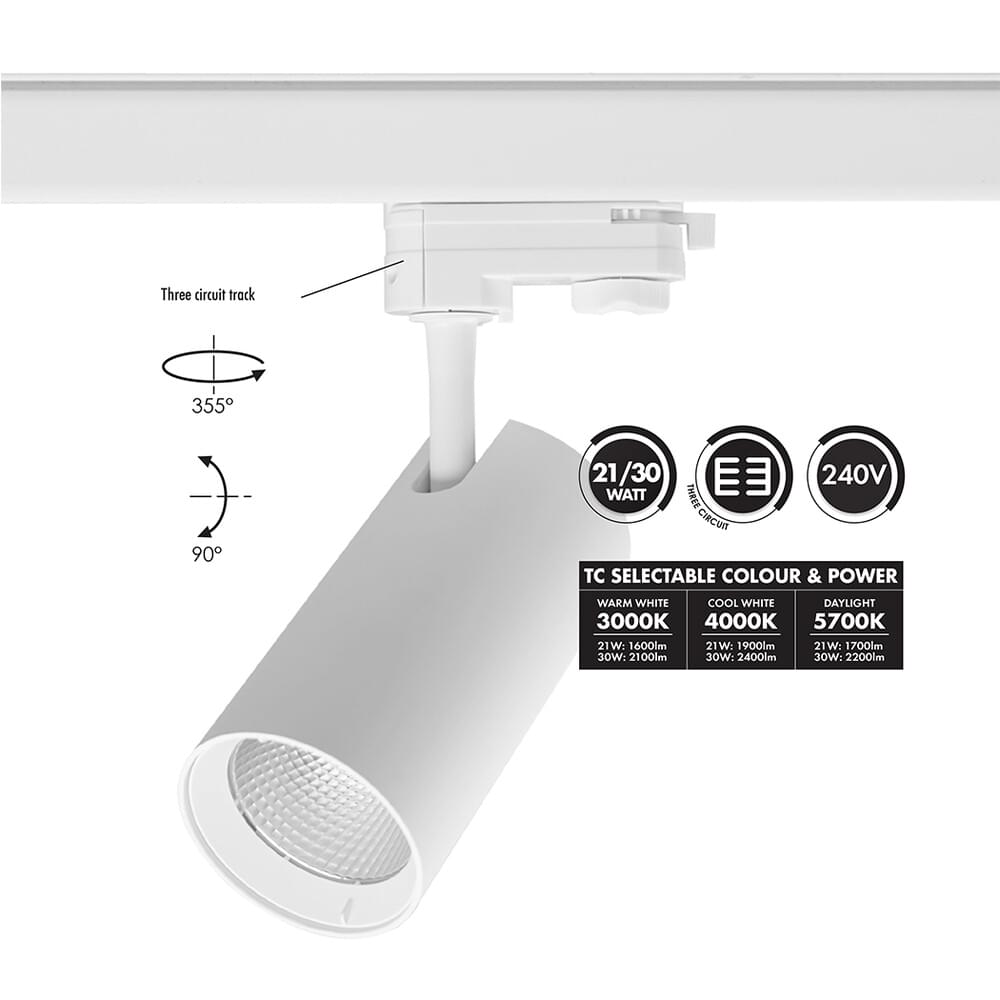

30 watt architectural, three circuit track spot, with selectable power and CCT

Application

Ideal for decorative interior and retail designs

Design Specifications

  • Architectural cylindrical shape, 350° horizontal rotation

  • Durable Polyamide body profile, colour white or black

  • High efficiency LED optics, CRI > 80, selectable CCT 3000/4000/5700K

  • Multi-faceted reflector system, standard beam distribution 40°

  • Optional black or white baffle available

Performance

  • Dimmable - NO
  •
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5700K

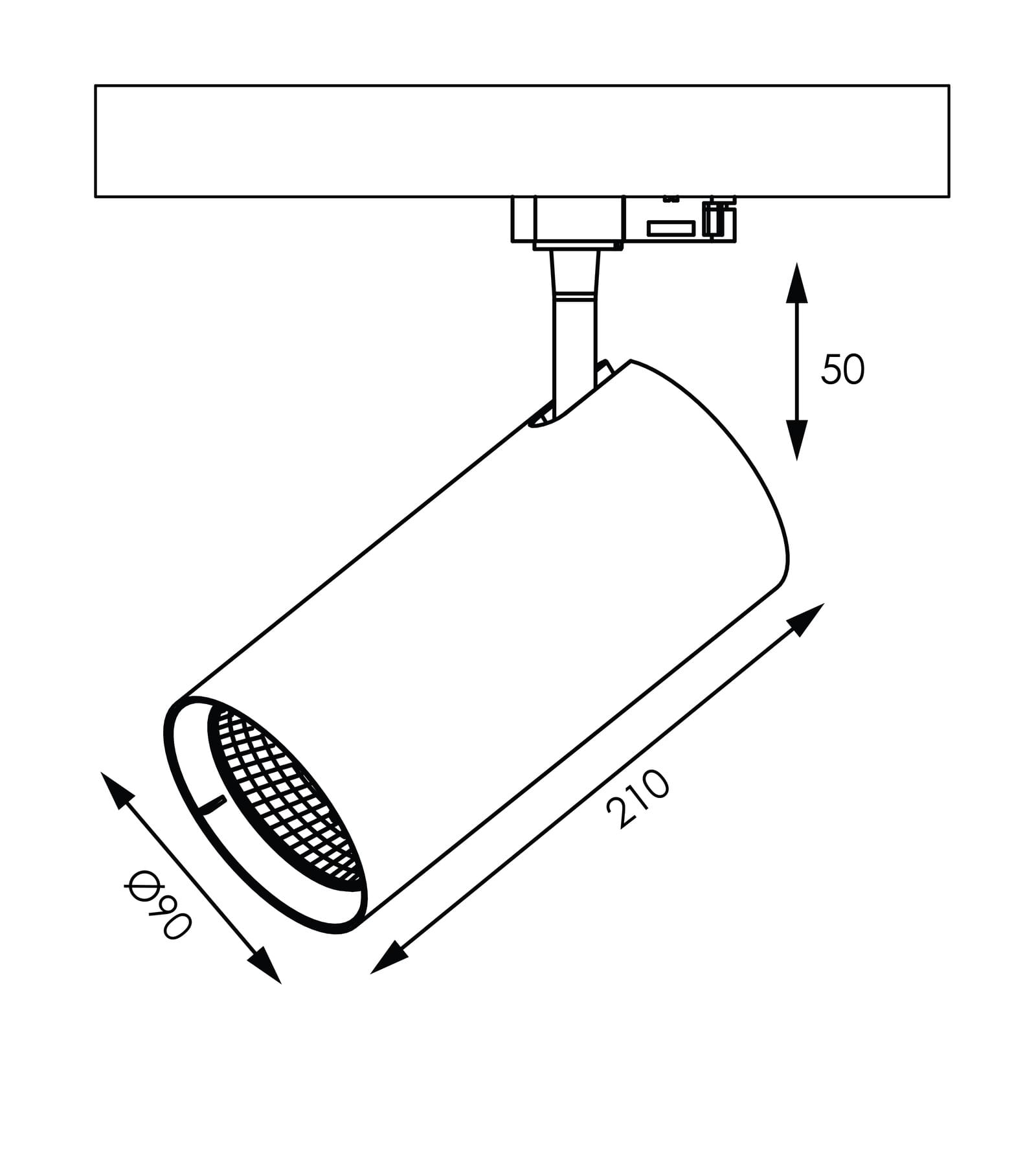

    • Dimensions - Wiring Diagrams
    • Design Options

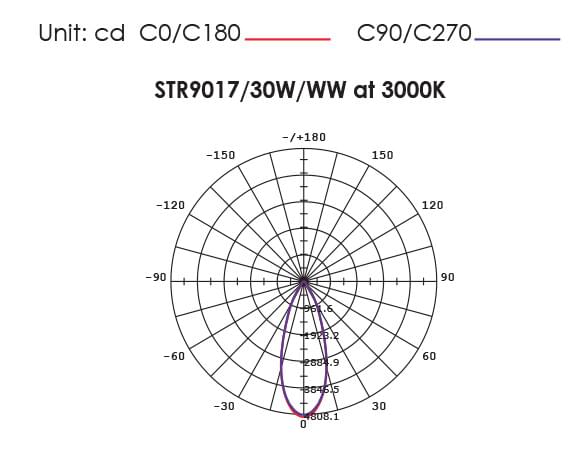

    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Multiple Wattage Lumens CCT Body Colour CRI Beam Angle Dim Diameter
      		Model No. STR3/9017/30TC/DP/WH Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 21/30 Lumens 2100/2400/2200 CCT 3000/4000/5700 Body Colour WHITE CRI 80 Beam Angle 40 Dim 90(W) x 210(H) Diameter 90

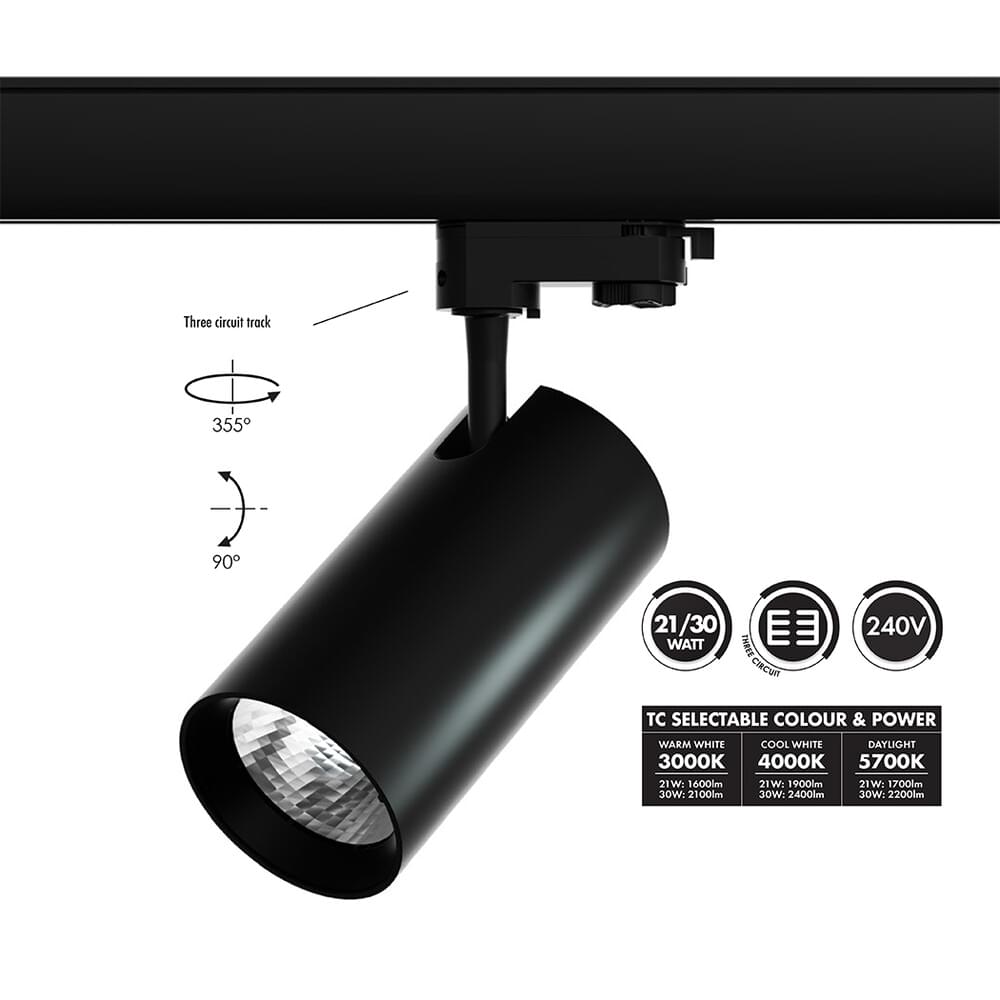

      		Model No. STR3/9017/30TC/DP/BK Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 21/30 Lumens 2100/2400/2200 CCT 3000/4000/5700 Body Colour BLACK CRI 80 Beam Angle 40 Dim 90(W) x 210(H) Diameter 90
      Model No. STR9017/30R60P Add to Enquiry Add Remove Remove Body Colour 60 DEG BEAM INSERT Beam Angle 60

      NOTE: Lumens (lm) are shown at maximum power setting

      NOTE: tracklight systems are designed for horizontal ceiling mount, with the track opening parallel to the floor, for non-raked ceiling installations

    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
    With over 1000 Australian trade partners, finding where to buy SAL products is easy. Search a trade partner nearby
