• LED TRACK LIGHTS

UNITREK STR9017/10TC - 10W

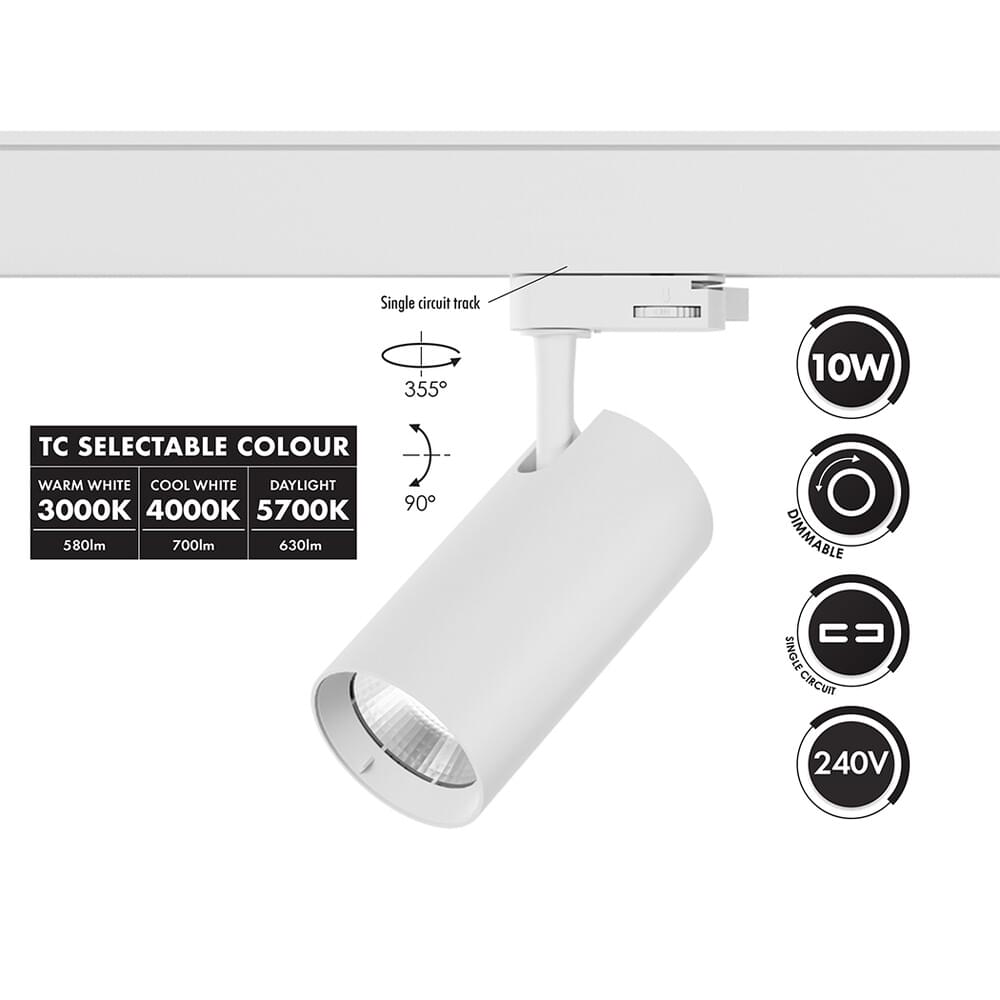

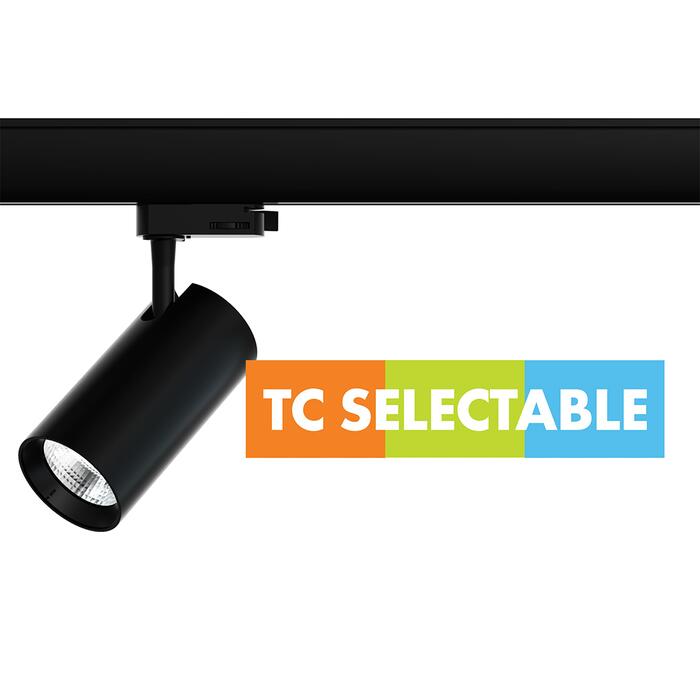

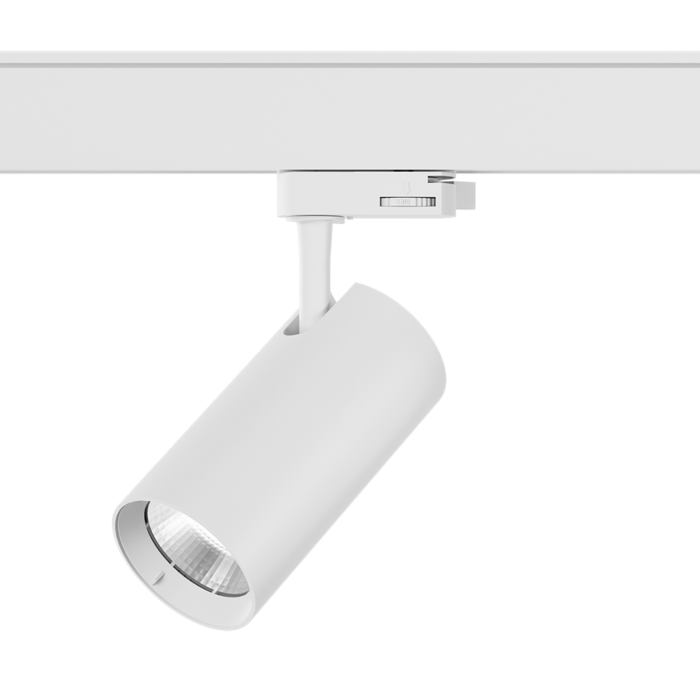

Unitrek single circuit, dimmable 10 watt architectural track spot, with integral driver and selectable CCT

Application

Ideal for decorative interior and retail designs

Design Specifications

  • Architectural cylindrical profile

  • Robust Polyamide body profile, colour matt white or black

  • High efficiency LED optics, CRI > 80, selectable CCT 3000/4000/5700K

  • Multifaceted reflector system, polycarbonate lens, 40 degree beam distribution.

  • 10 watt integral trailing edge dimmable driver, with an ON/OFF switch function conveniently located on the track adaptor.

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5700K
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5700K
  • Dimensions - Wiring Diagrams
  • Design Options

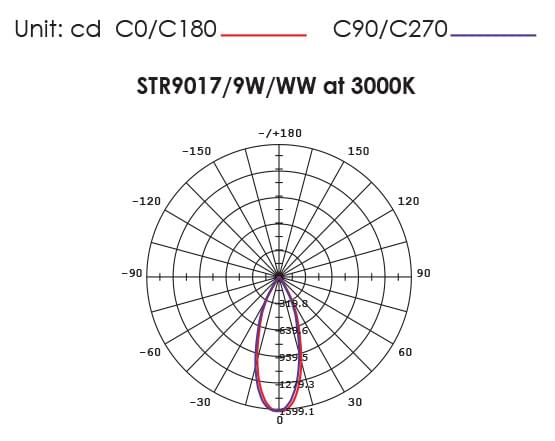

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT Body Colour CRI Beam Angle Dimmable Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.STR9017/10TC/WH Input Voltage240 Power10 Lumens580/700/630 CCT3000/4000/5700 Body ColourWHITE CRI80 Beam Angle40 Dimmable YES Dim60(W) x 125(H) Add to Enquiry Add Remove Remove
    Model No.STR9017/10TC/BK Input Voltage240 Power10 Lumens580/700/630 CCT3000/4000/5700 Body ColourBLACK CRI80 Beam Angle40 Dimmable YES Dim60(W) x 125(H) Add to Enquiry Add Remove Remove
    Model No.STR9017/10RING/BK Input Voltage Power Lumens CCT Body ColourBLACK RING INSERT CRI Beam Angle40 Dimmable Dim Add to Enquiry Add Remove Remove

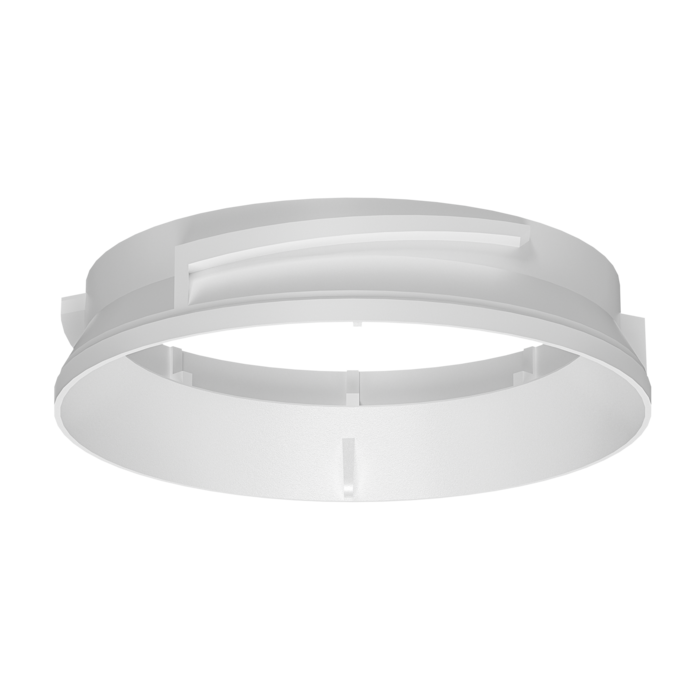

    Model No.STR9017/10RING/WH Input Voltage Power Lumens CCT Body ColourWHITE RING INSERT CRI Beam Angle40 Dimmable Dim Add to Enquiry Add Remove Remove
    Model No.STR9017/10R60P Input Voltage Power Lumens CCT Body Colour60 DEG BEAM INSERT CRI Beam Angle60 Dimmable Dim Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
