• LED TRACK LIGHTS

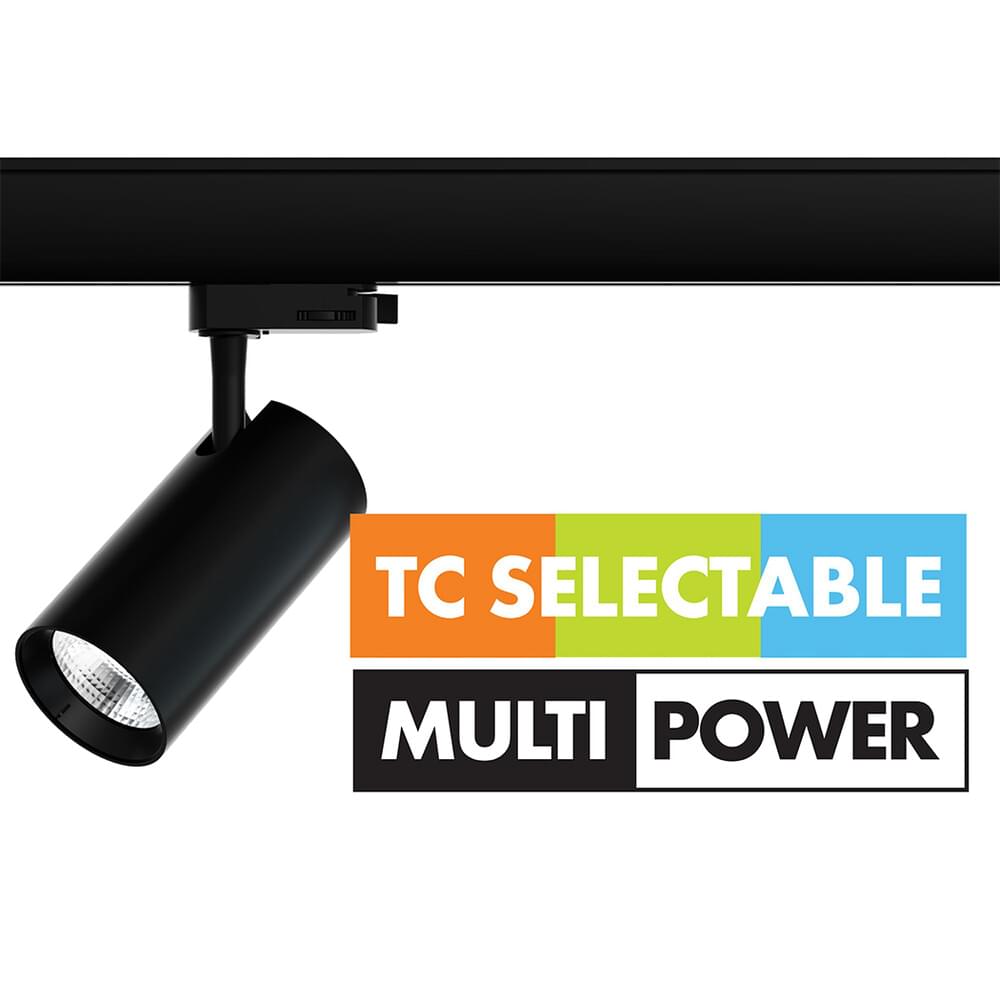

UNITREK STR9017/30TC/DP - 21/30W

Unitrek single circuit, 21/30 watt architectural track spot, with integral dual power driver and selectable CCT

Application

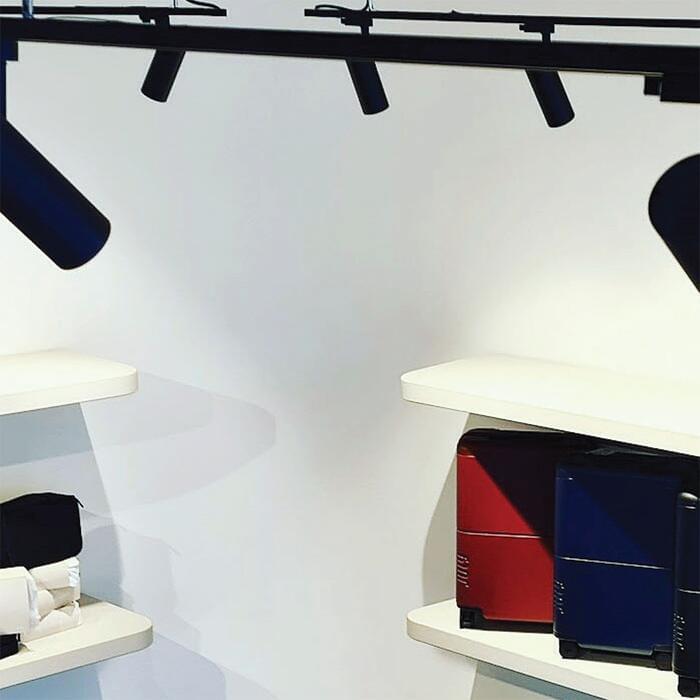

Ideal for decorative interior or residential designs

Design Specifications

  • Architectural cylindrical profile

  • Robust Polyamide body profile, colour matt white or black

  • High efficiency LED optics, CRI > 80, selectable CCT 3000/4000/5700K

  • Multi-faceted reflector system, polycarbonate lens, 40 degree beam distribution

  • 21/30W selectable power, integral, non-dimmable LED driver, with an ON/OFF switch function conveniently located on the track adaptor.

Performance

  • Dimmable - NO
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5700K
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5700K
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Multiple Wattage Lumens CCT Body Colour CRI Beam Angle Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.STR9017/30TC/DP/WH Input Voltage240 Multiple Wattage21/30 Lumens2100/2400/2200 CCT3000/4000/5700 Body ColourWHITE CRI80 Beam Angle40 Dim90(W) x 210(H) Add to Enquiry Add Remove Remove
    Model No.STR9017/30TC/DP/BK Input Voltage240 Multiple Wattage21/30 Lumens2100/2400/2200 CCT3000/4000/5700 Body ColourBLACK CRI80 Beam Angle40 Dim90(W) x 210(H) Add to Enquiry Add Remove Remove
    Model No.STR9017/30RING/BK Input Voltage Multiple Wattage Lumens CCT Body ColourBLACK RING INSERT CRI Beam Angle40 Dim Add to Enquiry Add Remove Remove
    Model No.STR9017/30RING/WH Input Voltage Multiple Wattage Lumens CCT Body ColourWHITE RING INSERT CRI Beam Angle40 Dim Add to Enquiry Add Remove Remove
    Model No.STR9017/30R60P Input Voltage Multiple Wattage Lumens CCT Body Colour60 DEG BEAM INSERT CRI Beam Angle60 Dim Add to Enquiry Add Remove Remove

    NOTE: Lumens (lm) are shown at maximum power setting
