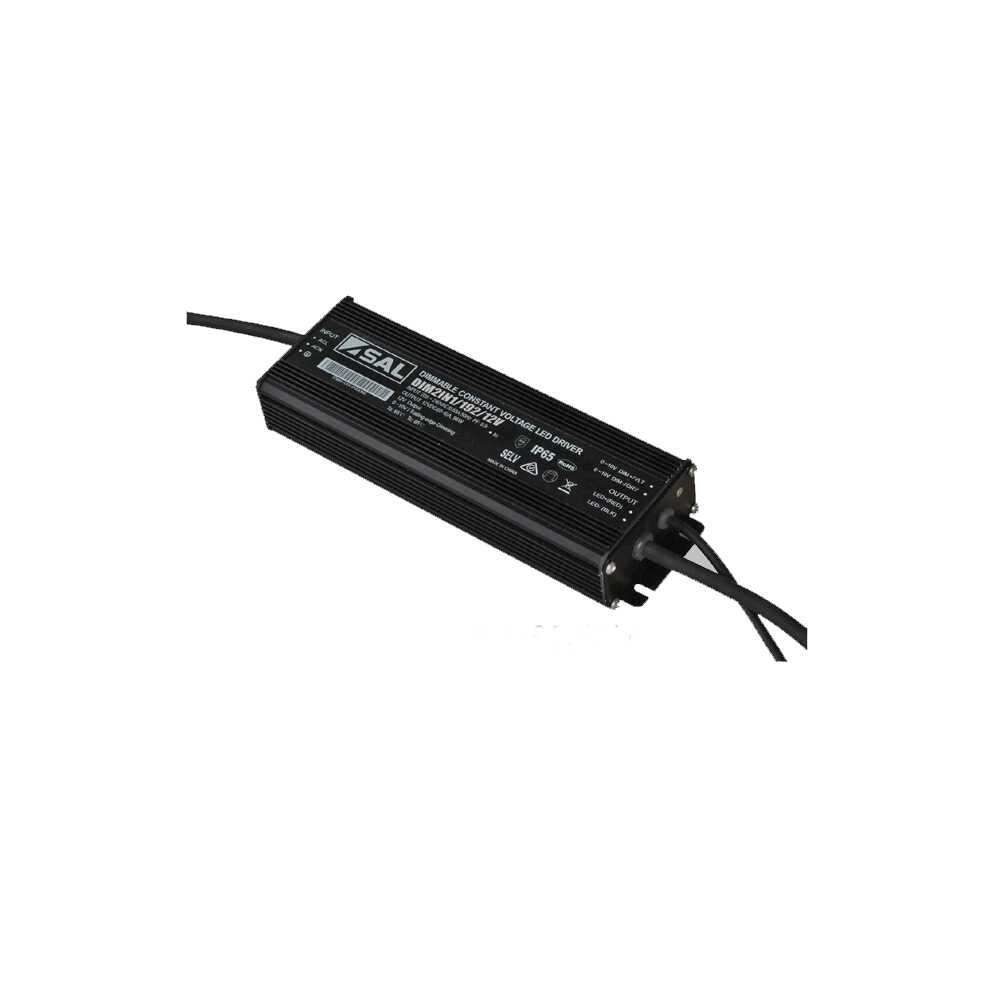

DIM 2IN1 - 12V/24V 96/192W

Australian approved IP65 dimmable 12 / 24V constant voltage LED power supply

Application

Reliable constant voltage control for use with LED strip and constant voltage dimming circuits

Design Specifications

  • Trailing edge and 1-10V dimming combined

  • Independent compact design, safe no load operation and overload, short circuit protection, overheating protection

  • Output options of 12V or 24V DC

  • SELV and EMC compliant, 1.2m flex & plug

  • Recommended SAL 1-10V dimming controller; SDF30, recommended SAL trailing edge dimmers; SDD350UM, SDA450U/LED, SDD400U

  • Minimum load - DIM 2IN1 96/12/24V = 10W, DIM 2IN1 192/12/24V = 20W, electrical class I, Do Not Cover

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge, 1-10V
  • Dimensions - Wiring Diagrams
  • Design Options
    Dimmer Trailing Edge YES
    Dimmer 1-10V YES
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Output Voltage Power Power Factor Dimmable Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

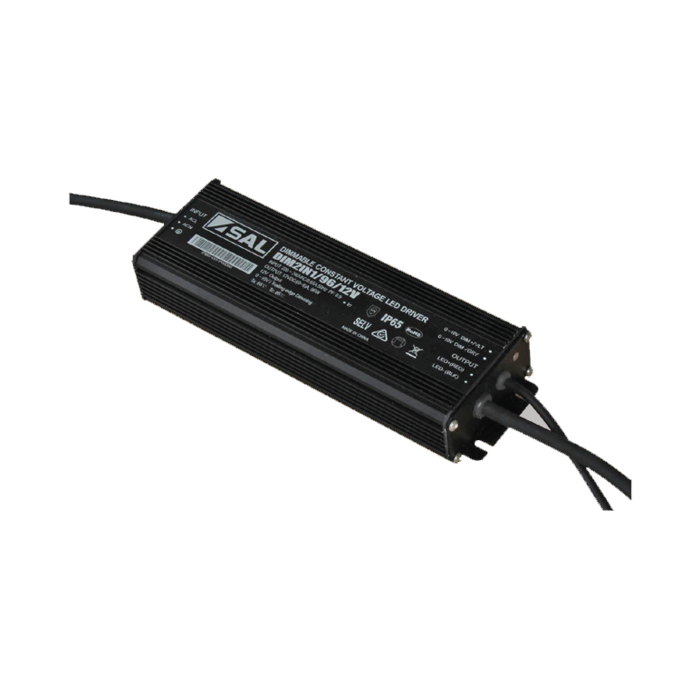

    Model No.DIM2IN1/96/12V Input Voltage240 Output Voltage12 Power96 Power Factor0.9 Dimmable YES Dim222(L) x 73(W) x 38(H) Add to Enquiry Add Remove Remove
    Model No.DIM2IN1/96/24V Input Voltage240 Output Voltage24 Power96 Power Factor0.9 Dimmable YES Dim222(L) x 73(W) x 38(H) Add to Enquiry Add Remove Remove

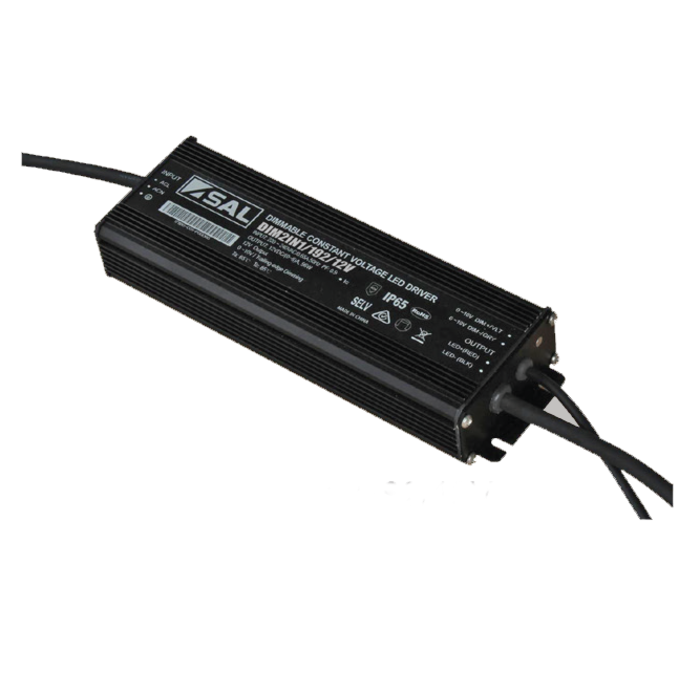

    Model No.DIM2IN1/192/12V Input Voltage240 Output Voltage12 Power192 Power Factor0.9 Dimmable YES Dim226(L) x 96(W) x 39(H) Add to Enquiry Add Remove Remove
