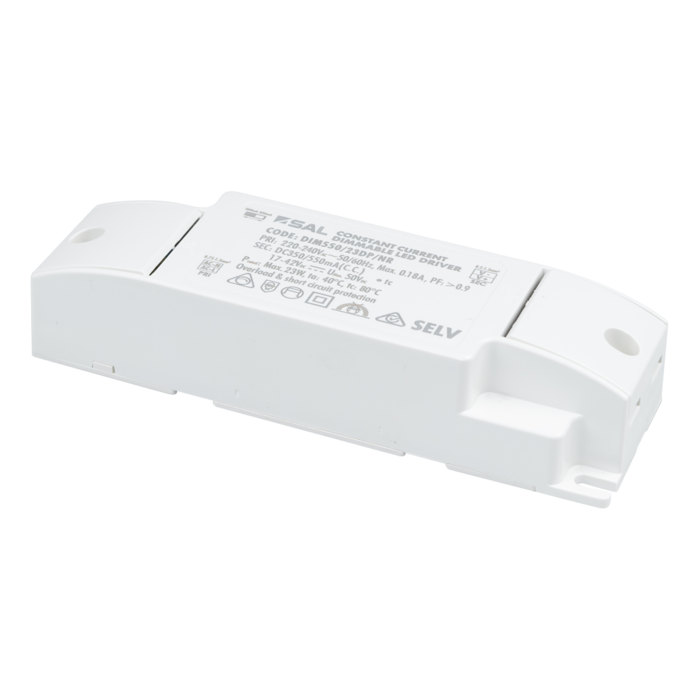

DIM 550DP/NR - 23W 350/550mA

Australian approved dimmable constant current LED driver with selectable power.

Application

The perfect choice for constant current electronic lighting circuits

Design Specifications

  • Compact design, SELV, electrical class II, EMC compliant

  • Safe no load, overload, short circuit protection

  • Onboard selectable output current 350/550mA

  • Dimmable with a trailing edge dimmer, delivering flickerCONTROLLED driver performance.

  • Recommended SAL trailing edge dimmers SDD400U, SDA450U/LED, SDD350UM, SDD300BTAM

  • Electrical class II, Do Not Cover

Performance

  • Dimmable - YES
  • Dimmer Type - TRAILING EDGE
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Frequency Output Current Power Power Factor Dimmable Dim
      		Model No. DIM550/23DP/NR Add to Enquiry Add Remove Remove Input Voltage 240 Frequency 50 Output Current 550 Power 23 Power Factor 0.9 Dimmable YES Dim 140(L) x 42(W) x 29(H)
