• DRIVERS

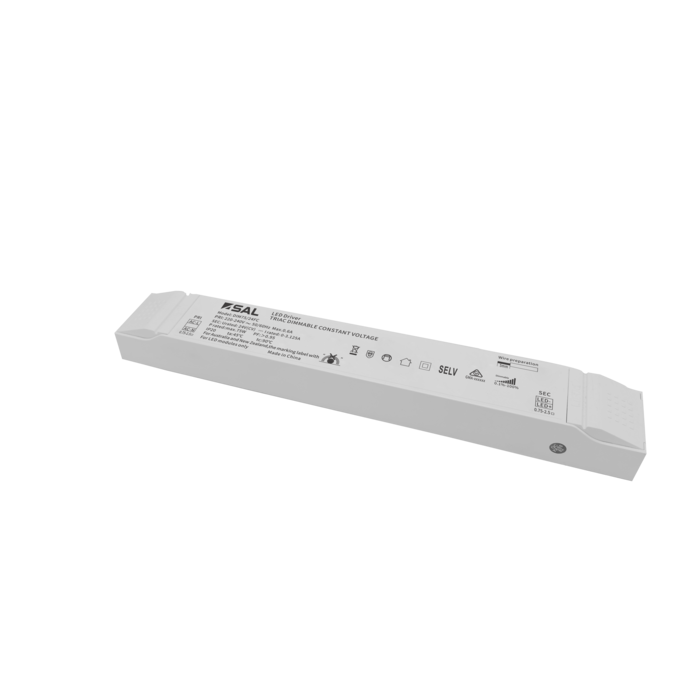

DIM 75/150 - 24V 75/150W

Australian approved, trailing edge dimmable constant voltage, power supply

Application

Reliable constant voltage trailing edge dimmable driver 75 / 150 watt

Design Specifications

  • Choice of 75 watt / 24V, 150 watt / 24V

  • Trailing edge dimming control

  • Overload and short circuit protection

  • SELV and EMC compliant, fixed terminal termination

  • flickerCONTROLLED technology

  • Electrical class II, Do Not Cover.

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing or Leading Edge

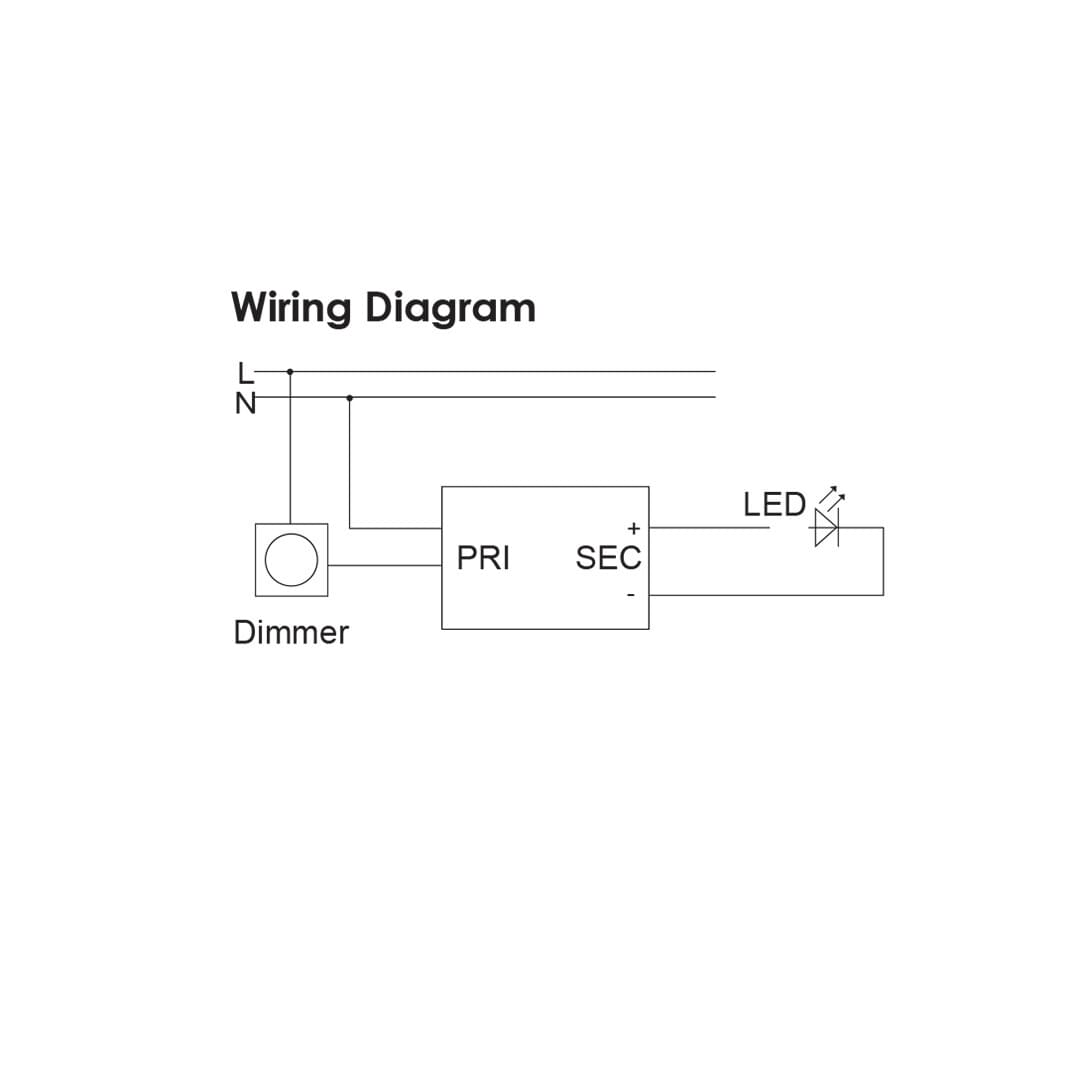

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Output Voltage Power Power Factor Dimmable Dim
      		Model No. DIM75/24V/FC Add to Enquiry Add Remove Remove Input Voltage 240 Output Voltage 24 Power 75 Power Factor 0.95 Dimmable YES Dim 300(L) x 43(W) x 31(H)
      		Model No. DIM150/24V/FC Add to Enquiry Add Remove Remove Input Voltage 240 Output Voltage 24 Power 150 Power Factor 0.95 Dimmable YES Dim 361(L) x 43(W) x 31(H)
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
