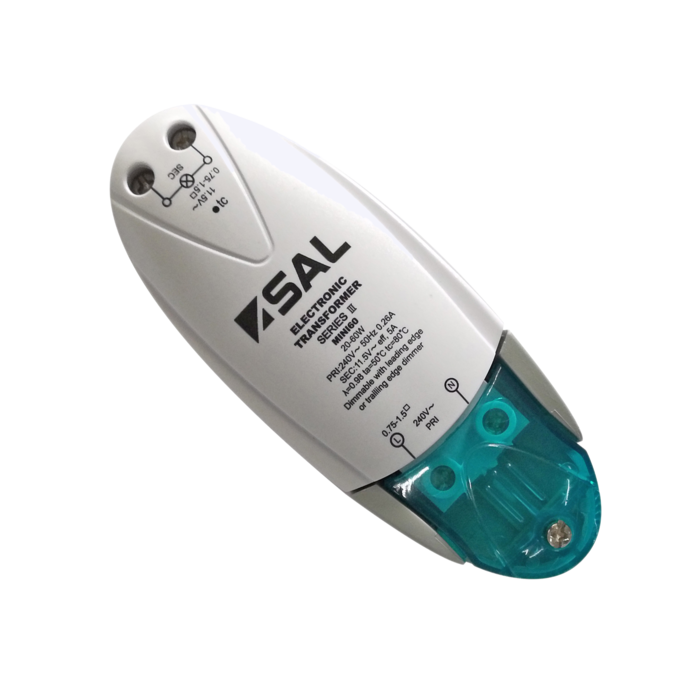

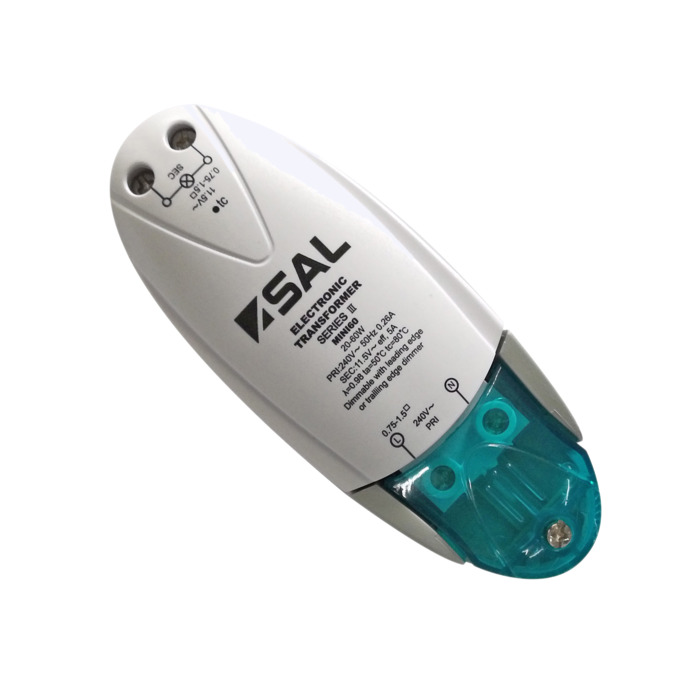

MINI 60 - 12V AC-AC

Australian approved electronic transformer 12V AC-AC

Application

Dimmable trailing or leading edge transformer for SELV lighting equipment

Design Specifications

  • Overload and short circuit protection
  • Overheating protection
  • Safe no load operation

  • Dimmable with compatible trailing edge or leading edge dimmers

  • Hardwired termination

  • Minimum / Max loads -
    LED 1 watt min / 20 watt max,
    HALOGEN 20 watt min / 60 watt max,
    Note: minimum load compatibility with a dimming device, may be subject to the inclusion of a load correction capacitor/s in the circuit.
    Electrical class II, Do Not Cover

Performance

  • Dimmable - YES
  • Dimmer Type - TRAILING OR LEADING EDGE

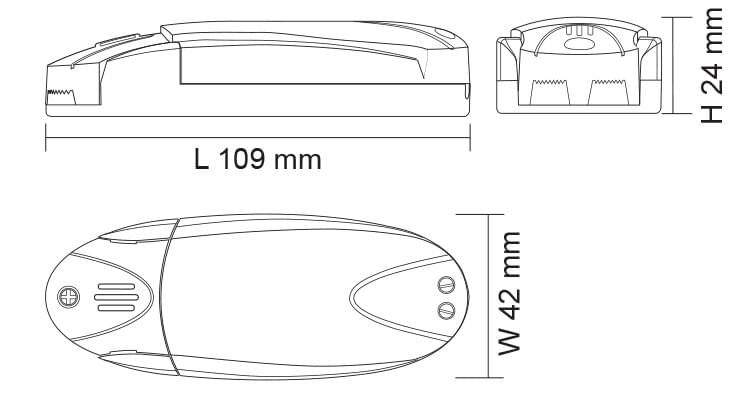

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Frequency Output Voltage (V/AC) Power Dimmable Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.MINI60 Input Voltage240 Frequency50 Output Voltage (V/AC)11.5 Power60 Dimmable YES Dim109(L) x 43(W) x 24(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
