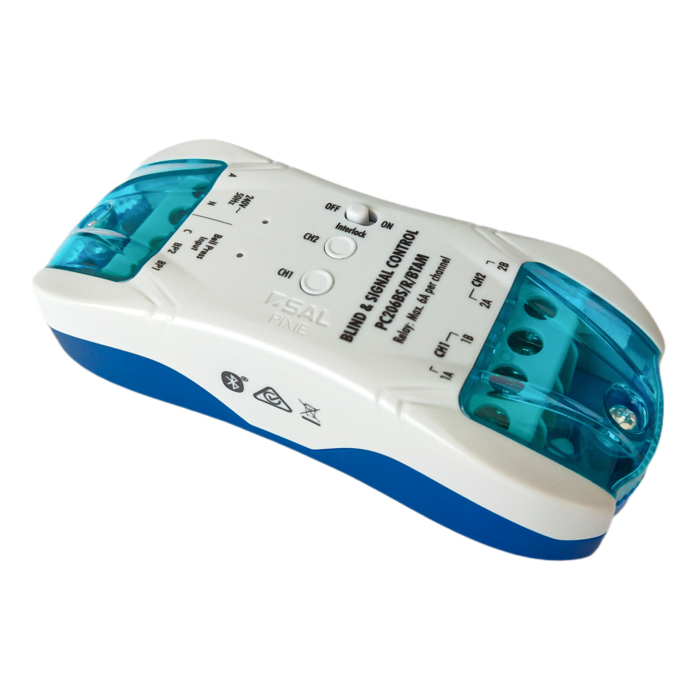

PIXIE BLIND & SIGNAL CONTROL - PC206BS/R/BTAM

PIXIE MASTER DEVICE - SMART HOME Blind and signal control for diverse applications

Application

Designed for interior blind/curtain control, garage door control or other applications requiring a dry contact signal.

Design Specifications

  • Compact design profile

  • Double insulation

  • Two channel relays to create multiple dry contact signal outputs.

  • 6A per channel.

  • Dual LED indicators to display the individual channel operating status. Integral CH1 and CH2 control buttons for easy commissioning.

  • Interlock functions available for traditional roller motor control.

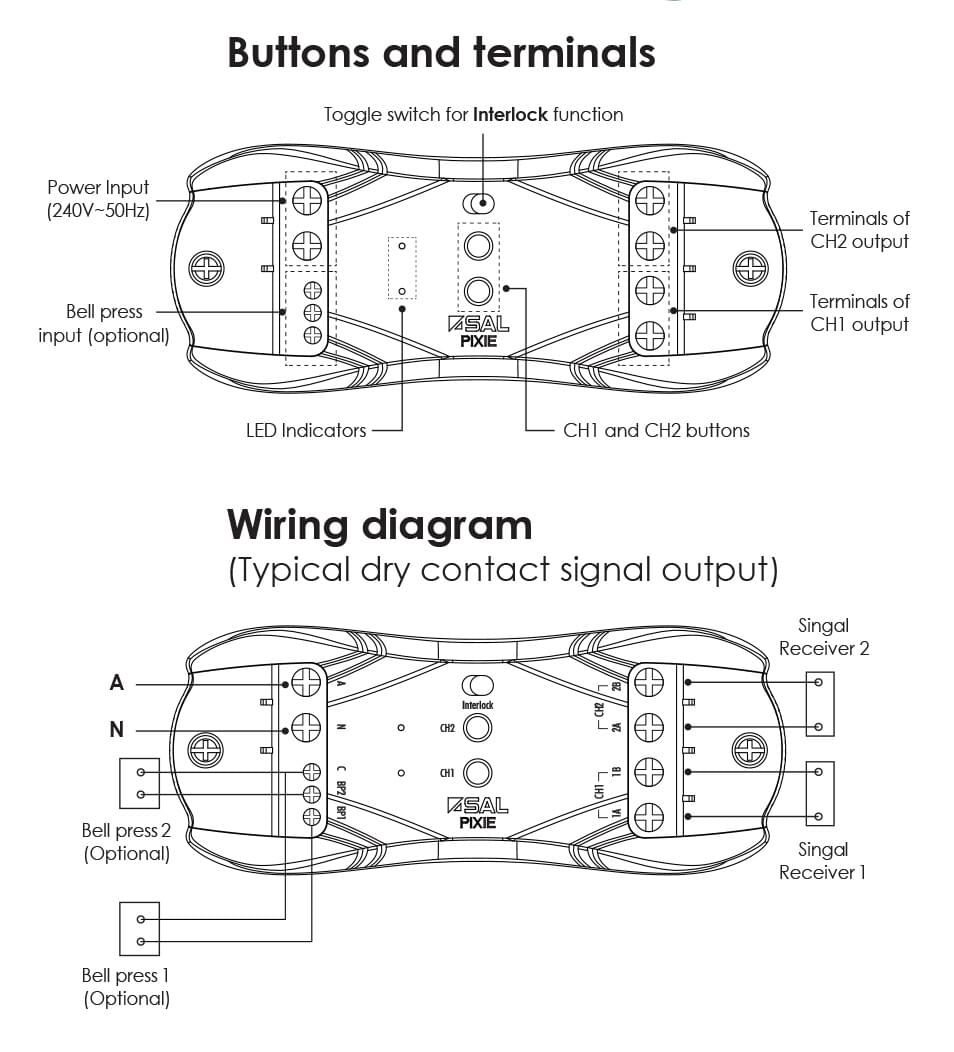

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Frequency Dim
      		Model No. PC206BS/R/BTAM Add to Enquiry Add Remove Remove Input Voltage 240 Frequency 50 Dim 110(L) x 40(W) x 26(H)
