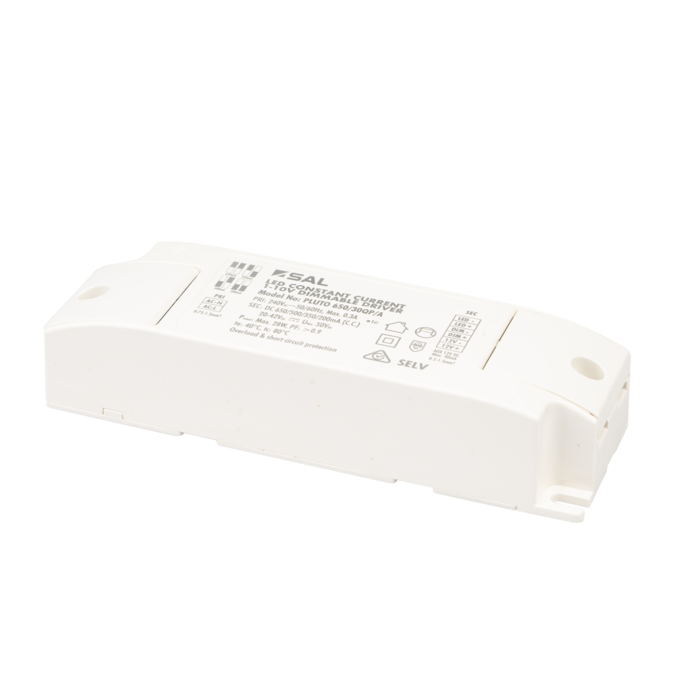

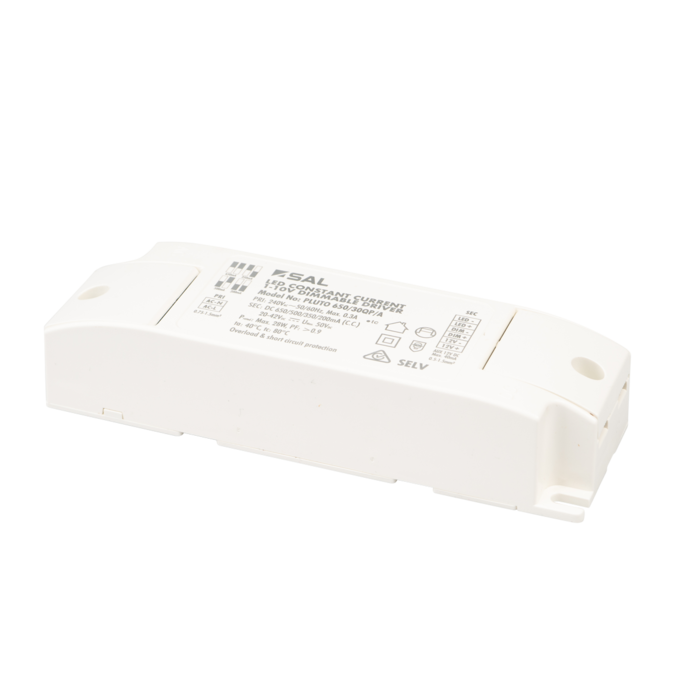

PLUTO 650 QP - 28W 200/650mA

Australian approved 1-10V dimmable constant current LED driver with selectable output

Application

The perfect choice for constant current electronic lighting circuits

Design Specifications

  • SELV and EMC compliant, safe no load operation

  • Compact design profile

  • Overload and short circuit protection

  • Dimmable 1-10V, dimming range 10%~100%

  • Selectable secondary output range:
    650/500/350/200mA (PLUTO 650/30QP/A),
    1150/1000/850/700mA (PLUTO 1150/60QP/A)

  • Auxiliary 12V DC power source (maximum sink current 40mA), Electrical class II, Do Not Cover.

Performance

  • Dimmable - YES
  • Dimmer Type - 1-10V
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Frequency Output Current Power Power Factor Dimmable Dim
      		Model No. PLUTO 650/30QP/A Add to Enquiry Add Remove Remove Input Voltage 240 Frequency 50 Output Current 650 Power 30 Power Factor 0.9 Dimmable YES Dim 140(L) x 46(W) x 30(H)
