• DRIVERS

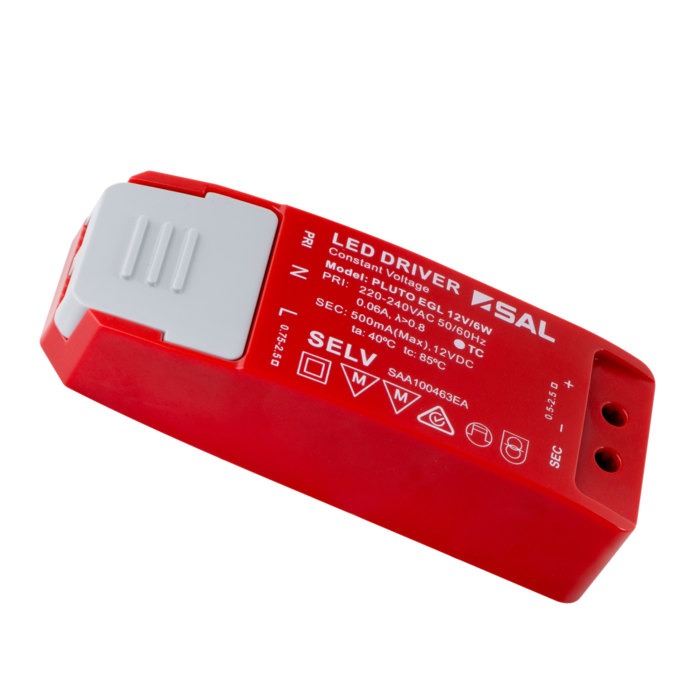

PLUTO EGL - 12V / 6W

Australian approved constant voltage LED power supply, 6 watt

Application

Independent compact design with captive terminal screws, ideal for retrofit and maintenance low wattage lighting requirements

Design Specifications

  • SELV and EMC compliant

  • Safe no load operation, non-dimmable

  • Overload and short circuit protection

  • Hard wired termination design

  • Electrical class II, Do Not Cover

  • Minimum load 1 watt

Performance

  • Dimmable - NO

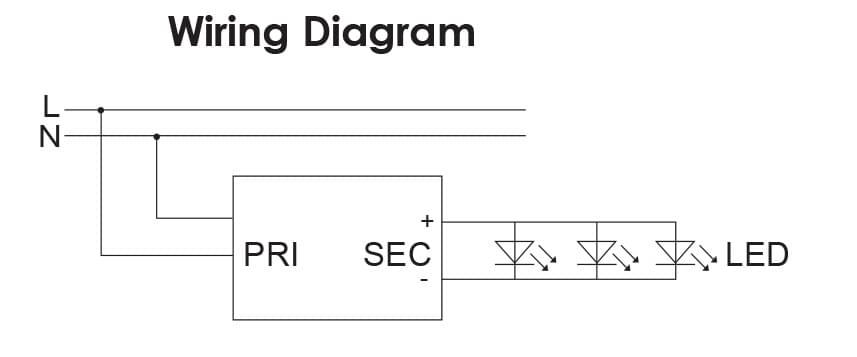

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Frequency Output Voltage Power Power Factor Dimmable Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.PLUTO EGL 12V/6W Input Voltage240 Frequency50 Output Voltage12 Power6 Power Factor0.8 Dimmable NO Dim99(L) x 39(W) x 23(H) Add to Enquiry Add Remove Remove
