• DRIVERS

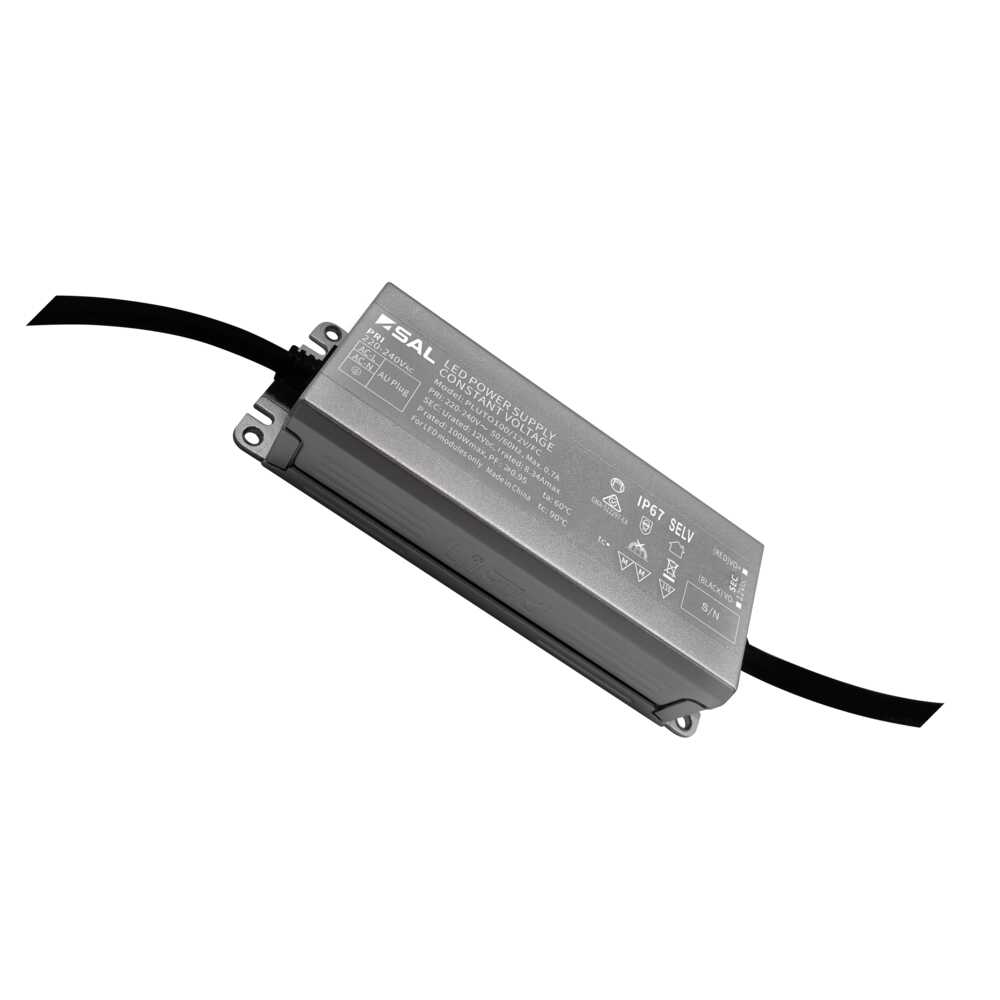

PLUTO 100FC - 12/24V 100W

Australian approved constant voltage flickerCONTROLLED driver, IP67

Application

An ideal choice for LED strips, LED Neon or exterior lighting requirements

Design Specifications

  • SELV and EMC compliant

  • Safe no load operation, power factor 0.9, non-dimmable

  • Overload and short circuit protection, flickerCONTROLLED performance

  • 1.2m flex and plug fitted for easy installation, output (secondary) end is provided with rubber fly leads

  • Durable metal casing IP67

  • Electrical class I, Do Not Cover.
    Minimum load  100/12V  1 watt, 100/24V 1 watt  Max. LED Driver Number on MCB C type 16A (for driver >100W) = 23 (12V), 10 (24V)

Performance

  • Dimmable - NO
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Frequency Output Voltage Power Power Factor Dimmable Dim
      		Model No. PLUTO 100/12V/FC Add to Enquiry Add Remove Remove Input Voltage 240 Frequency 50 Output Voltage 12 Power 100 Power Factor 0.95 Dimmable NO Dim 170(L) x 61(W) x 34(H)
      		Model No. PLUTO 100/24V/FC Add to Enquiry Add Remove Remove Input Voltage 240 Frequency 50 Output Voltage 24 Power 100 Power Factor 0.95 Dimmable NO Dim 170(L) x 61(W) x 34(H)
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
