• DRIVERS

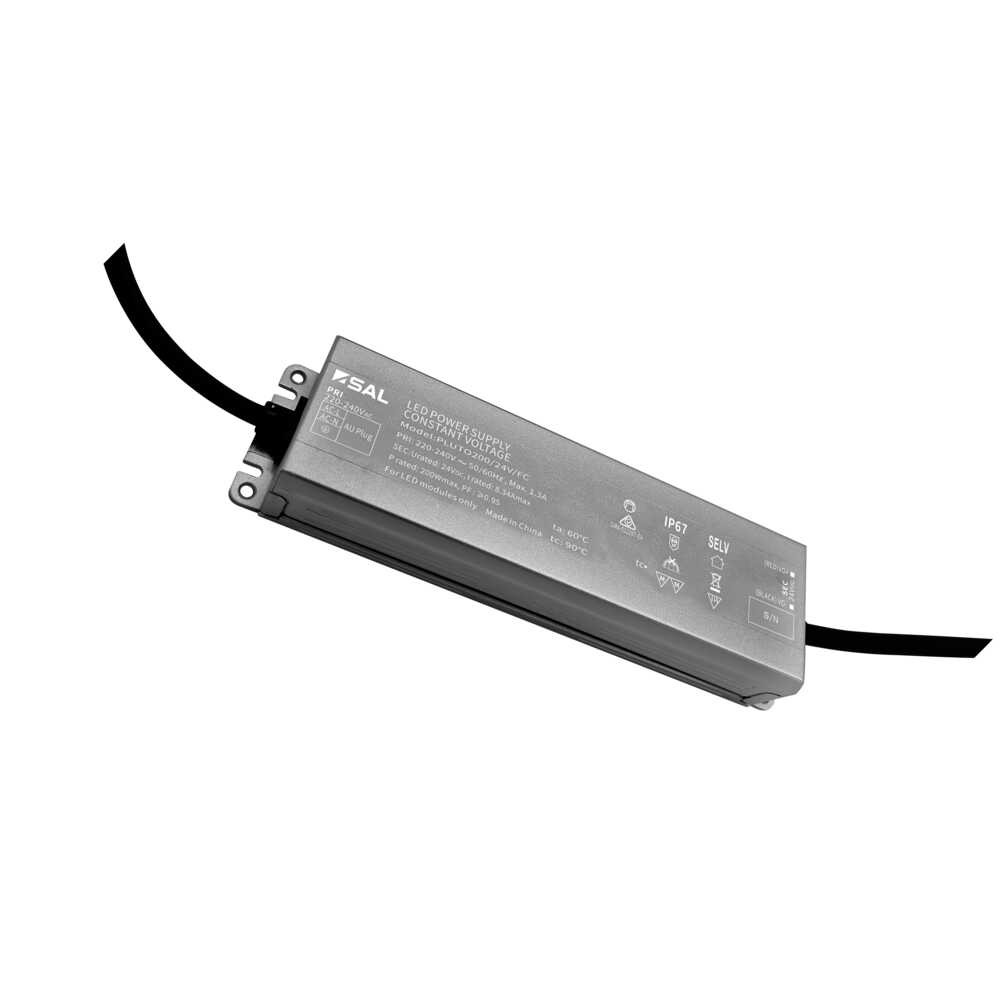

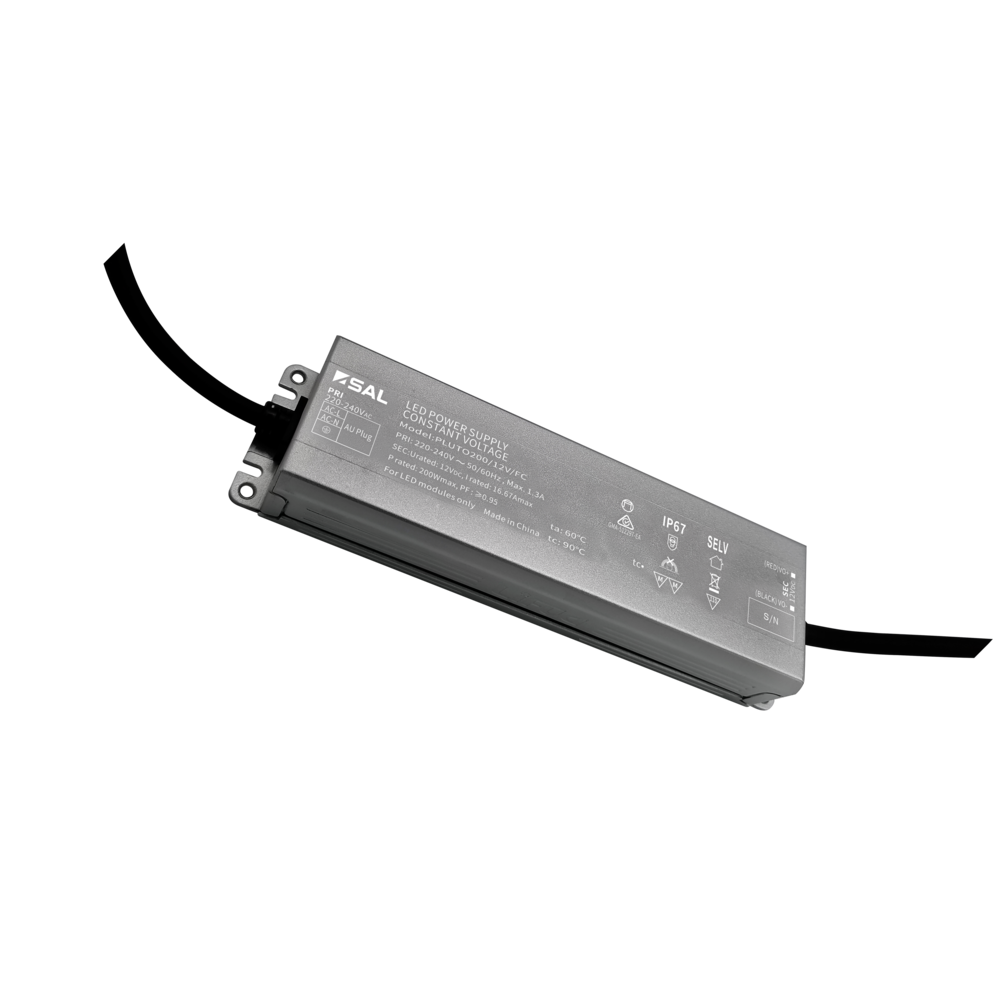

PLUTO 200FC - 12/24V 200W

Australian approved constant voltage flickerCONTROLLED LED drivers, IP67

Application

An ideal choice for LED strips, LED Neon or inground lighting requirements

Design Specifications

  • SELV and EMC compliant

  • Safe no load operation, power factor 0.95, non-dimmable

  • Overload and short circuit protection, flickerCONTROLLED performance

  • 1.2 m flex and plug fitted for easy installation, output (secondary) end is provided with rubber fly leads

  • Durable metal casing IP67

  • Electrical class I, Do Not Cover,
    Minimum load 200/12V  1 watt, 200/24V 1 watt, Max. LED Driver Number on MCB C type 16A (for driver >100W)  = 10 (12V), 15 (24V)

Performance

  • Dimmable - NO
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Frequency Output Voltage Power Power Factor Dimmable Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.PLUTO 200/12V/FC Input Voltage240 Frequency50 Output Voltage12 Power200 Power Factor0.95 Dimmable NO Dim227(L) x 61(W) x 34(H) Add to Enquiry Add Remove Remove
    Model No.PLUTO 200/24V/FC Input Voltage240 Frequency50 Output Voltage24 Power200 Power Factor0.95 Dimmable NO Dim170(L) x 61(W) x 34(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
