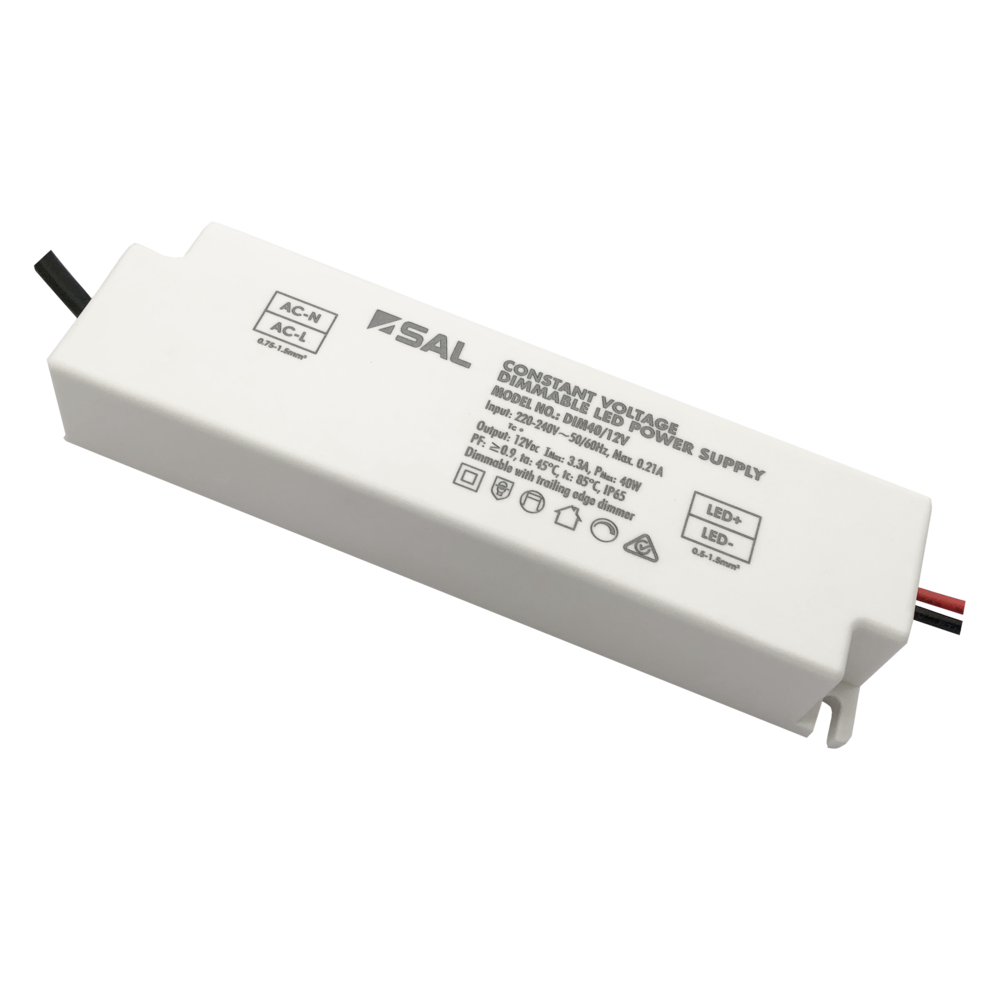

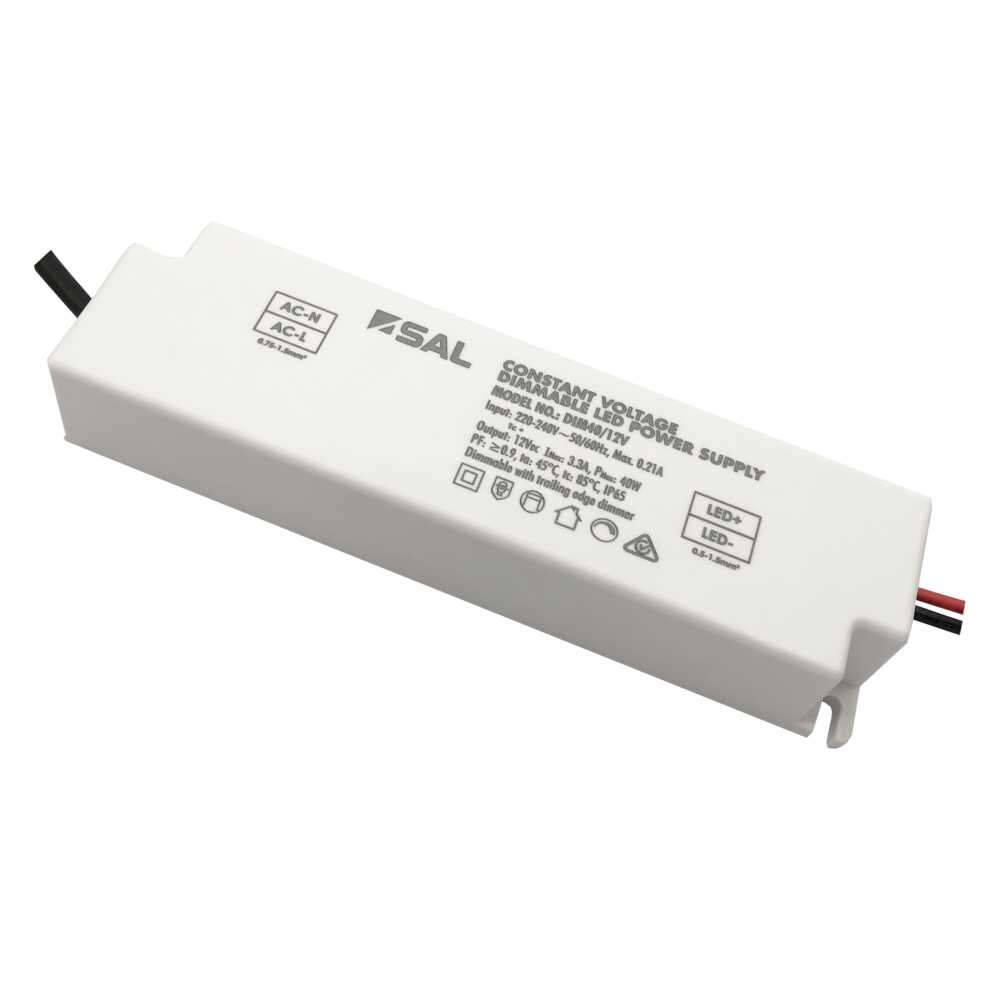

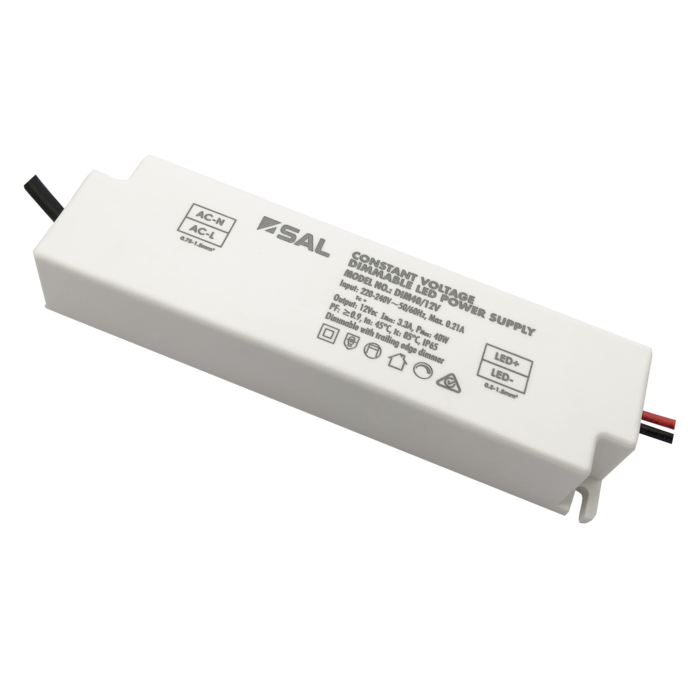

DIM40 - 12V 40W

Australian approved IP65 dimmable 12V constant voltage LED power supply

Application

Suitable for LED strip, trailing edge dimming models

Design Specifications

  • SELV and EMC compliant

  • Safe no load operation, 40 watt, minimum load 5 watt, PF >0.9, output 12V

  • Overload and short circuit protection

  • 1.2 m flex & 2 pin plug fitted (DIM40W), 1.2 m flex & 2 pin plug fitted, secondary output fly leads

  • Recommended SAL trailing edge dimmers; SDD350UM, SDD400U, SDA450U/LED

  • Electrical class II, Do Not Cover

Performance

  • Dimmable - YES
  • Dimmer Type - TRAILING EDGE

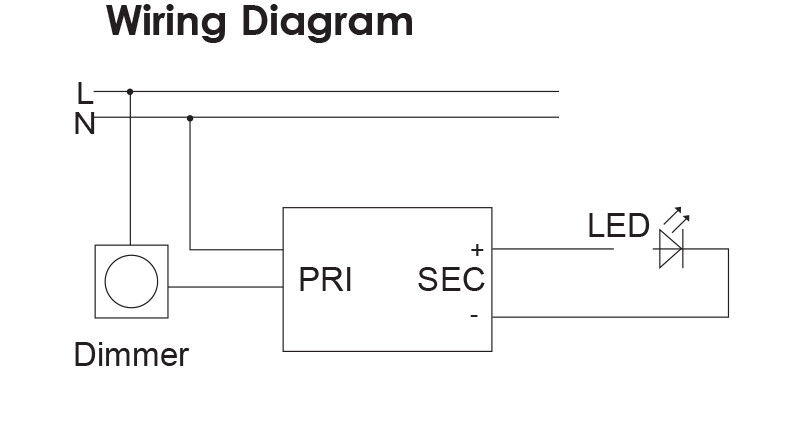

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Frequency Output Voltage Power Power Factor Dimmable Dim
      		Model No. DIM40/12V Add to Enquiry Add Remove Remove Input Voltage 240 Frequency 50 Output Voltage 12 Power 40 Power Factor 0.9 Dimmable YES Dim 155(L) x 43(W) x 26(H)
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
