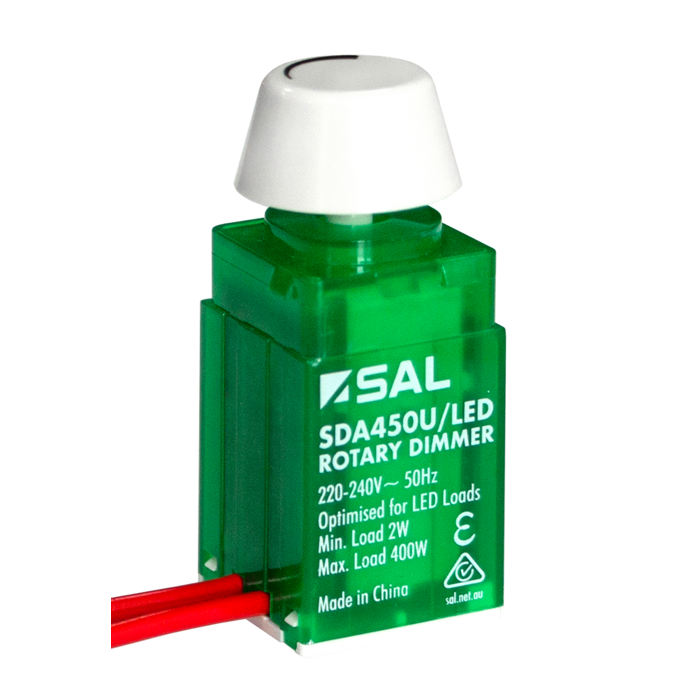

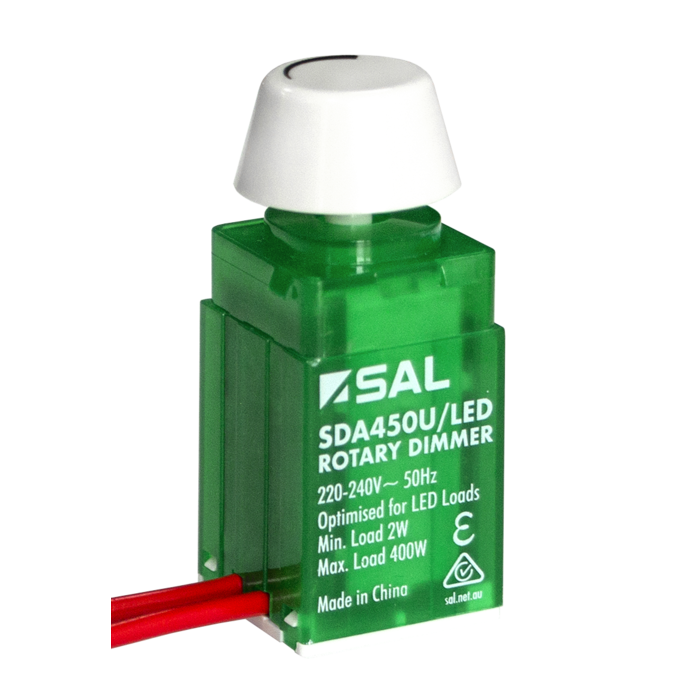

ANALOGUE DIMMER SDA450U/LED

Multi-function analogue dimmer with soft start technology, optimised for LED loads

Application

Residential and commercial lighting control requirements

Design Specifications

  • Multi-function trailing-edge analogue lighting load dimmer,
    with soft start technology

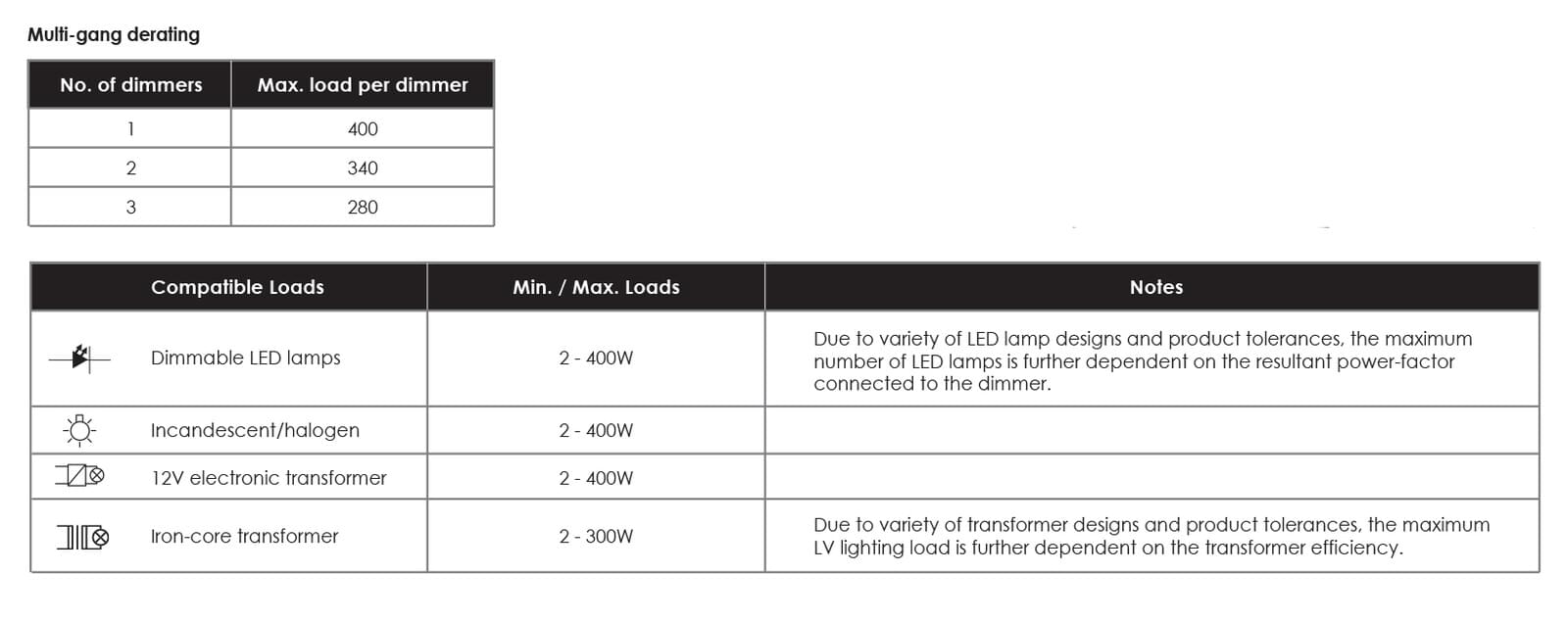

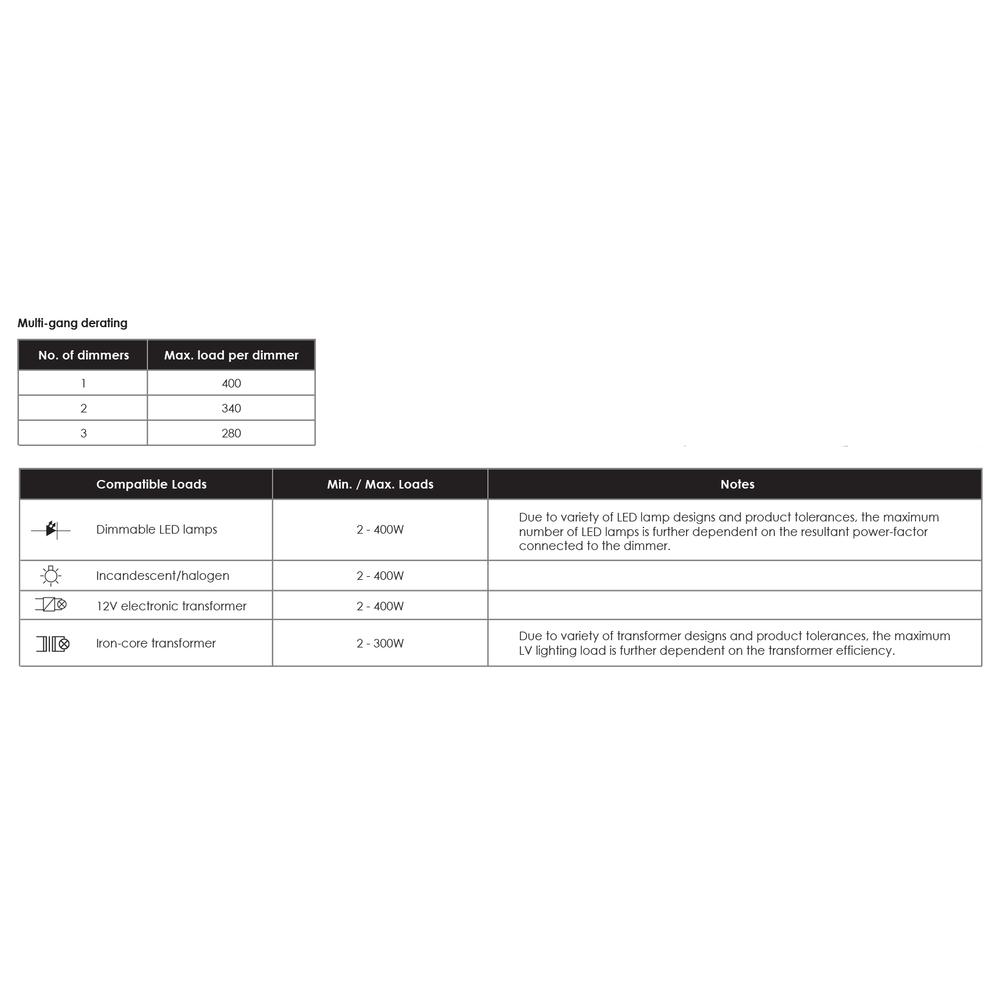

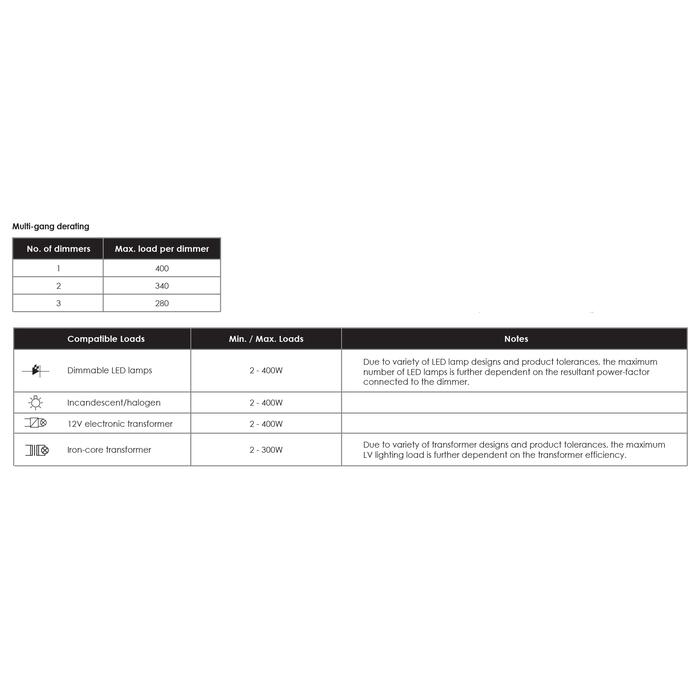

  • 240V, maximum load up to 400W LED, minimum 2W, no neutral required, supplementary ON/OFF switch control required.

  • Fits most popular switch plates, including the comprehensive range of PIXIE AMBIENCE electrical (switch plate) accessories

  • Designed with over-heating protection,
    compliant with AS/NZS 60669 2.1

  • Adjustable minimum DIM mech setting, utilizing the (manual) DIM dial rotation setting. For lighting loads with selectable half power options, always DIM using 100% selected power.

  • Designed with thermal wind-back for overload
    and over-temperature protection

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge

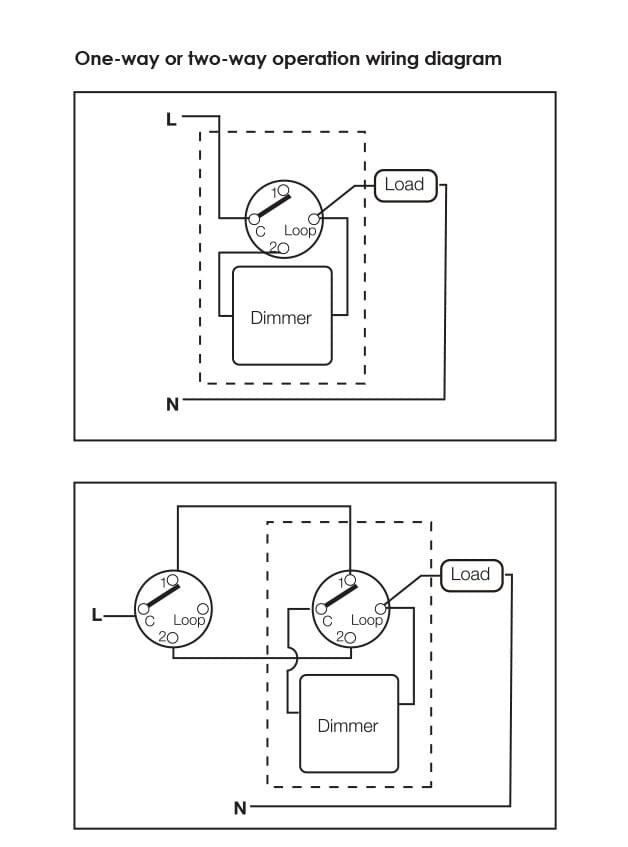

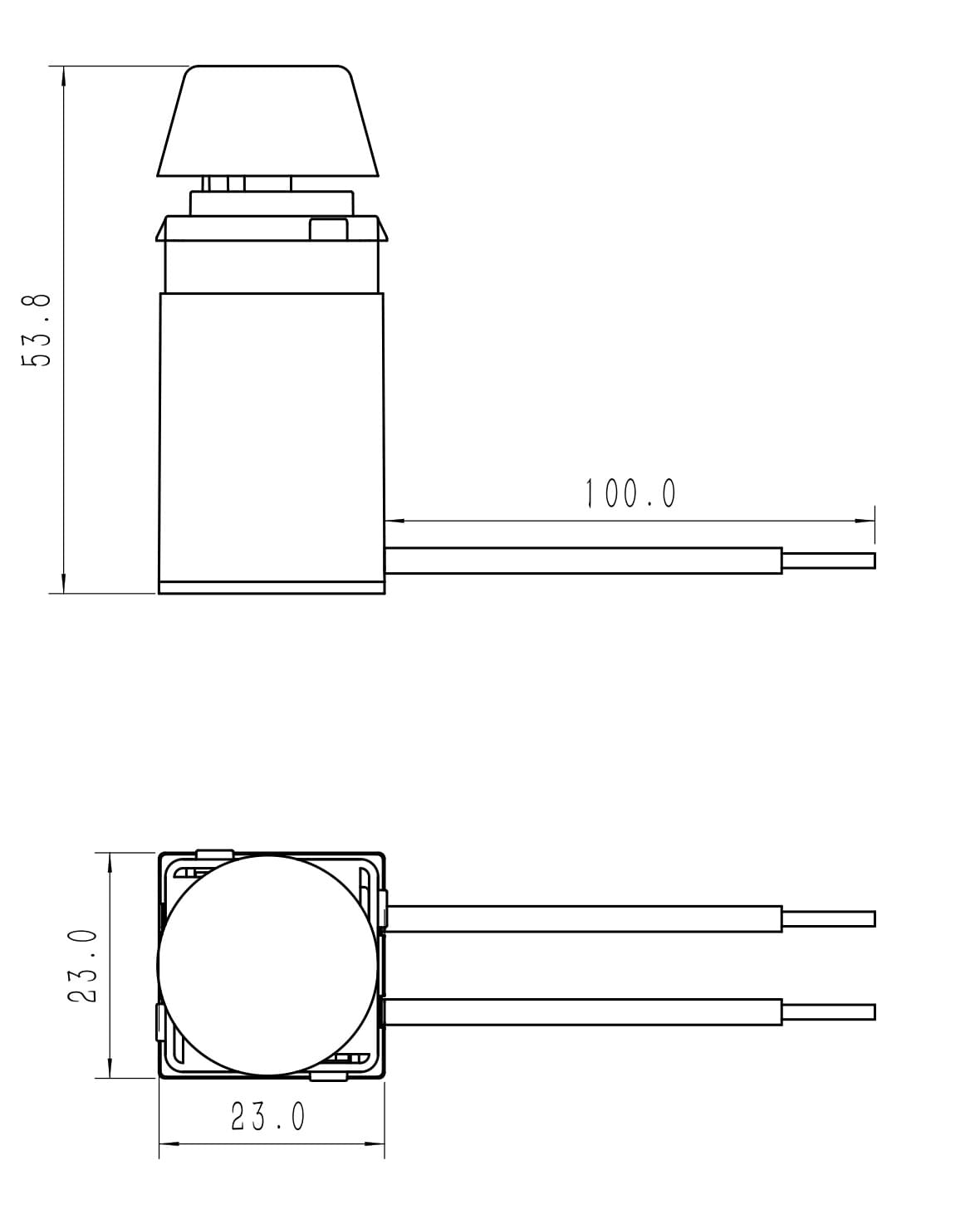

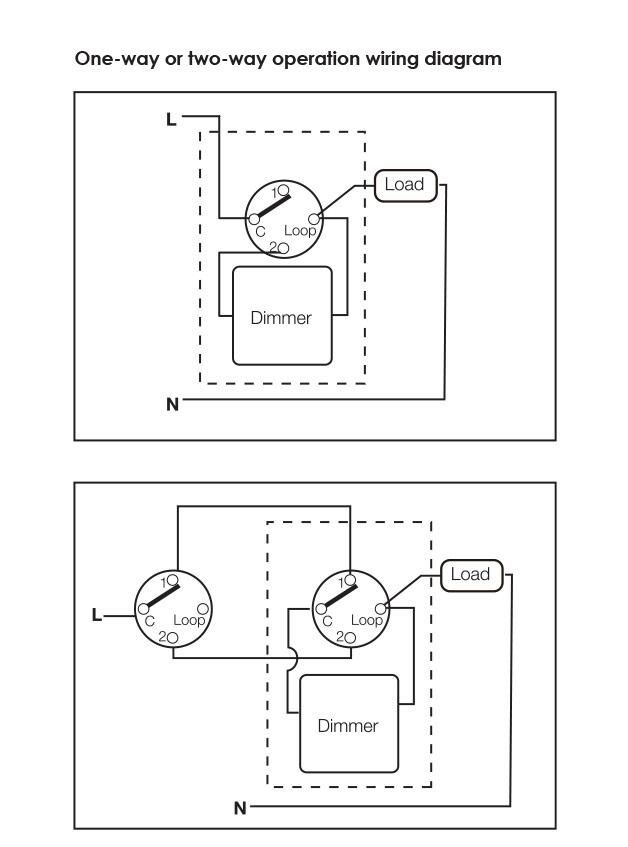

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Dimmable Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SDA450U/LED Input Voltage240 Dimmable YES Dim53(L) x 23(W) x 23(H) Body ColourGREEN Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
