• ELECTRICAL ACCESSORIES

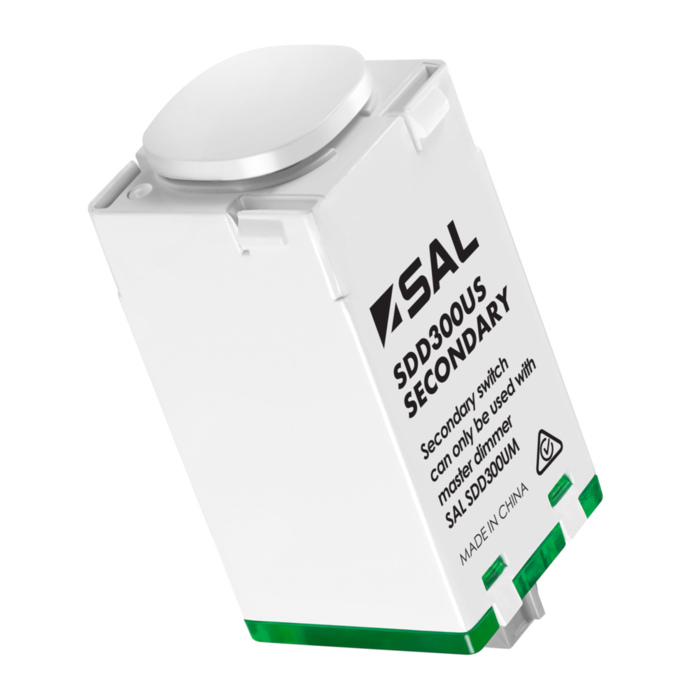

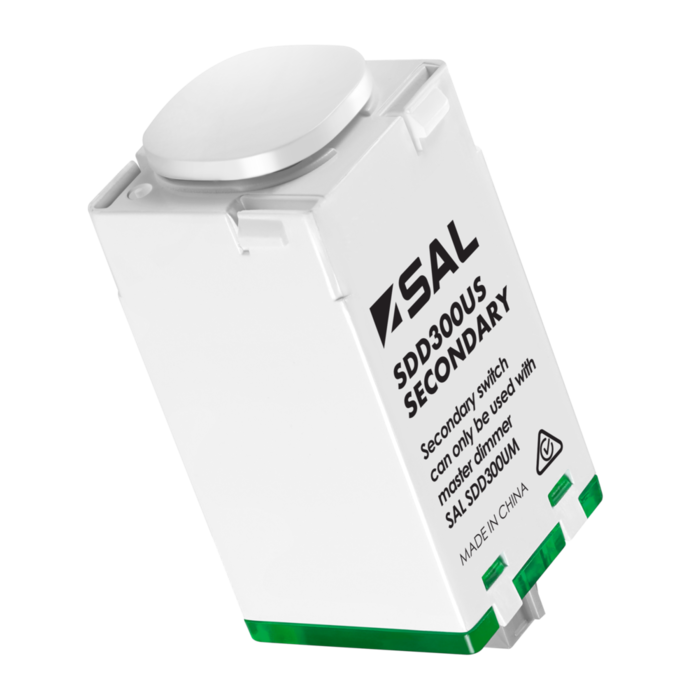

DIGITAL DIMMER - SECONDARY SDD300US

SECONDARY- universal digital dimmer

Application

Smart lighting controls for residential and commercial applications

Design Specifications

  • Push button control trailing or leading edge digital dimming via the MASTER connection

  • Multiple-location dimming by connecting SDD350UM with any number of secondary dimmers SDD300US can be achieved.
    NOTE: the total length of the remote wire (>0.5mm2) used to interconnect all of the SDD300US should not exceed 50 metres.

  • Fits most popular switch plates

  • Overheating and over current protection, full short circuit protection

  • Programmable minimum brightness level

  • Compliant to AS/NZS60669.2.1

Performance

  • Dimmable - YES
  • Dimmer Type - Secondary switch dimming by SDD350UM only

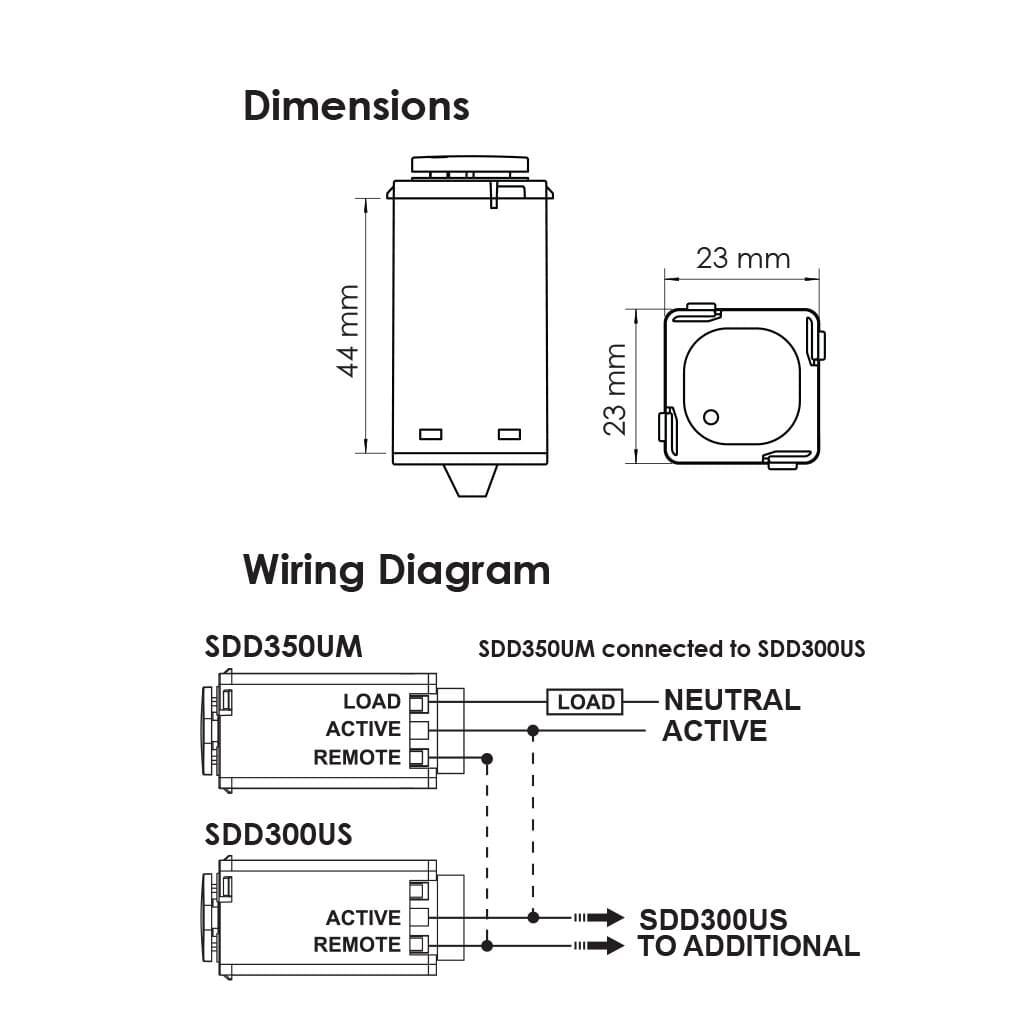

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Dim Body Colour
      		Model No. SDD300US Add to Enquiry Add Remove Remove Input Voltage 240 Power 300 Dim 44(L) x 23(W) x 23(H) Body Colour WHITE

      Minimum load - 5 watt

    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
