• ELECTRICAL ACCESSORIES

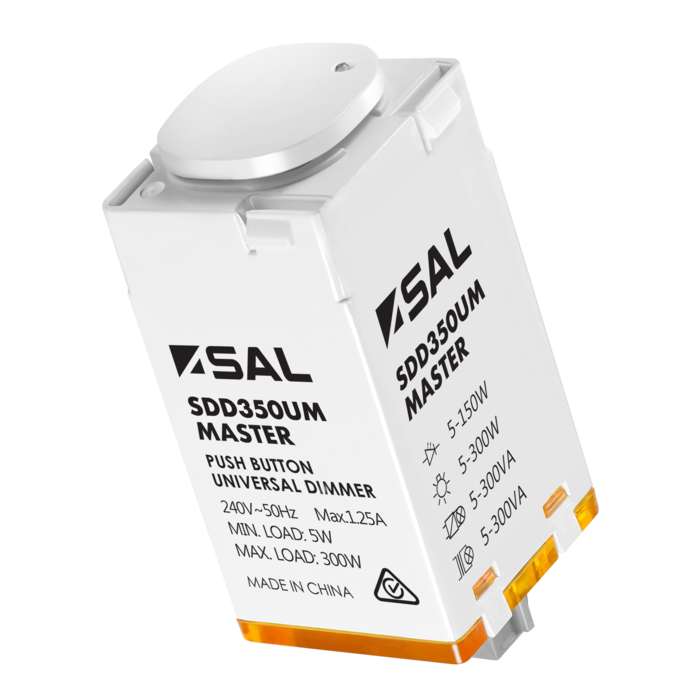

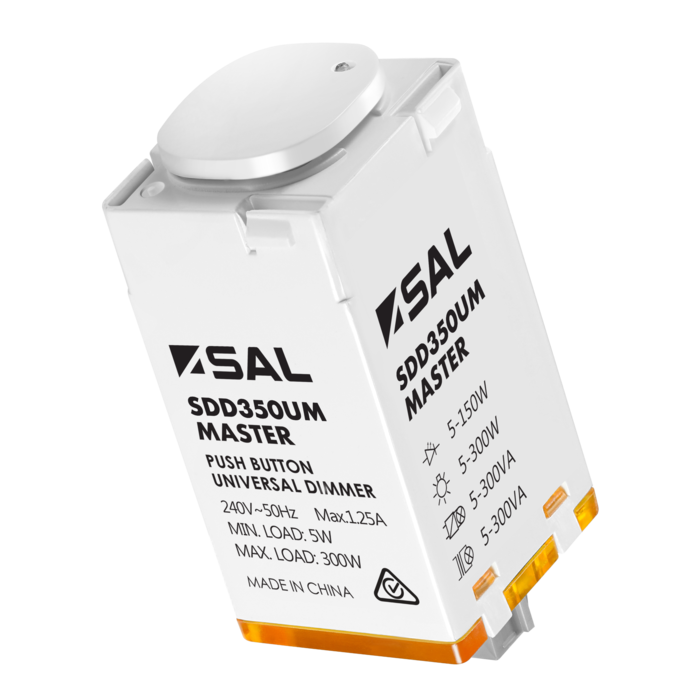

DIGITAL DIMMER - MASTER SDD350UM

MASTER - universal digital dimmer

Application

Smart lighting controls for residential and commercial applications

Design Specifications

  • Push button control for trailing or leading edge dimming, with soft start and soft off technology

  • Colour temperature selection functionality is achieved when used with compatible SAL downlights (S9842CS/WH)

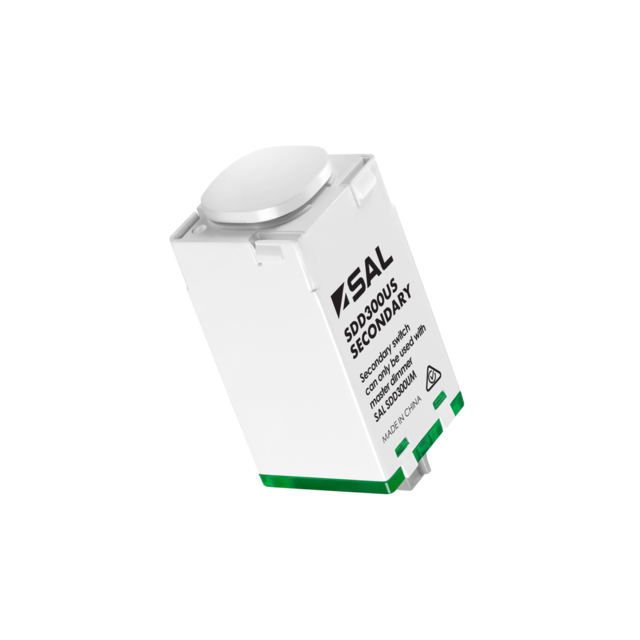

  • Multiple-location dimming by connecting SDD350UM with any number of secondary dimmers SDD300US can be achieved.

  • Fit most popular switch plates, three complimentary mech caps provided, overheating and over current protection, full short circuit protection

  • Programmable minimum brightness level and memory function, compliant to AS/NZS60669.2.1

  • Supports ceiling sweep & exhaust fan < 60watt loads in leading edge mode only.

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing & Leading edge

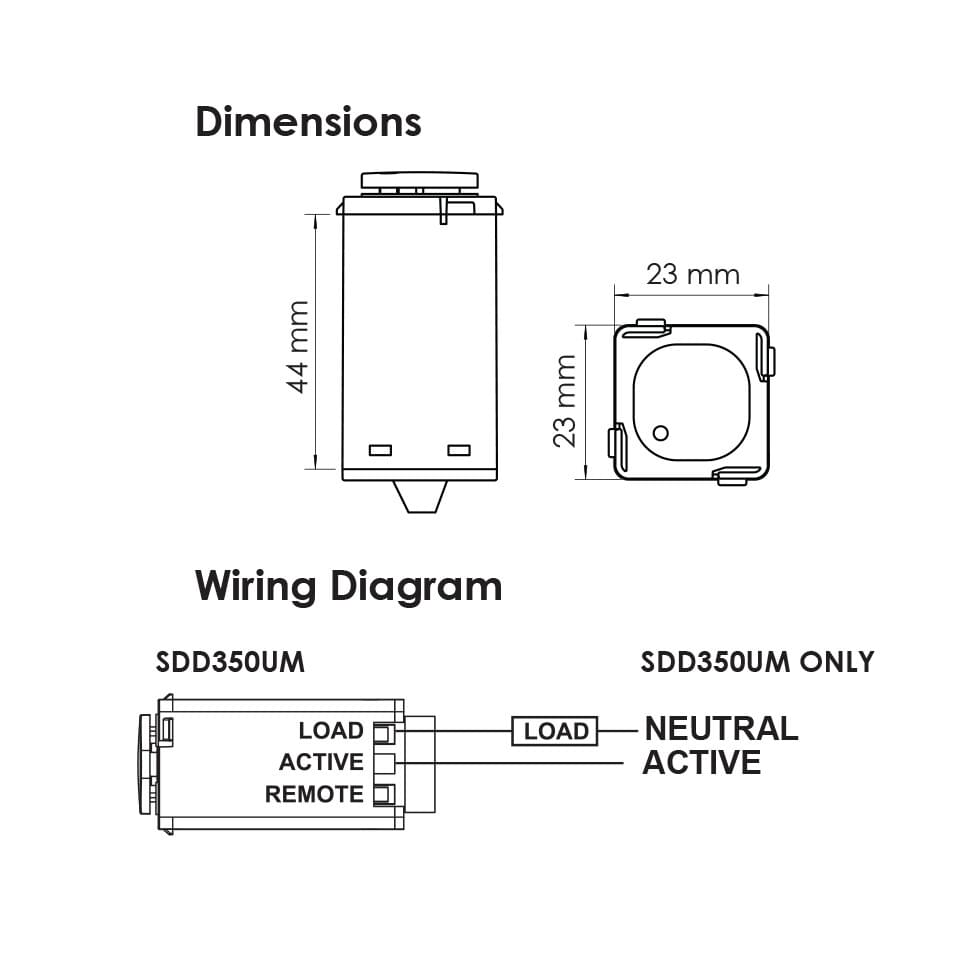

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SDD350UM Input Voltage240 Power300 Dim44(L) x 23(W) x 23(H) Body ColourWHITE Add to Enquiry Add Remove Remove

    Minimum load - 5 watt

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
