• ELECTRICAL ACCESSORIES

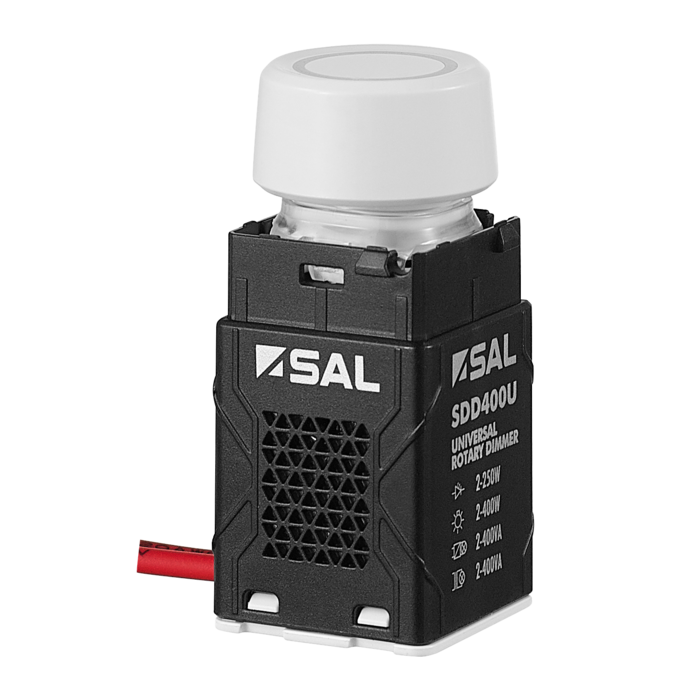

ROTARY DIMMER - UNIVERSAL SDD400U

Universal, multi-function digital dimmer 2 - 400W

Application

Residential and commercial lighting control requirements

Design Specifications

  • Multi-function trailing edge or leading edge digital dimmer with soft start technology and no neutral termination required. Push ON or OFF control

  • 240V, load rating 2 - 400W, load compatibility and multi-gang configuration de-rating values, refer to the installation sheet

  • Fit most popular switch plates

  • Designed with over-heating protection, compliant with AS/NZS 60669 2.1

  • Colour temperature selection functionality is achieved when used with SAL S9842CS/WH

  • Optional BLACK knob to order - SDKS/BK/BTP

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing & Leading edge

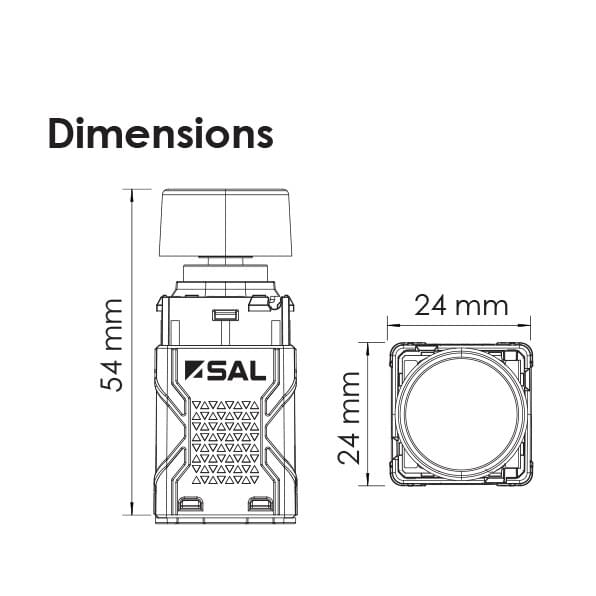

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Dim Body Colour
      		Model No. SDD400U Add to Enquiry Add Remove Remove Input Voltage 240 Power 400 Dim 54(L) x 24(W) x 24(H) Body Colour WHITE DIAL

      Minimum load - 2 watt

    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
