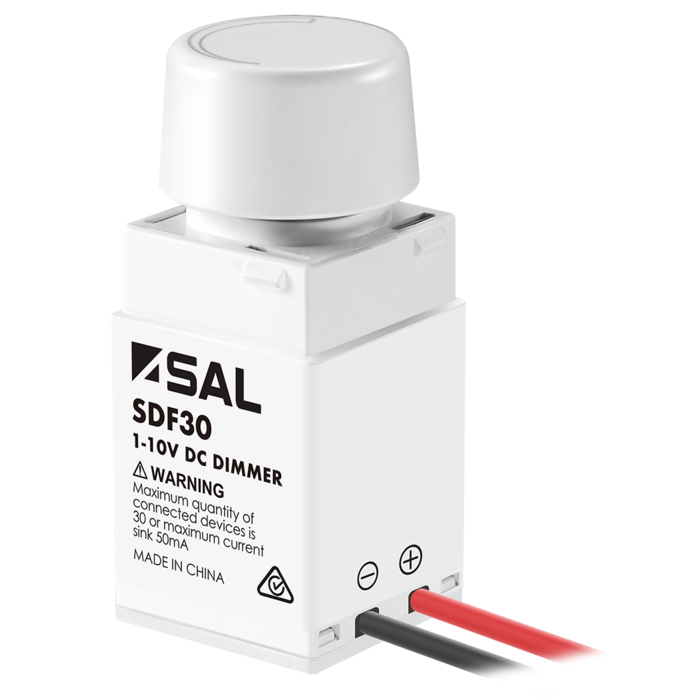

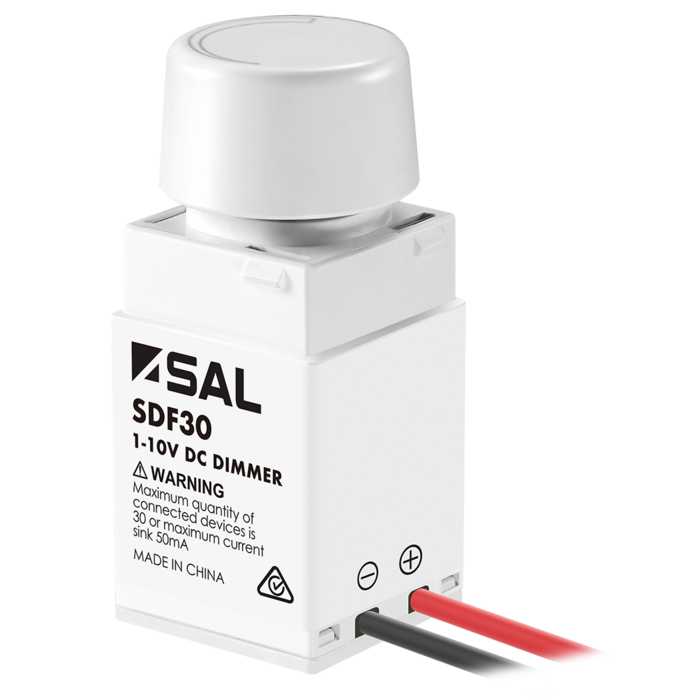

1-10V DC DIMMING CONTROLLER - SDF30

1-10V DC analogue rotary dimming control

Application

Ideal for residential and commercial lighting control requirements

Design Specifications

  • 1-10V DC  rotary analogue control dimming controller

  • Fits most popular switch plates

  • Note: maximum quantity of connected devices is 30 or a maximum current sink of 50mA

  • Rated B500 kilo ohm

Performance

  • Dimmable - YES
  • Dimmer Type - Analogue 1- 10V DC

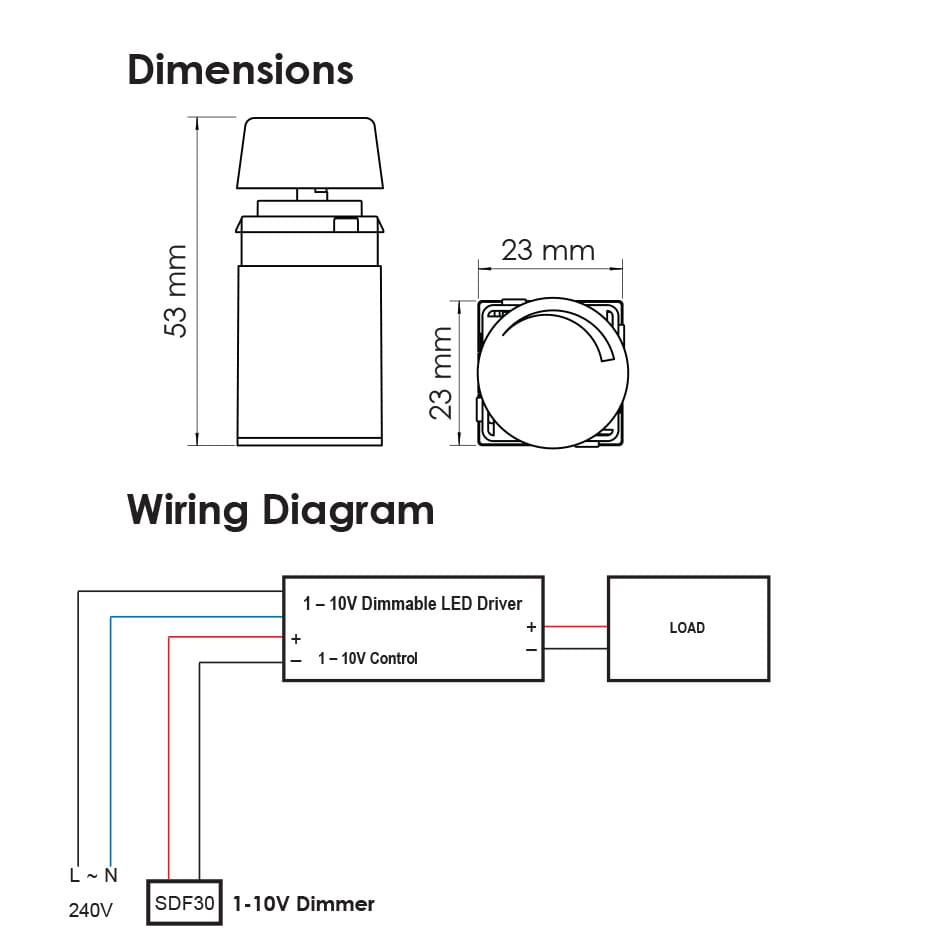

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SDF30 Input Voltage10 Dim53(L) x 23(W) x 23(H) Body ColourWHITE Add to Enquiry Add Remove Remove
