• SENSORS

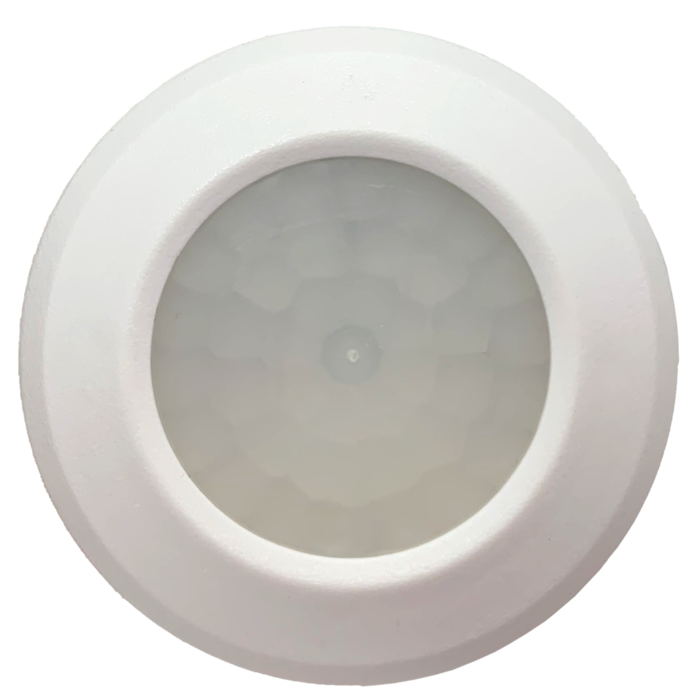

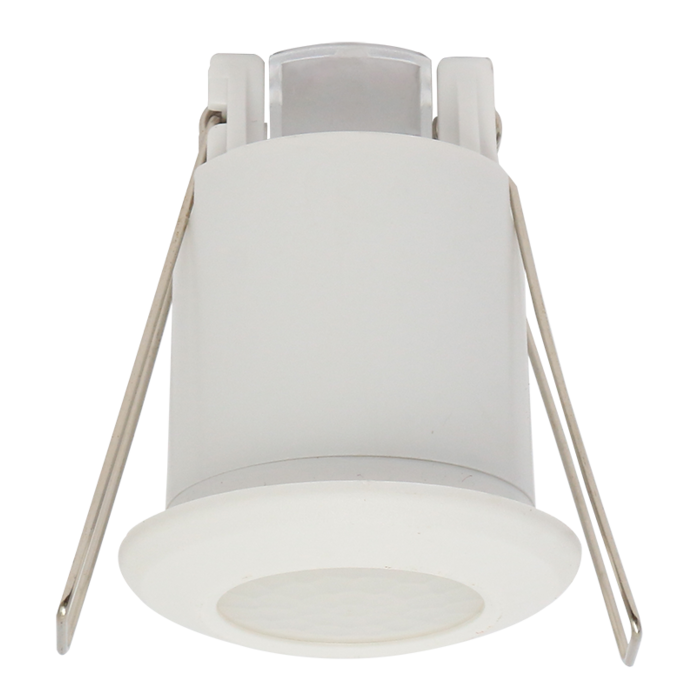

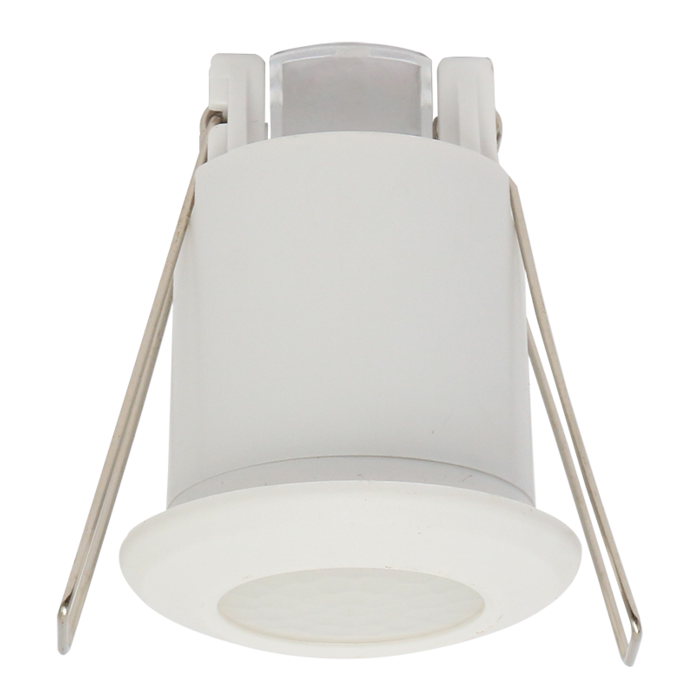

PIR SENSOR - SMS807CR

PIR Sensor - recessed mount, 40mm cut-out

Application

Versatile residential and commercial sensor

Design Specifications

  • Switched power 800W incandescent, 400W fluorescent, 300W LED

  • Standby power <0.5W

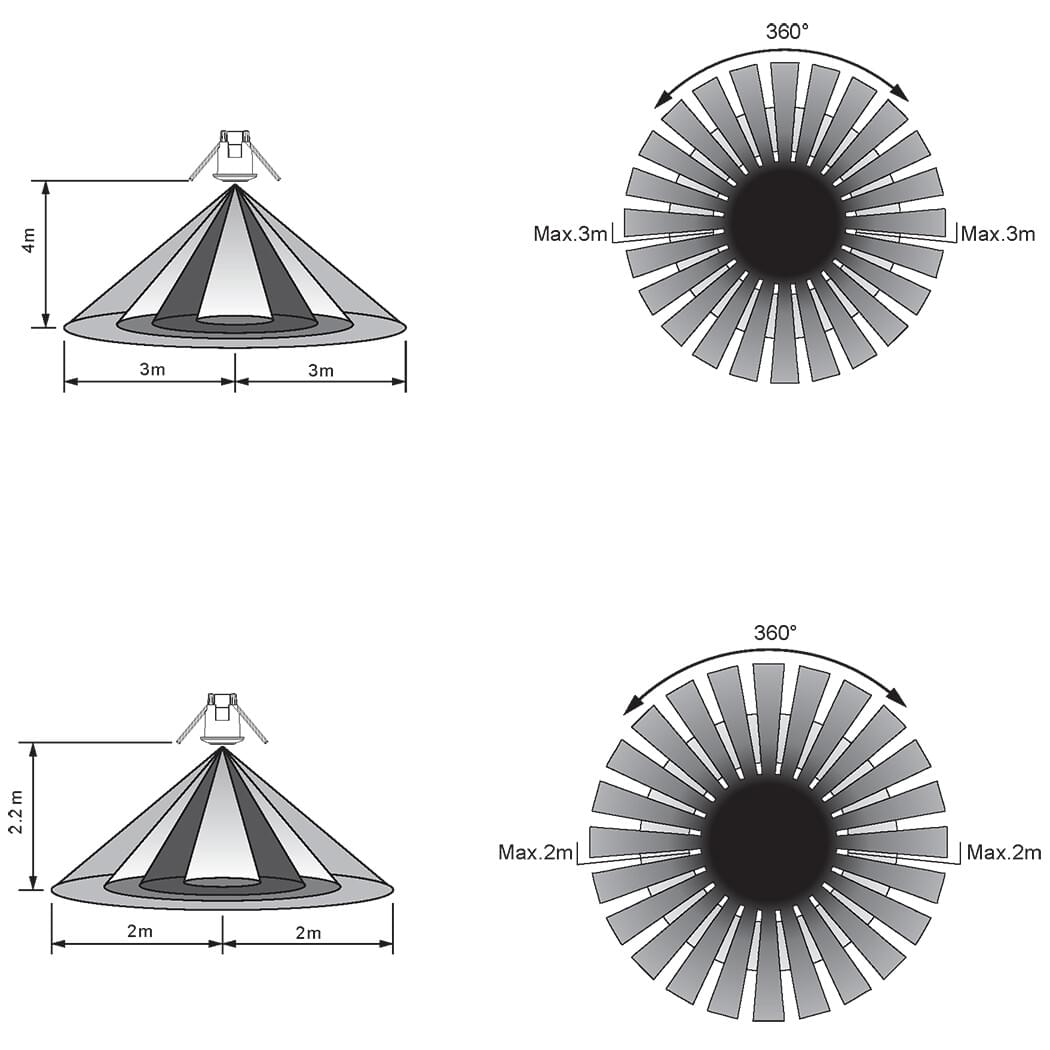

  • Detection distances: Max. Ø 6.0m at 4.0hm. Max. Ø 4.0m at 2.2hm.

  • Detection angle 360° , Adjustable time delay Min, 10sec / Max. 7min

  • Adjustable light (lux) sensitivity <10 - 2000 lux

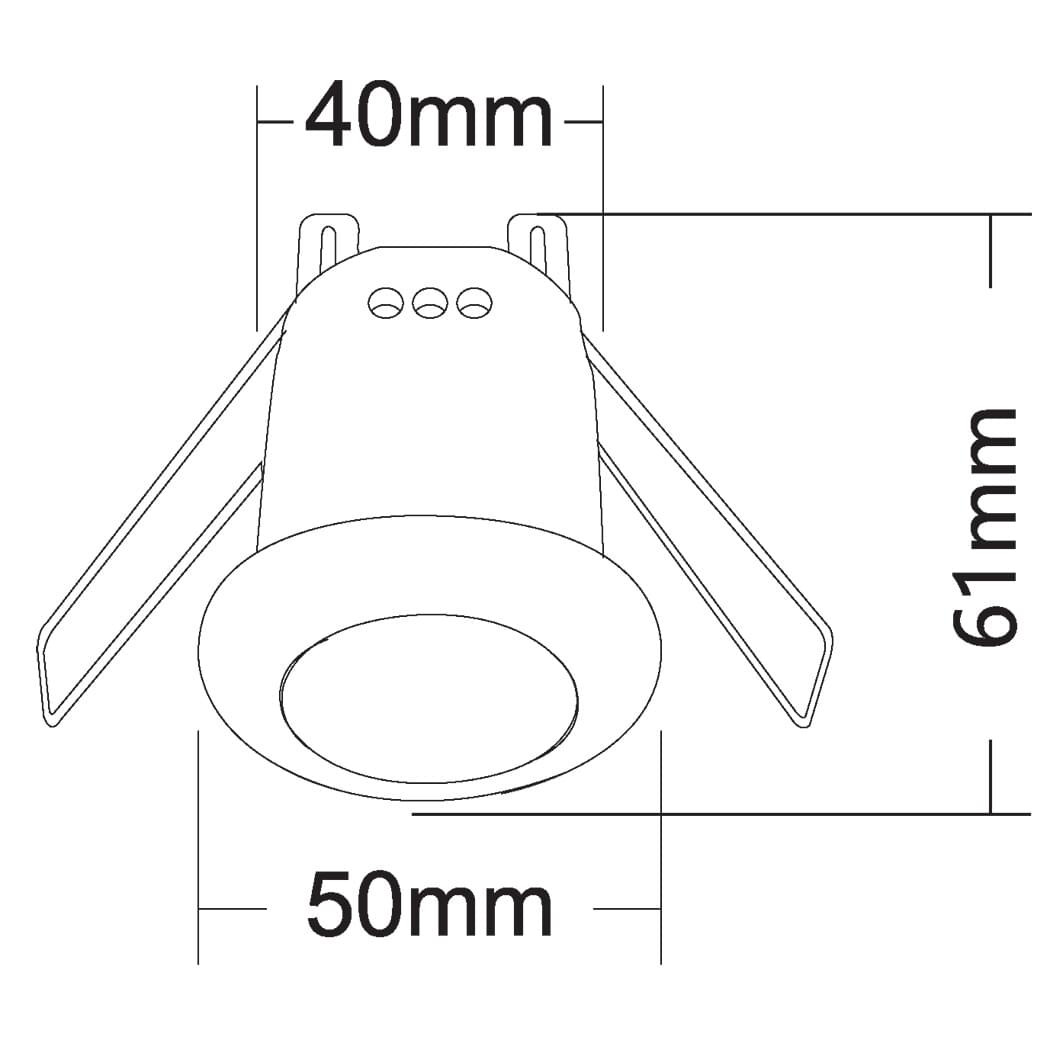

  • Manual override function, low profile white design, Ø 40mm cut-out

Performance

  • Dimmable - NO
  • In Built Sensor - YES
  • Sensor Type - PIR
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Body Colour Cut Out
      		Model No. SMS807CR Add to Enquiry Add Remove Remove Input Voltage 240 Power 800 Body Colour WHITE Cut Out 40
