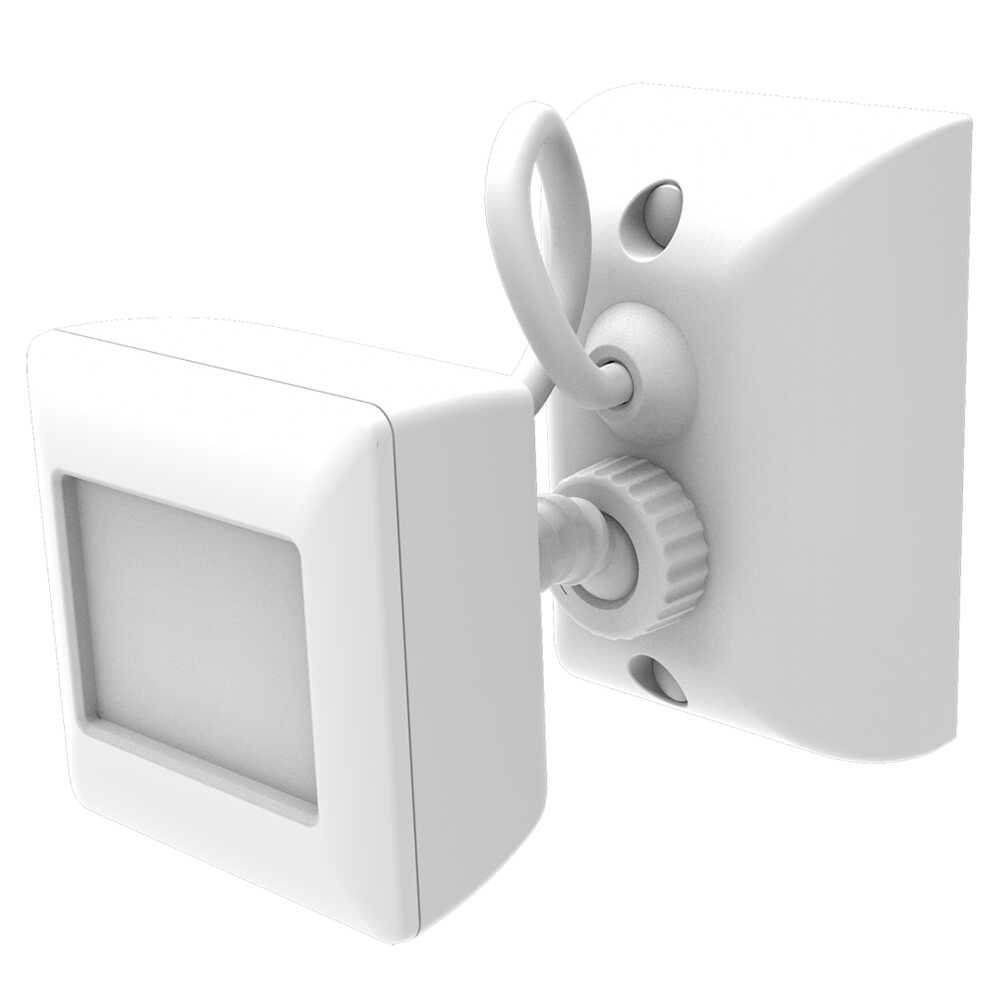

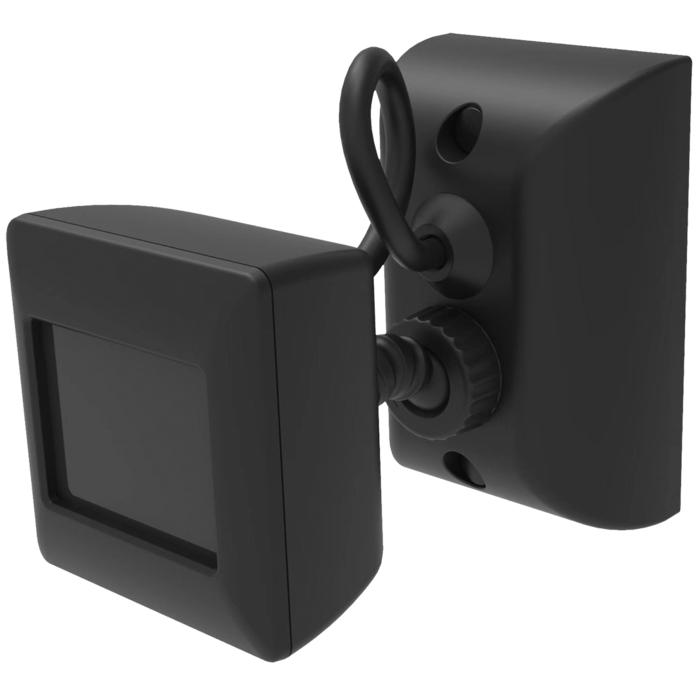

PIXIE SMART PIR SENSOR OUTDOOR - SMS862WF/BTAM

PIXIE MASTER DEVICE - SMART HOME PIR Sensor with PE cell and override functions - surface mount IP66

Application

Versatile residential and commercial sensor applications with Smart function control

Design Specifications

  • Sensitivity, hold time and brightness threshold adjustment can be set via physical dials, and via the PIXIE PLUS App

  • Maximum loads (LED) 500W, (Halogen) 2000W

  • Additional PE cell mode

  • Detection angle 110° up to 12 metres at a height of 1.8 - 2.5m (Black model detection range 10 metres).

  • Simply use the App or PIXIE secondary device to switch among 4 working modes: Motion sensor mode, Override ON, Override OFF, and PE cell mode

  • 3 wire design for interior or exterior use in a choice of WHITE or BLACK

Performance

  • Dimmable - NO
  • In Built Sensor - YES
  • Sensor Type - PIR

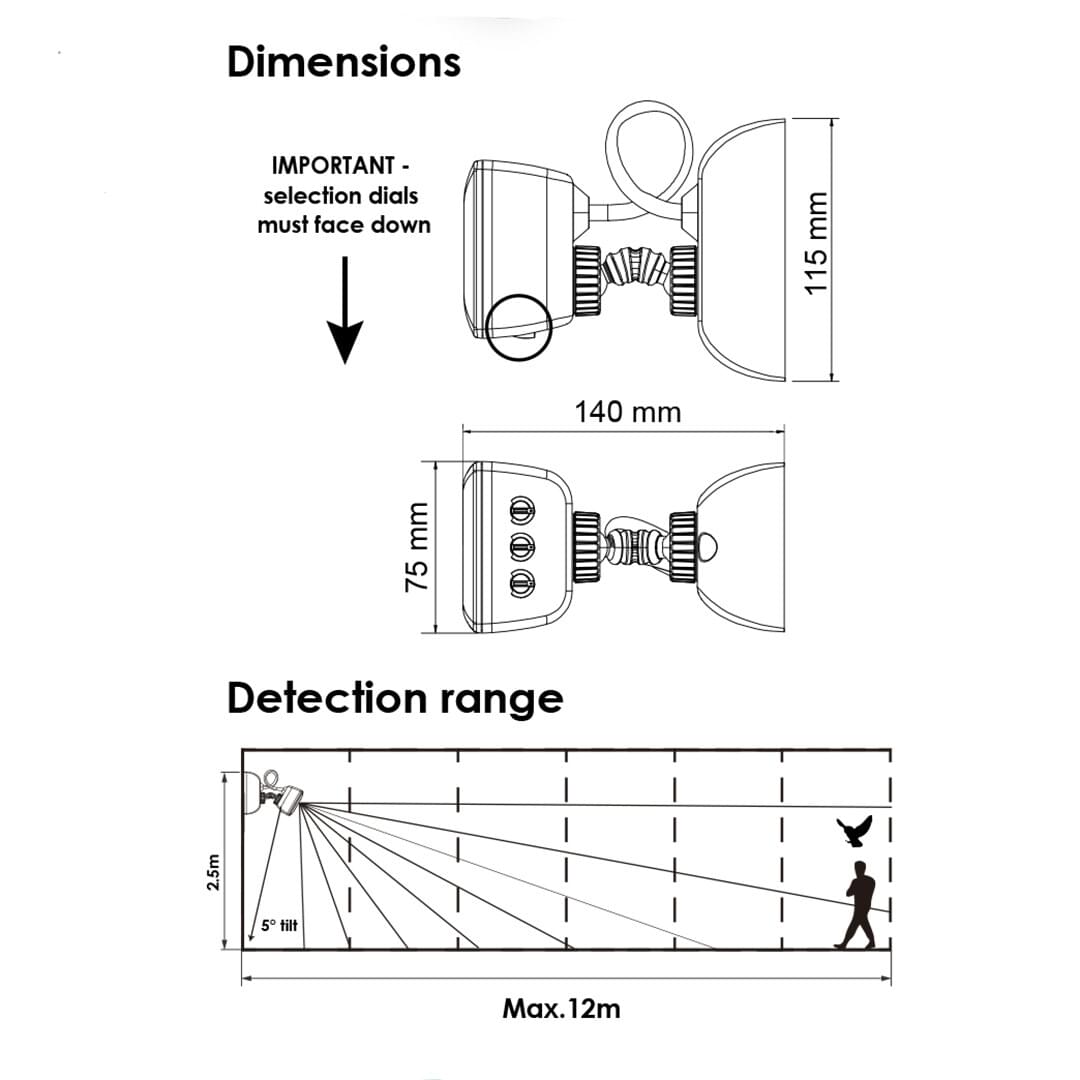

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Body Colour

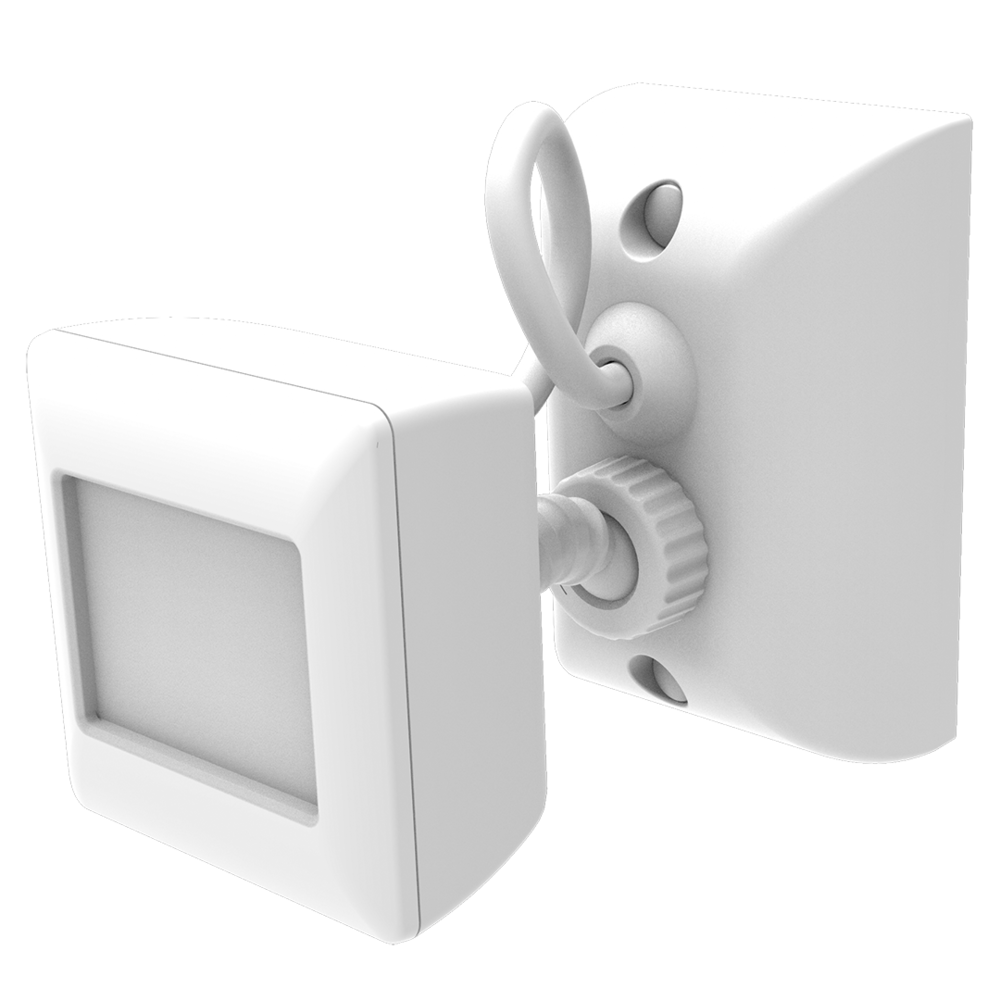

      		Model No. SMS862WF/WH/BTAM Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour WHITE

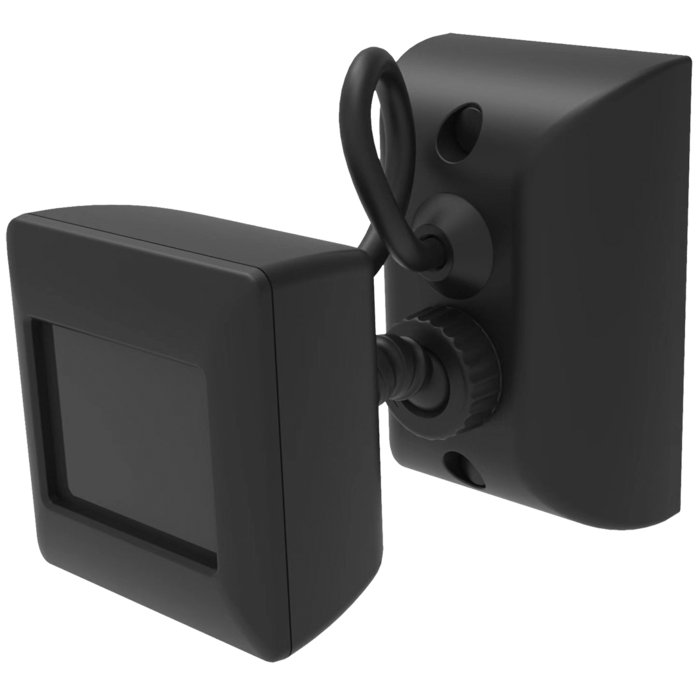

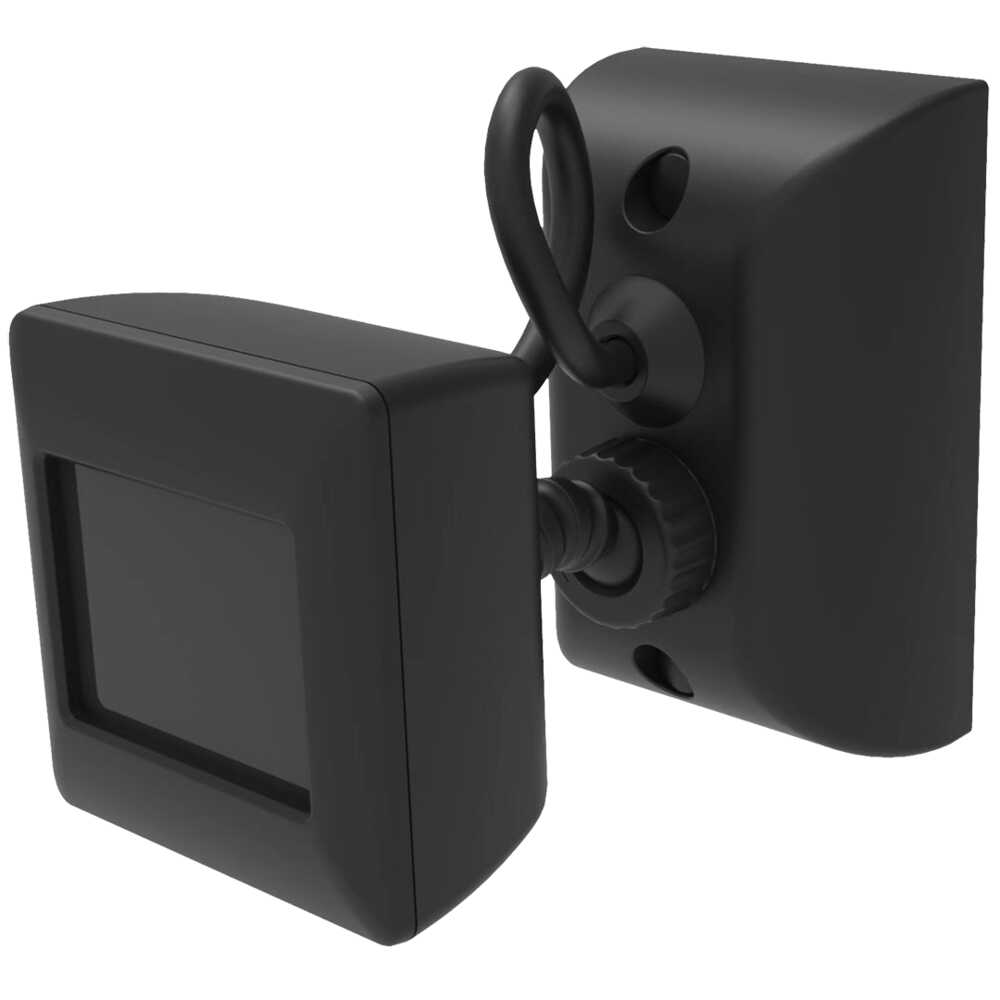

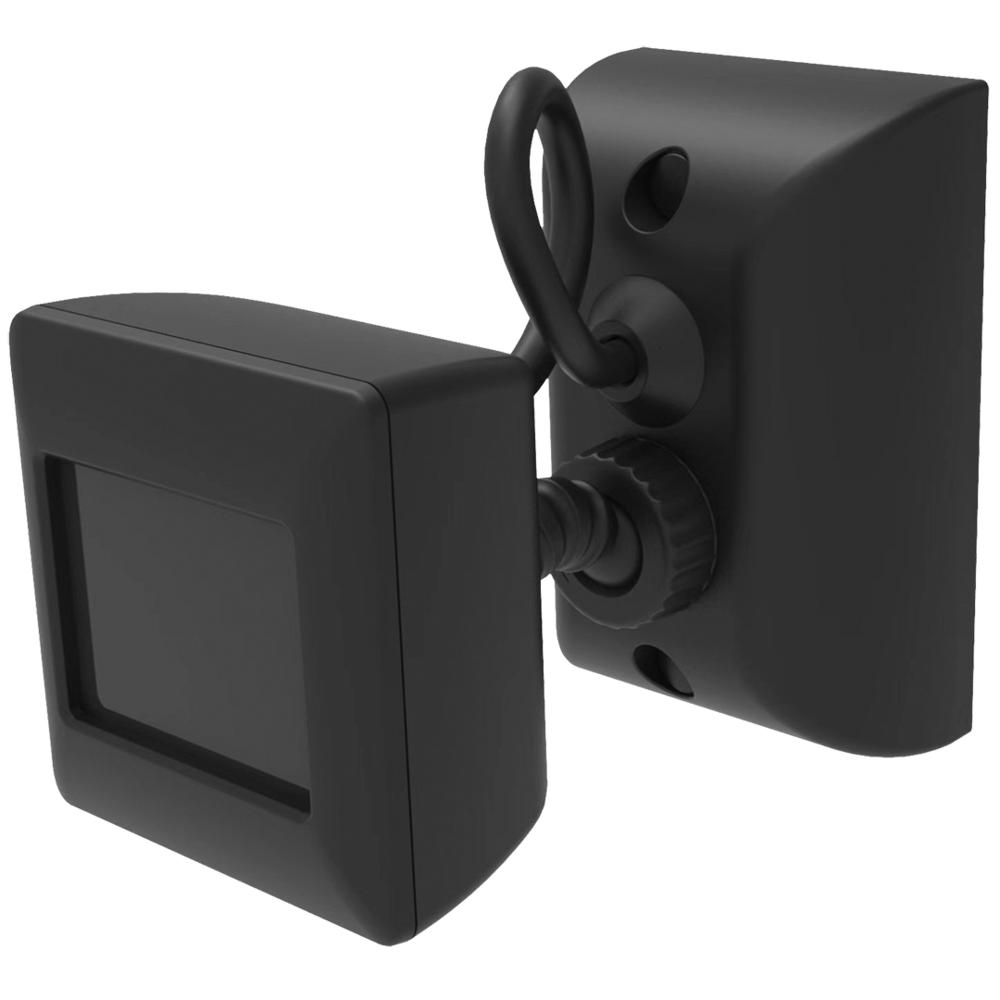

      		Model No. SMS862WF/BK/BTAM Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour BLACK
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
