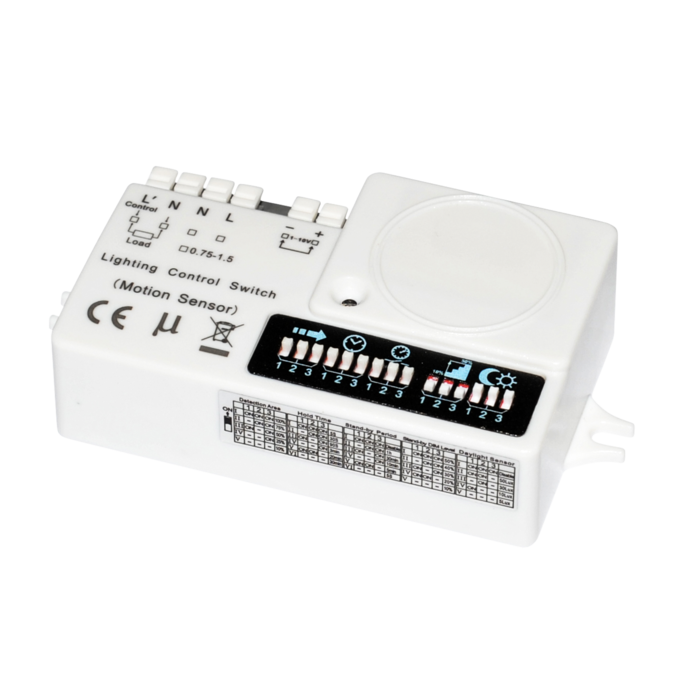

MV SENSOR SMS733

Microwave motion sensor IP20 with step dimming

Application

Versatile residential and commercial sensor. SAL factory fitted sensor option for approved products only, not for individual sale

Design Specifications

  • Operating voltage: 220~240Vac, 50/60Hz, rated load: 800W

  • HF system: 5.8GHz ± 75MHz, ISM wave band, transmitting power: <0.5mW, power consumption: ≤1.0W (standby)

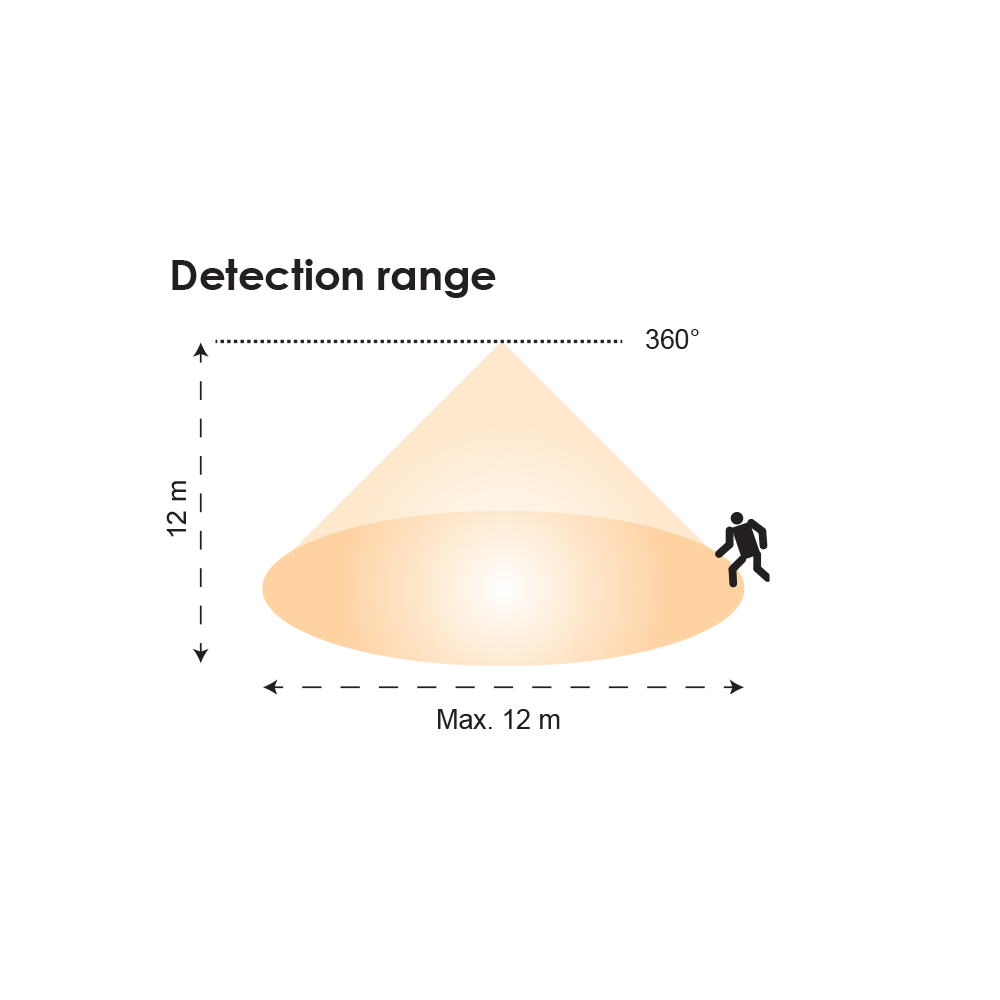

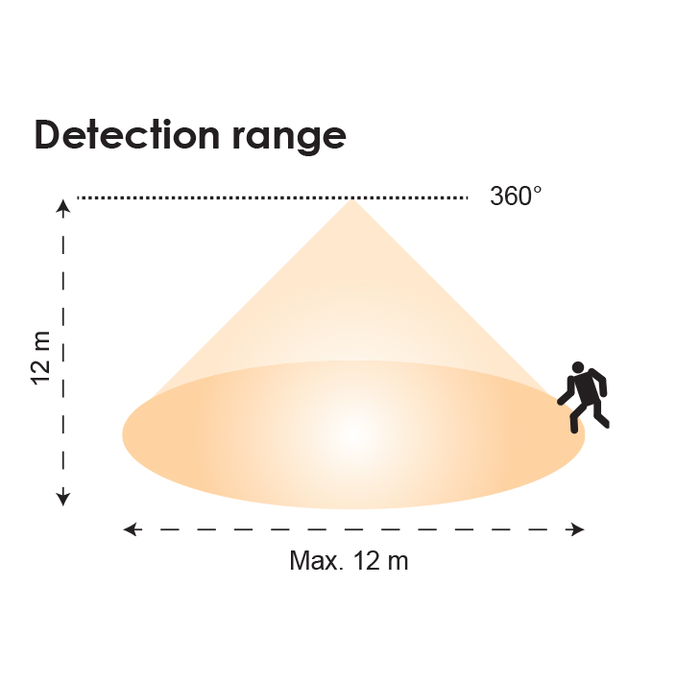

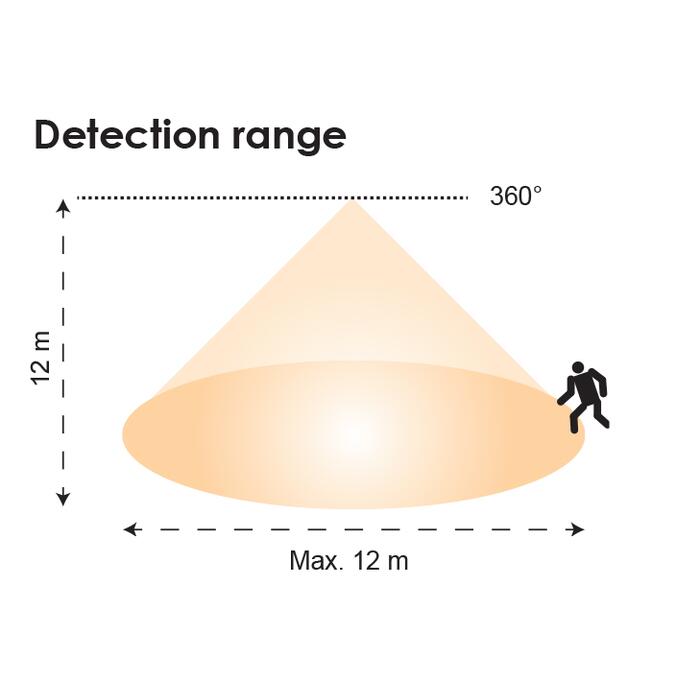

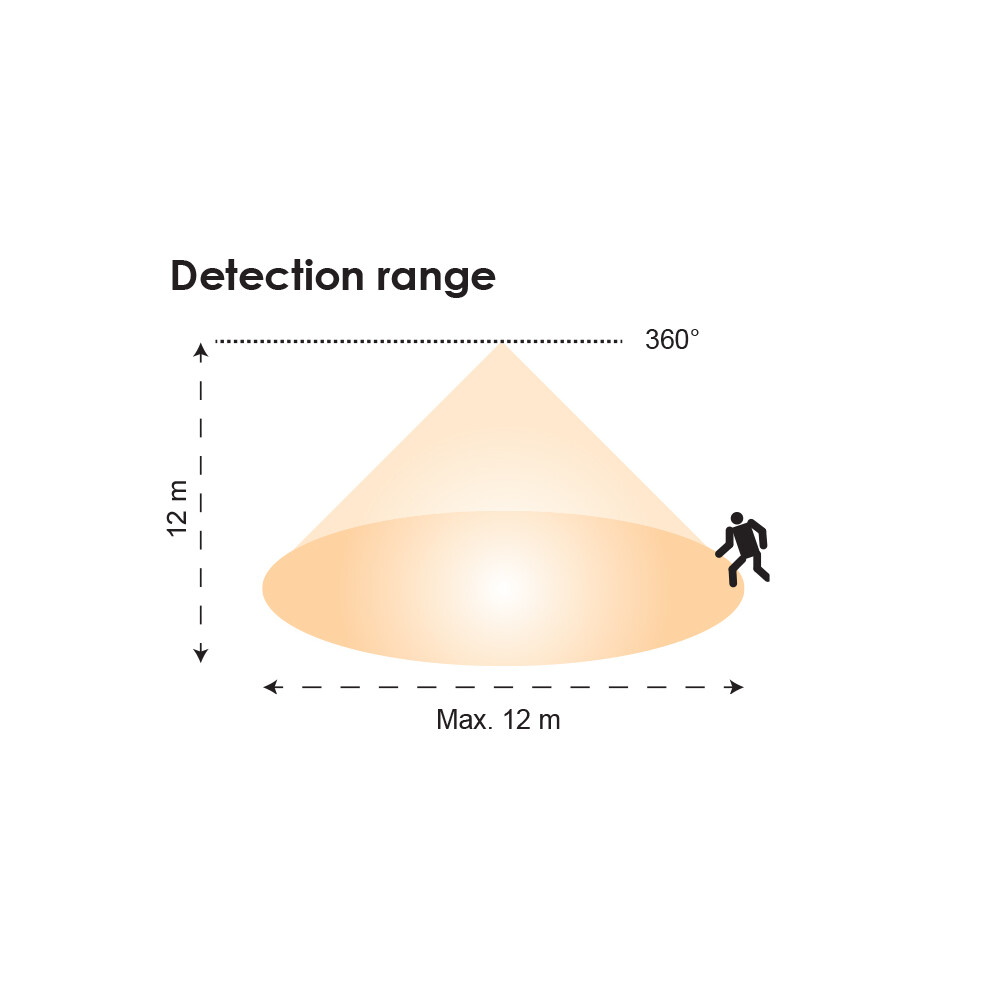

  • Detection zone: Max.(D x H): 12m x 12m, detection sensitivity: 10%/25%/50%/75%/100%

  • Hold time: 5s/30s/90s/3min/20mimn/30min, daylight sensor: 5lux/10lux/30lux/50lux/Disable

  • Stand-by period: 5s/5min/10min/30min/1h/Disable, stand-by dimming level: 10%/20%/30%/40%/50%

  • Mounting height: Max.12m, motion detection: 0.5~3m/s, detection angle: 150° (wall installation), 360° (ceiling installation)

Performance

  • Dimmable - YES
  • Dimmer Type - Step dimming
  • In Built Sensor - YES
  • Sensor Type - MICROWAVE

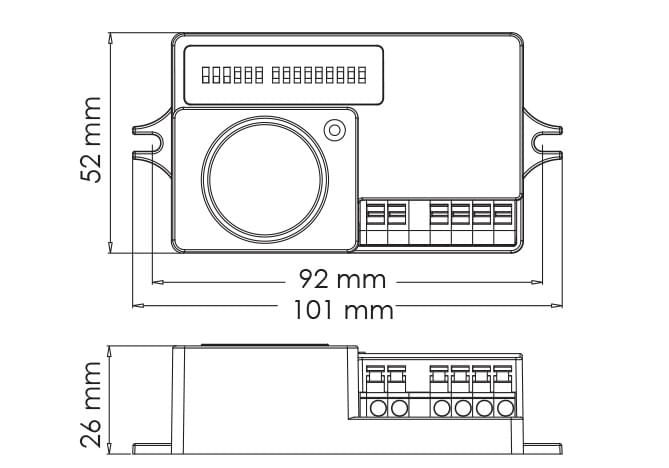

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power
      		Model No. SMS733 Add to Enquiry Add Remove Remove Input Voltage 240 Power 800
