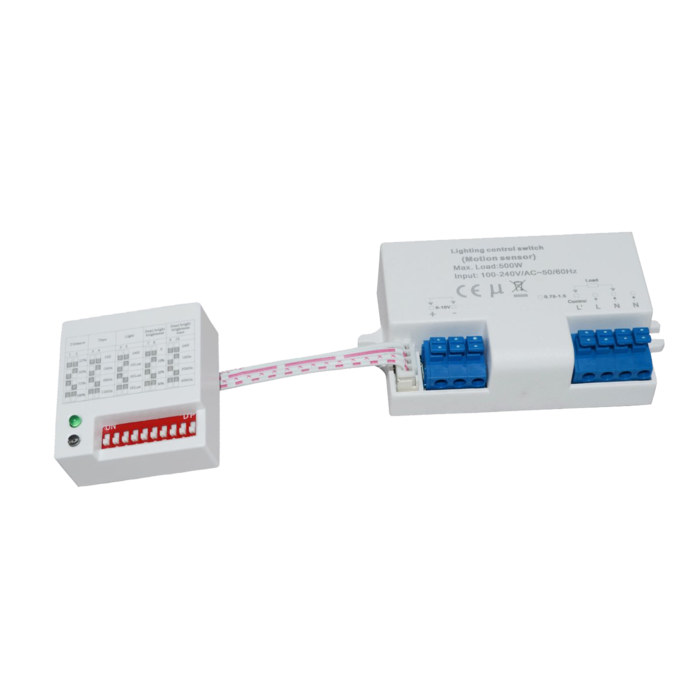

MV SENSOR - SMS735

Microwave motion sensor IP20 with detachable antenna step dimming

Application

Creative motion sensor for interior lighting applications SAL factory fitted sensor option for approved products only, not for individual sale

Design Specifications

  • Operating voltage: 100~240Vac, out current: ~10Vdc, switched power: Max.600W, standby power: <0.9W

  • Detection range: 25%/50%/75%/100%

  • Daylight threshold: 10~50lux, or disable

  • Hold time: 10s/10min/20min/30min, standby period: 1min/30min/60min/24h, standby dimming level: 10%/20%/30%

  • Microwave frequency: 5.8GHz ± 75MHz, microwave power: <0.2mW

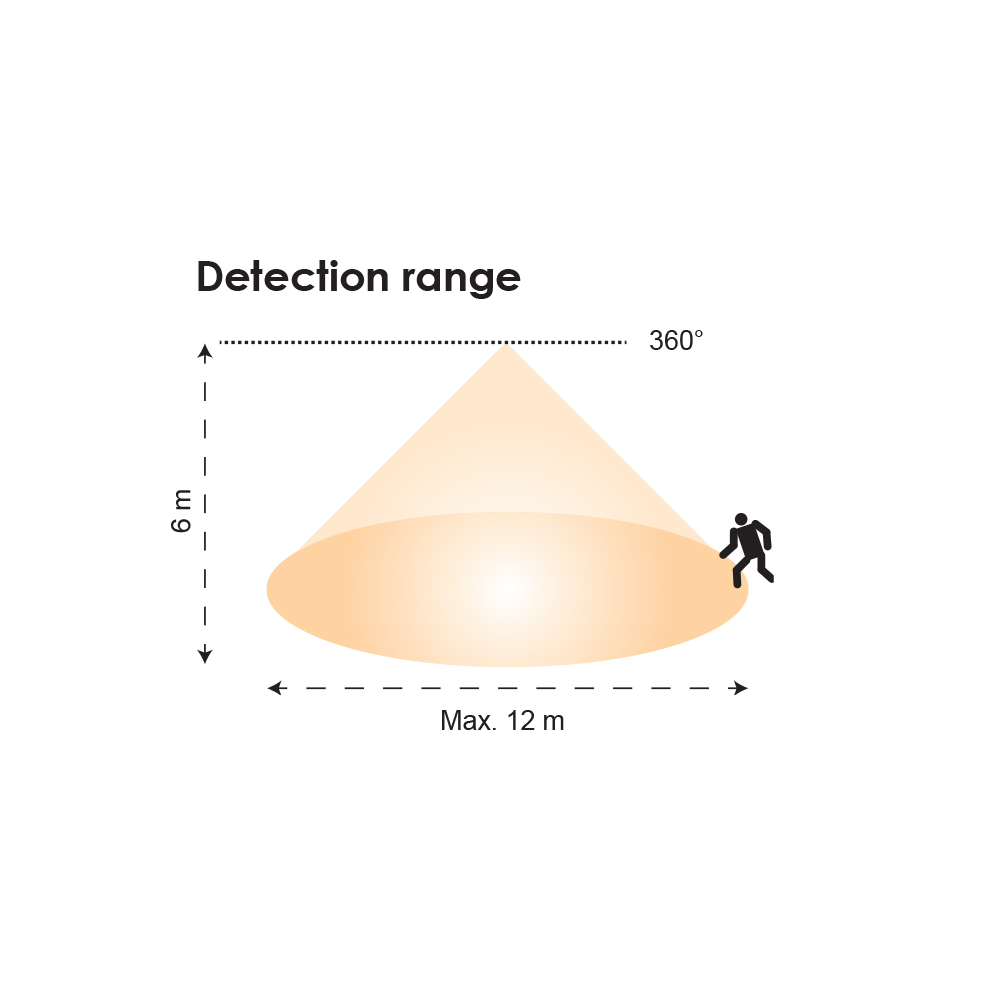

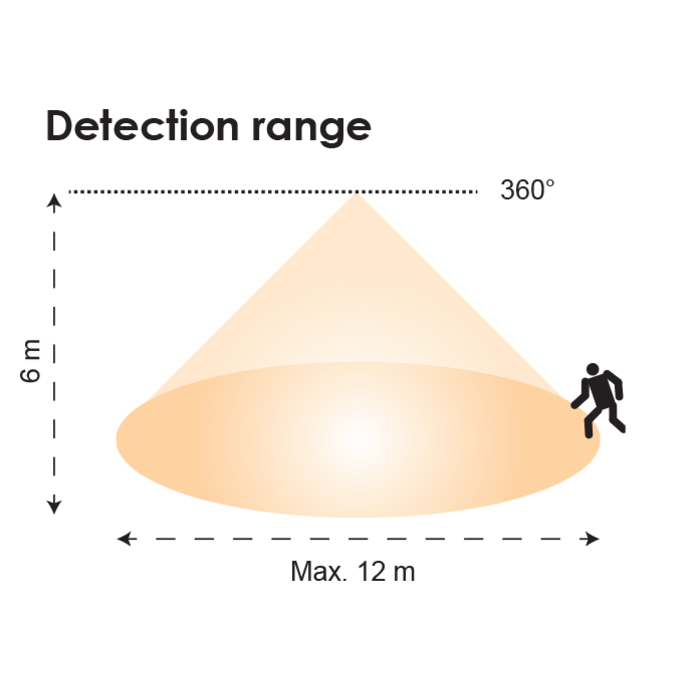

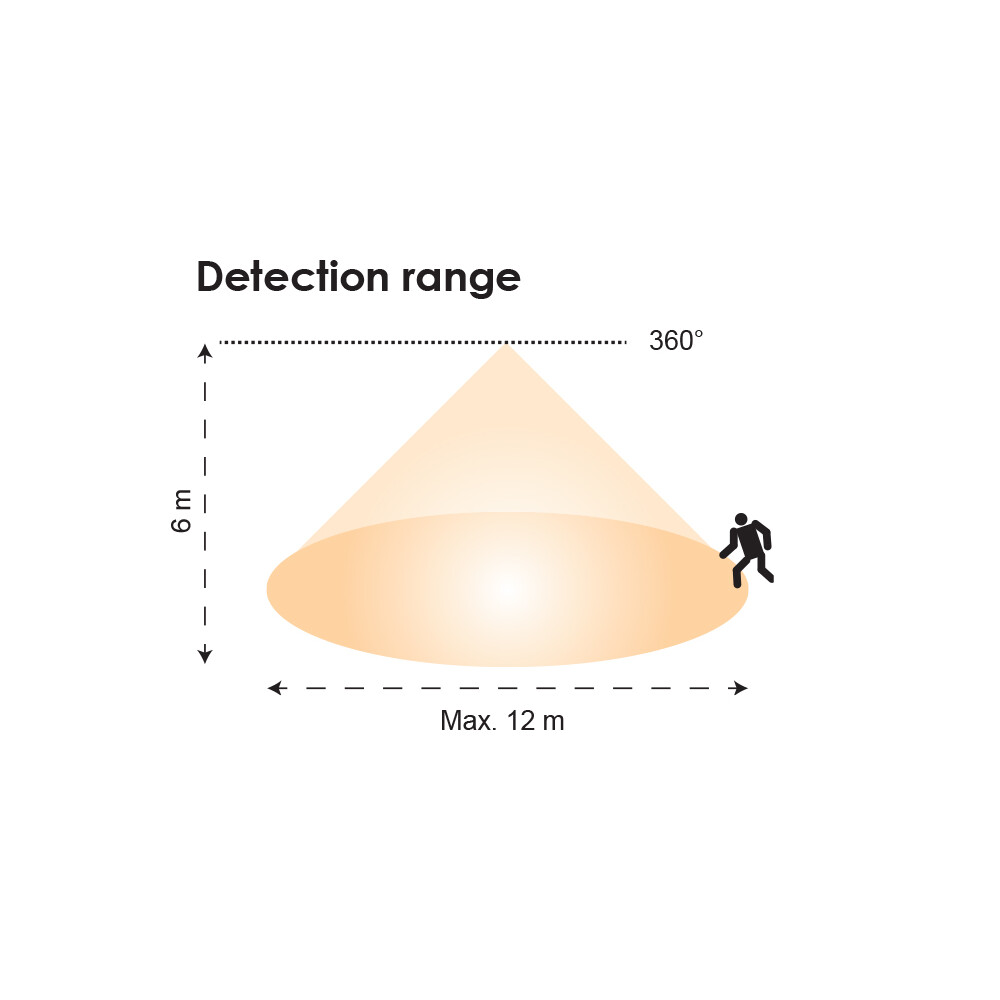

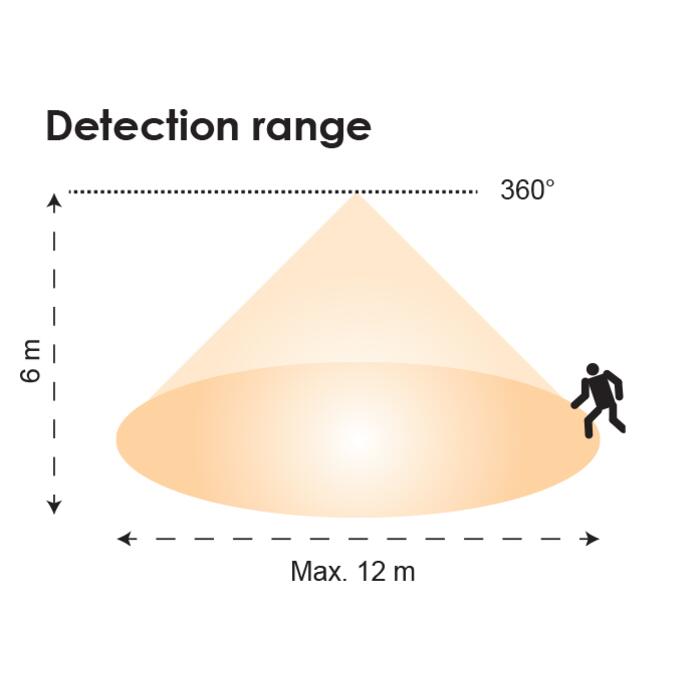

  • Detection range: Max.12m, detection angle: 360°, mounting height: Max.6m.

Performance

  • Dimmable - YES
  • Dimmer Type - Step Dimming
  • In Built Sensor - YES
  • Sensor Type - MICROWAVE

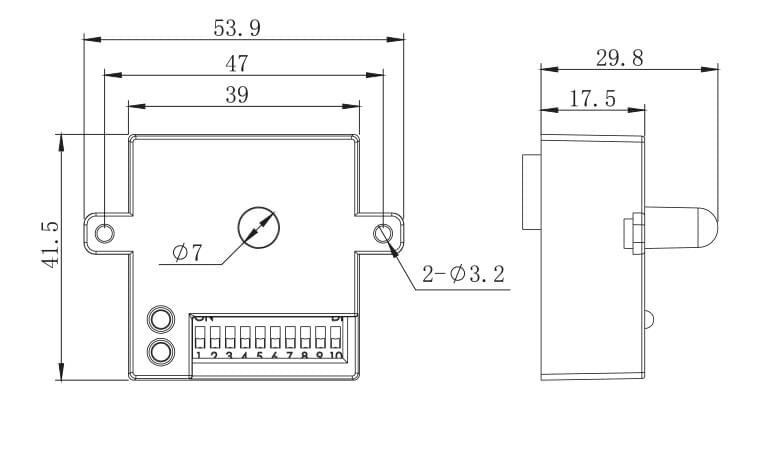

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Body Colour
      		Model No. SMS735 Add to Enquiry Add Remove Remove Input Voltage 240 Power 600 Body Colour WHITE
