• SENSORS

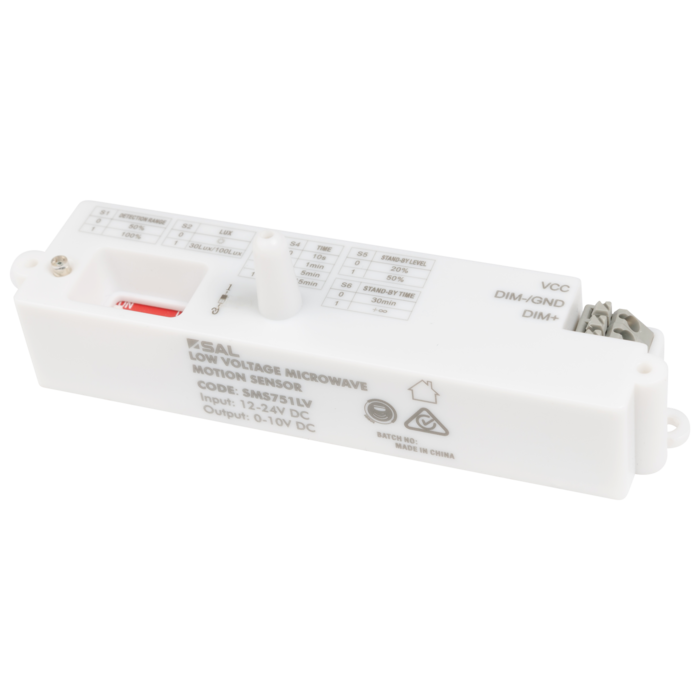

ELV SENSOR - SMS751ELV

Microwave ELV motion corridorSTANDBY sensor IP20

Application

Versatile microwave ON/OFF sensor. SAL factory fitted sensor option for approved products only, not for individual sale

Design Specifications

  • Power source input: 12-24V DC, output 0-10V DC, 30mA sinking current

  • Detection radius max 8m, angle 360°, max 2.5hm

  • Power consumption <0.5W

  • HF system: 5.8GHz

Performance

  • Dimmable - NO
  • In Built Sensor - YES
  • Sensor Type - MICROWAVE

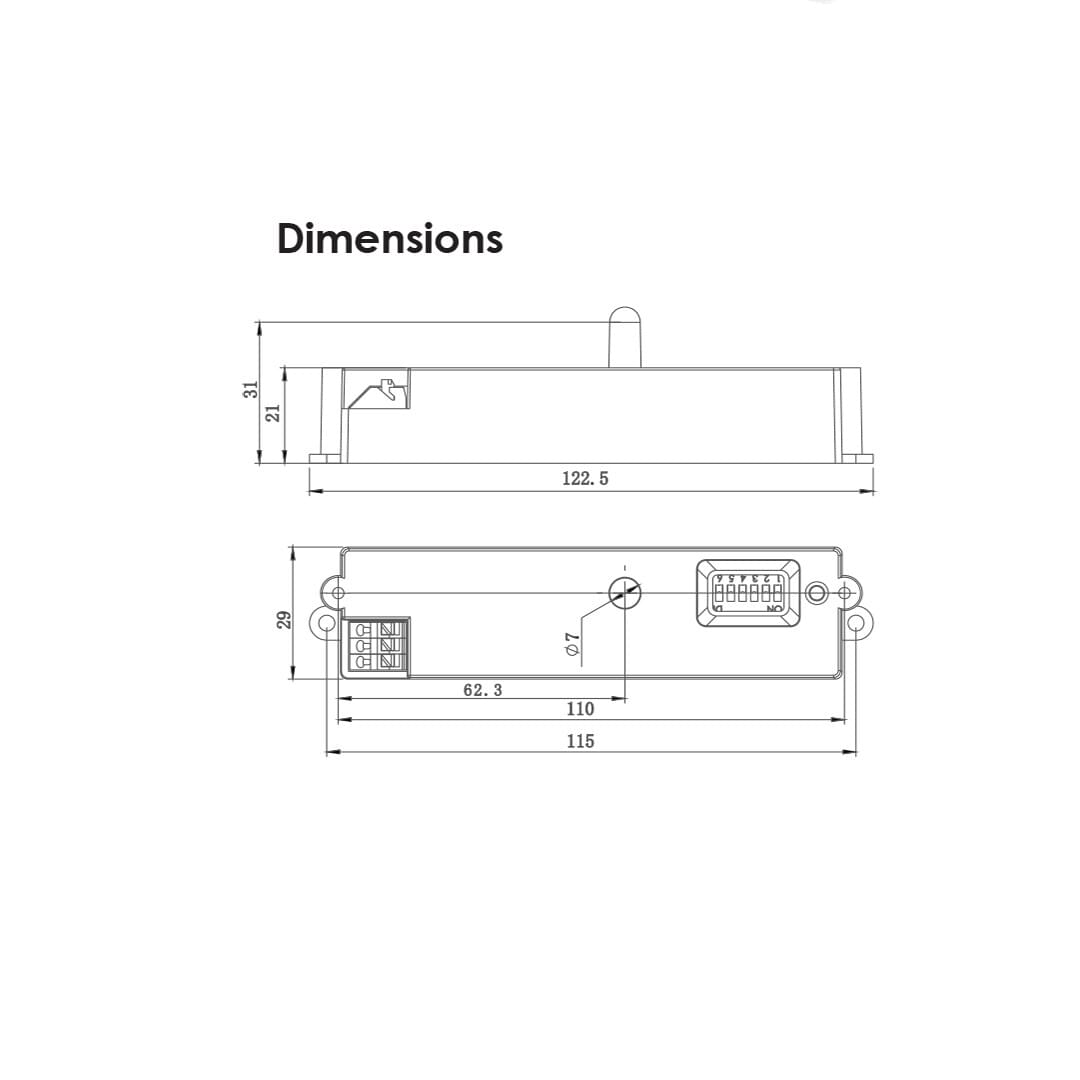

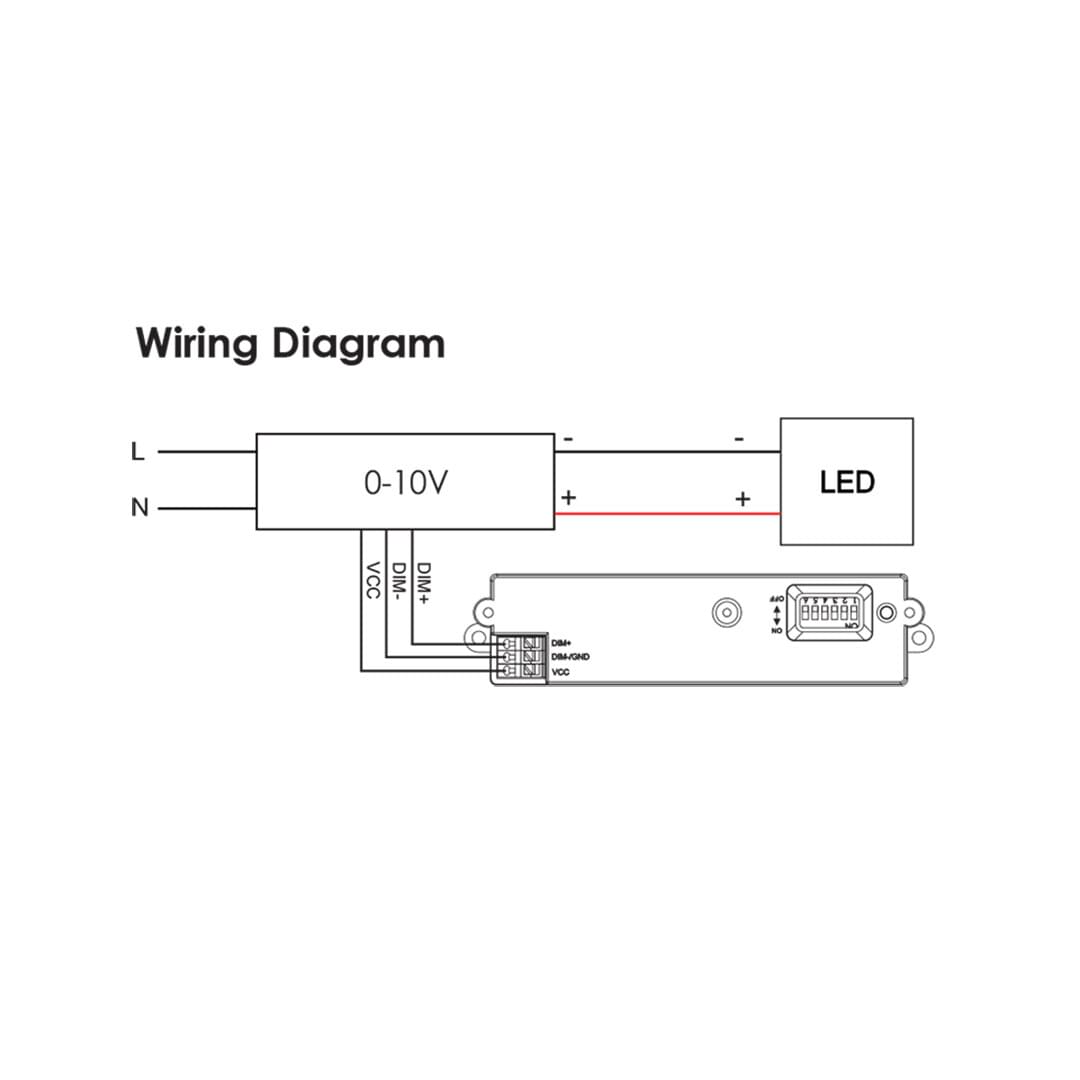

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SMS751ELV Input Voltage12 Body ColourWHITE Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
With over 1000 Australian trade partners, finding where to buy SAL products is easy.  Search a trade partner nearby
