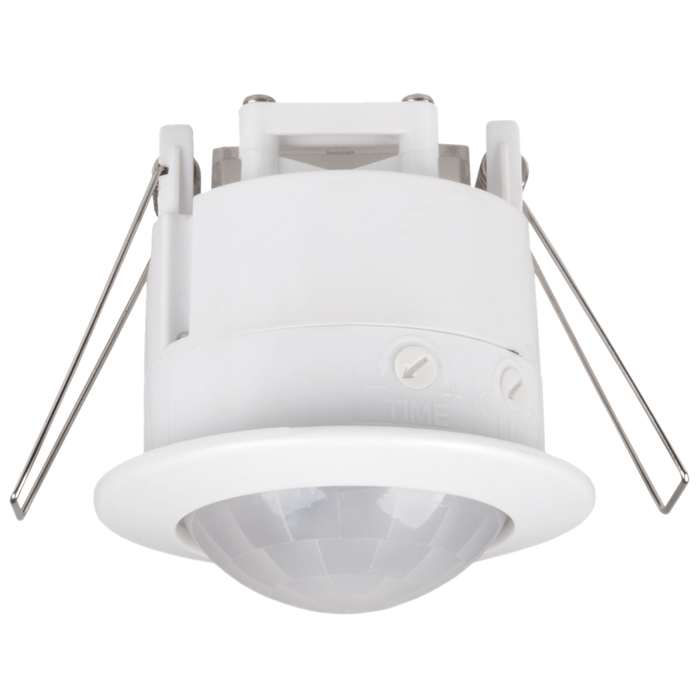

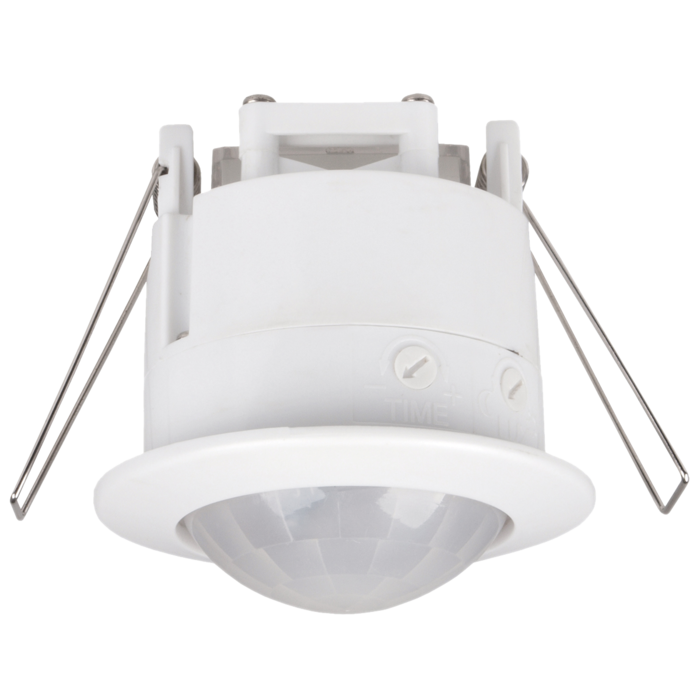

PIR SENSOR - SMS804CR

Infrared sensor - recessed

Application

Versatile IP20 recessed sensor designed for residential and commercial applications

Design Specifications

  • Switched power 2000W incandescent, 500W fluorescent, 300W LED

  • Standby power <1W

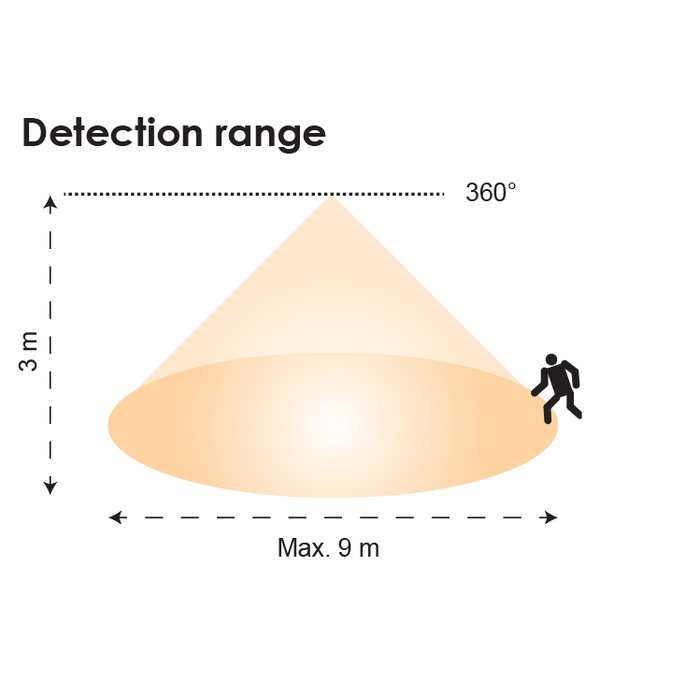

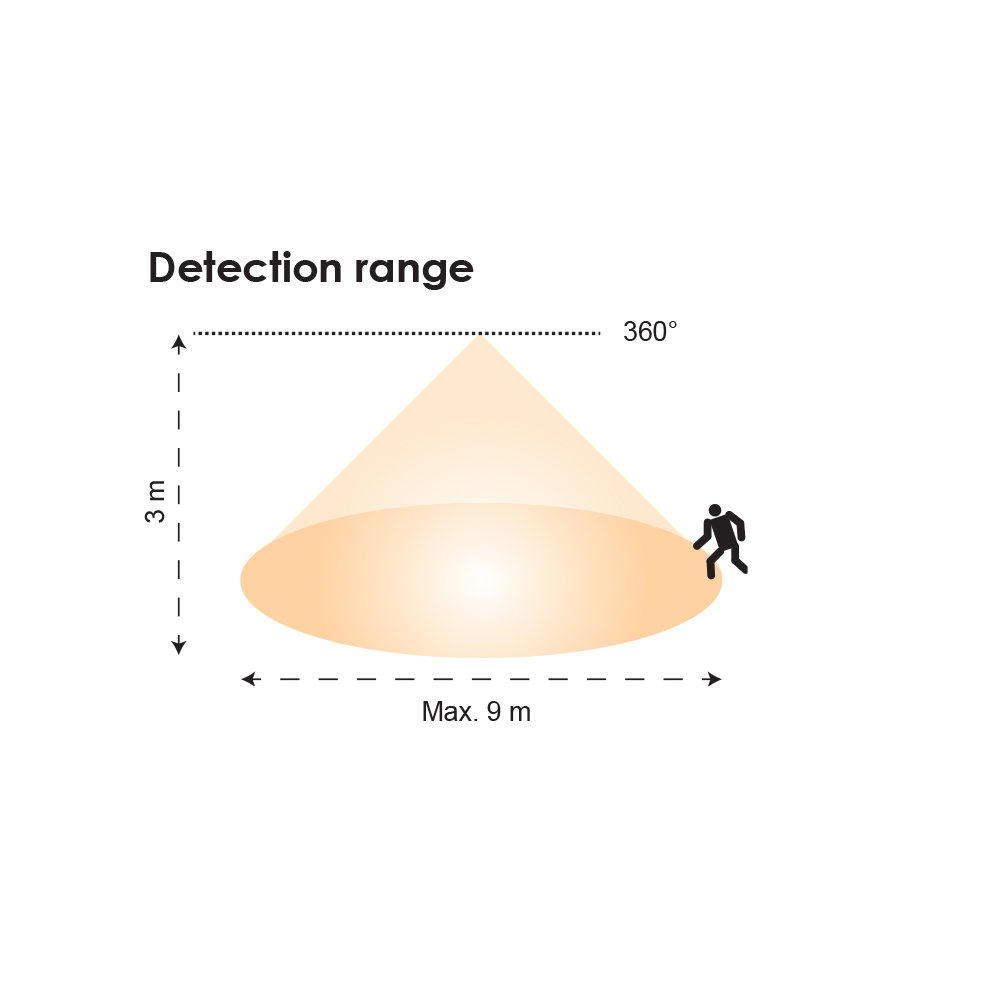

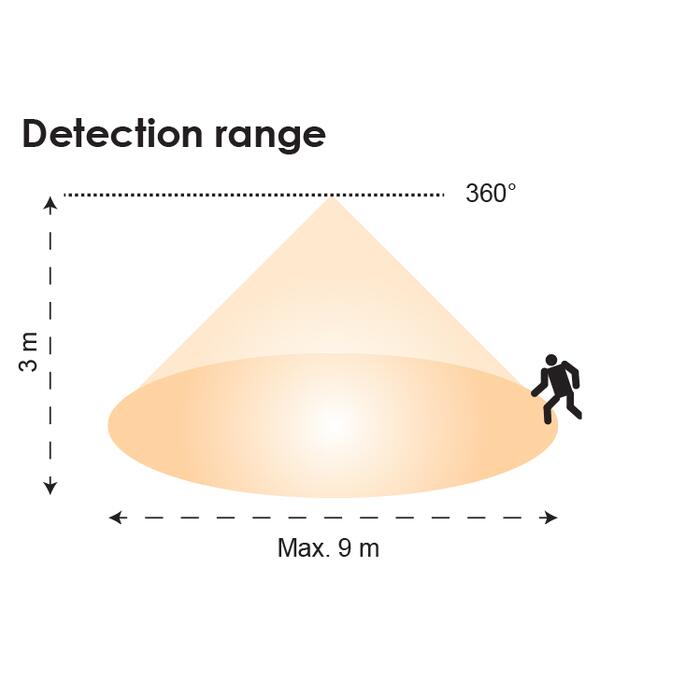

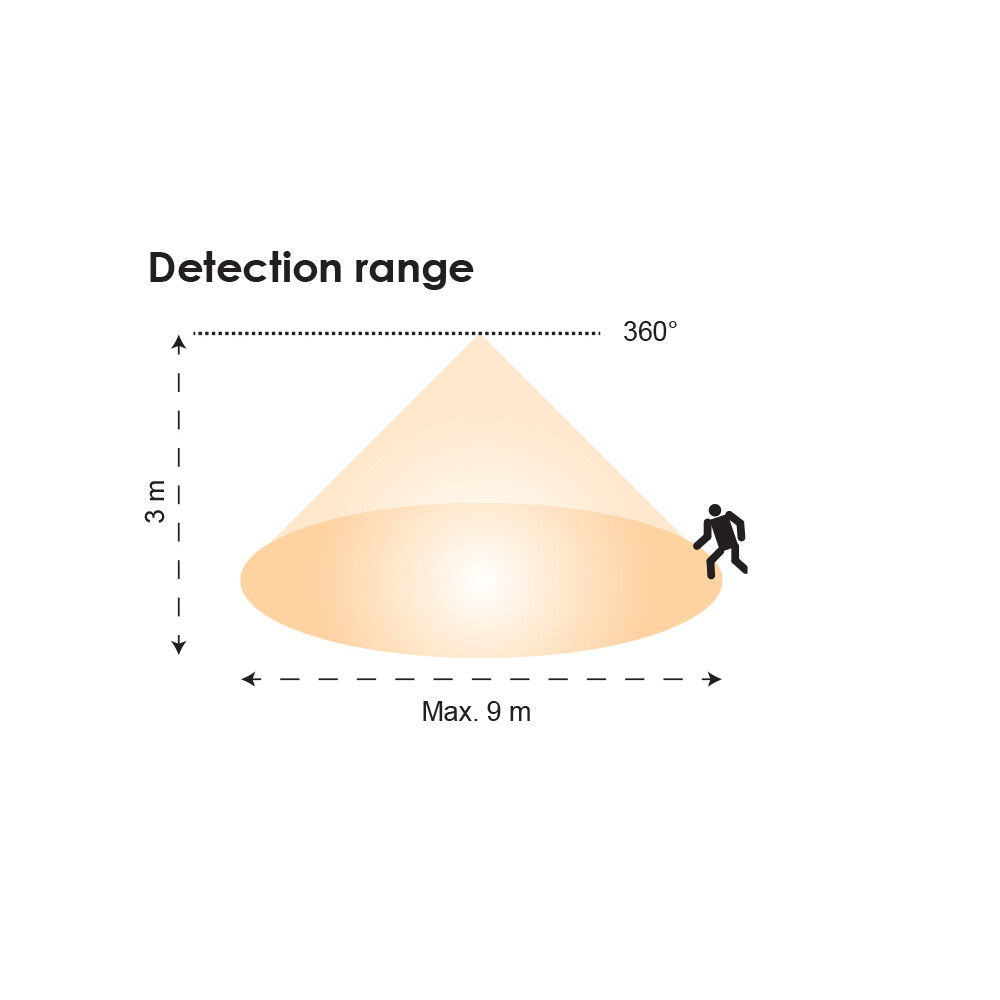

  • Detection distance Max. Ø 9m at 3hm

  • Detection angle 360° , Duration Time / 10sec / 4min adjustable

  • Dawn to dusk adjustable

  • Manual override mode: When the lamp(s) is switched on, turn the lamp(s) off/on twice within 3 seconds, the sensor will go to an 8 hour override mode, during which the lamp(s) will stay on. The sensor will then return to normal detection mode During override mode, turn the lamp(s) on/off twice within 3 seconds or turn off the lamp(s) for over 10 seconds, the sensor will return to normal detection mode.

Performance

  • Dimmable - NO
  • In Built Sensor - YES
  • Sensor Type - PIR

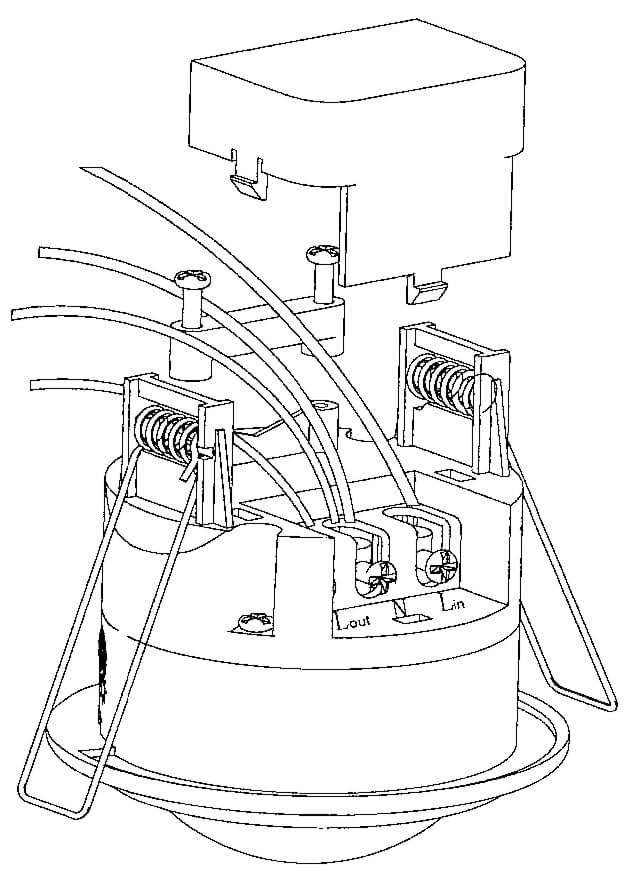

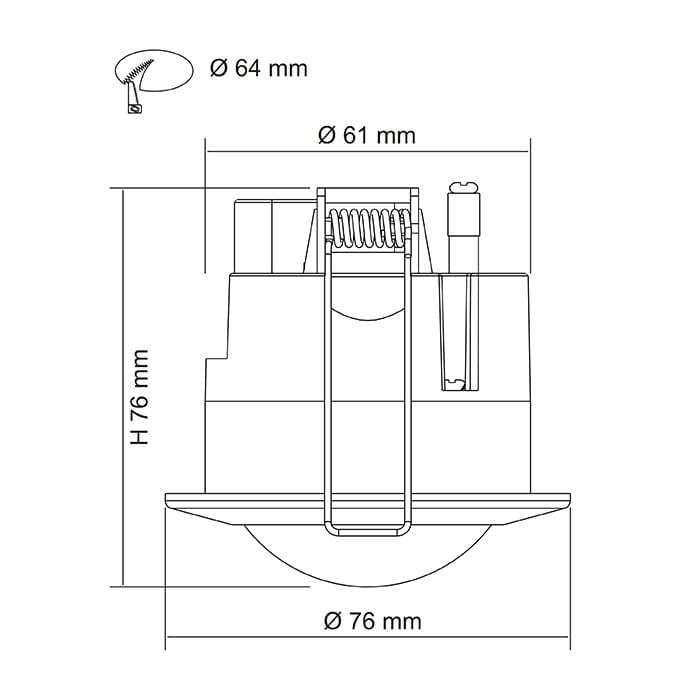

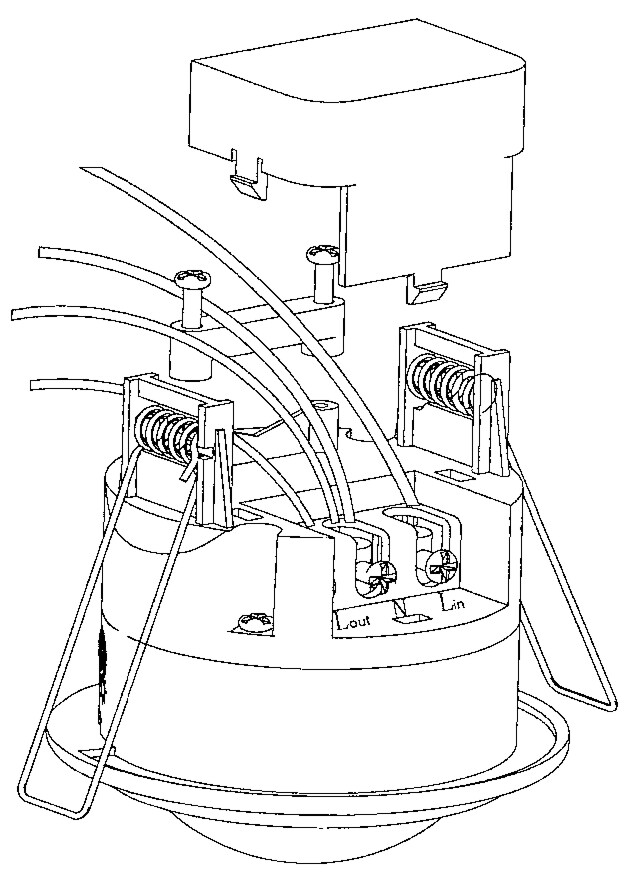

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Body Colour Cut Out
      		Model No. SMS804CR Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour WHITE Cut Out 64
