• SENSORS

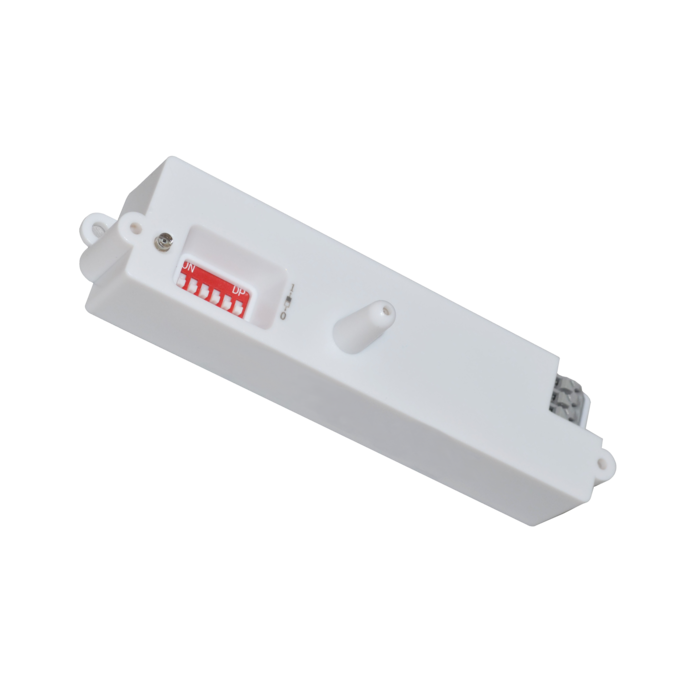

MV SENSOR - SMS830

Microwave motion ON/OFF sensor IP20

Application

Versatile microwave ON/OFF sensor. SAL factory fitted sensor option for approved products only, not for individual sale

Design Specifications

  • Power source: 220-240V/AC

  • Power frequency: 50/60Hz

  • Transmission power: <0.2m/W

  • Rated load: 1000W/5A, Max. incandescent lamp (cosφ=1) 300W/2.5A, Max. fluorescent lamp and LED lamp (cosφ=0.5)

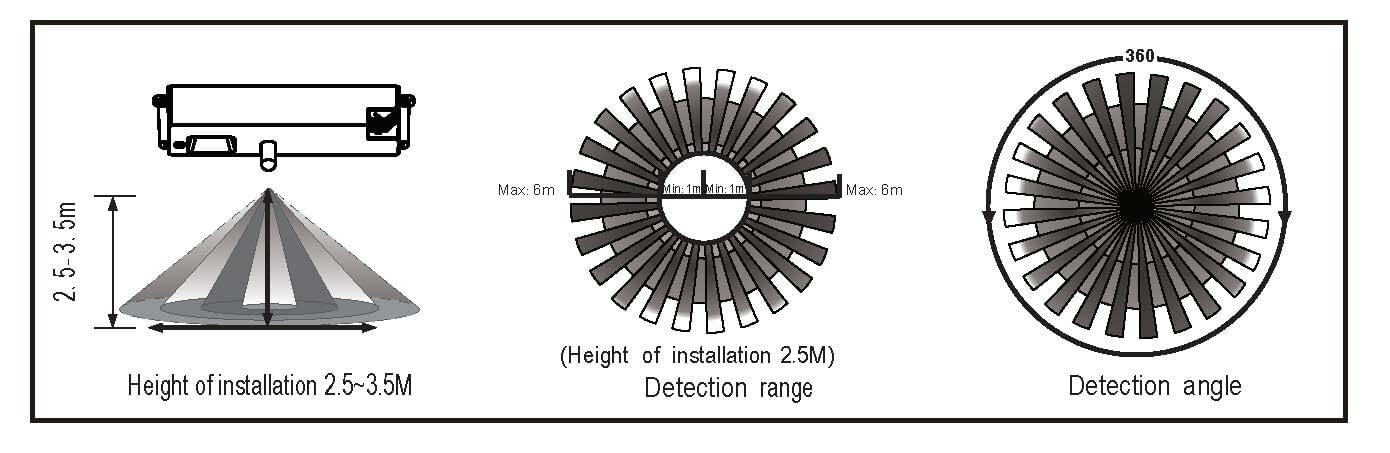

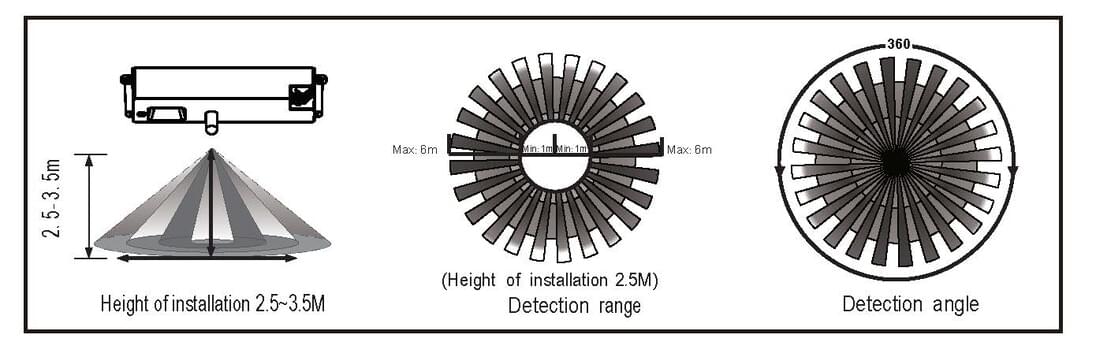

  • HF system: 5.8GHz CW electric wave, ISM band, Detection angle: 360°

Performance

  • Dimmable - NO
  • In Built Sensor - YES
  • Sensor Type - MICROWAVE

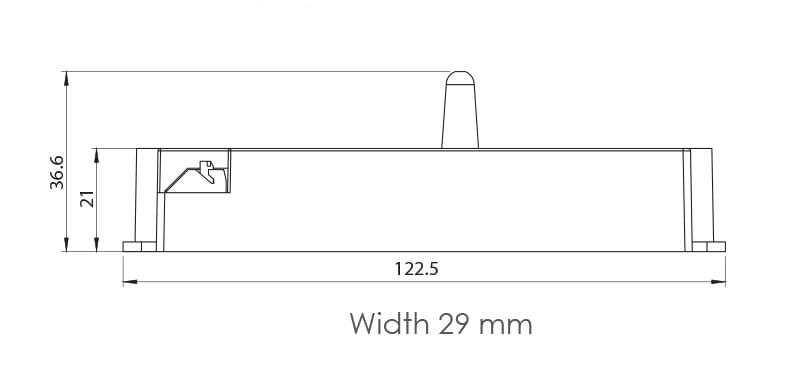

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Body Colour
      		Model No. SMS830 Add to Enquiry Add Remove Remove Input Voltage 240 Power 1000 Body Colour WHITE
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
