• SMART HOME CONTROLS

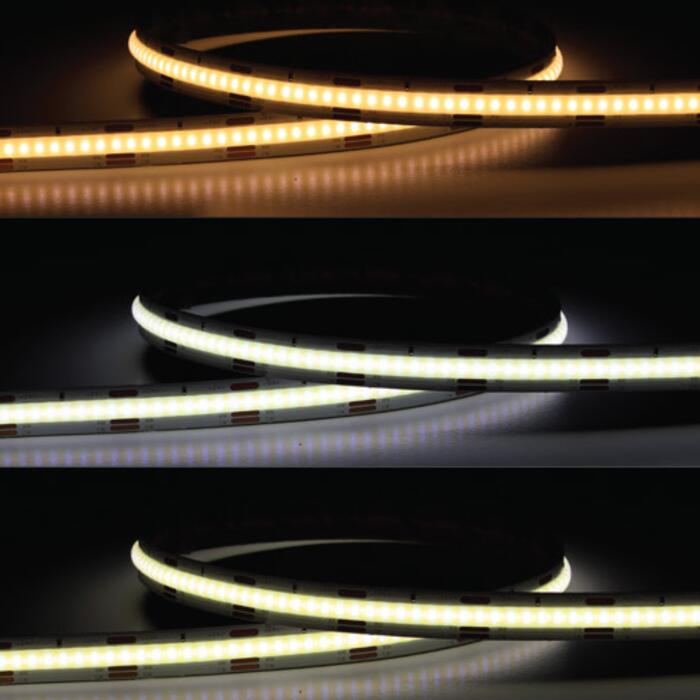

PIXIE FLEXI SMART KIT - FLBP24VCCT/BTAM

PIXIE MASTER DEVICE - 2m or 5m smart CCT tunable COB strip kits, warm white to daylight

Application

Home theatre, bar features, decorative task illumination demanding smart controls

Design Specifications

  • Smart LED strip kit, dimmable via a PIXIE secondary device, or the PIXIE PLUS app

  • Dimming memory function

  • High performance, stable, even light output, pre wired for easy installation, plug and play ready to use and cuttable every 30mm.

  • NOTE: when cutting LED strip kits greater than 50% of the kit length, it is always important to calculate the remaining LED load to reconfirm its compatibility with the existing driver, as driver changes may be required with moderate reduction in loads.

  • Heat-sink required for system performance, refer LED channel options (quick link)

Performance

  • Dimmable - YES
  • Dimmer Type - PIXIE
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Beam Angle Body Colour Dim Watts per metre CCT LEDs Per Metre CRI Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.FLBP24V2CCT/BTAM Input Voltage240 Beam Angle115 Body ColourCLEAR Dim2000(L) x 10(W) x 2(H) Watts per metre6 CCT2700/6500 LEDs Per Metre544 CRI90 Add to Enquiry Add Remove Remove
    Model No.FLBP24V5CCT/BTAM Input Voltage240 Beam Angle115 Body ColourCLEAR Dim5000(L) x 10(W) x 2(H) Watts per metre6 CCT2700/6500 LEDs Per Metre544 CRI90 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
