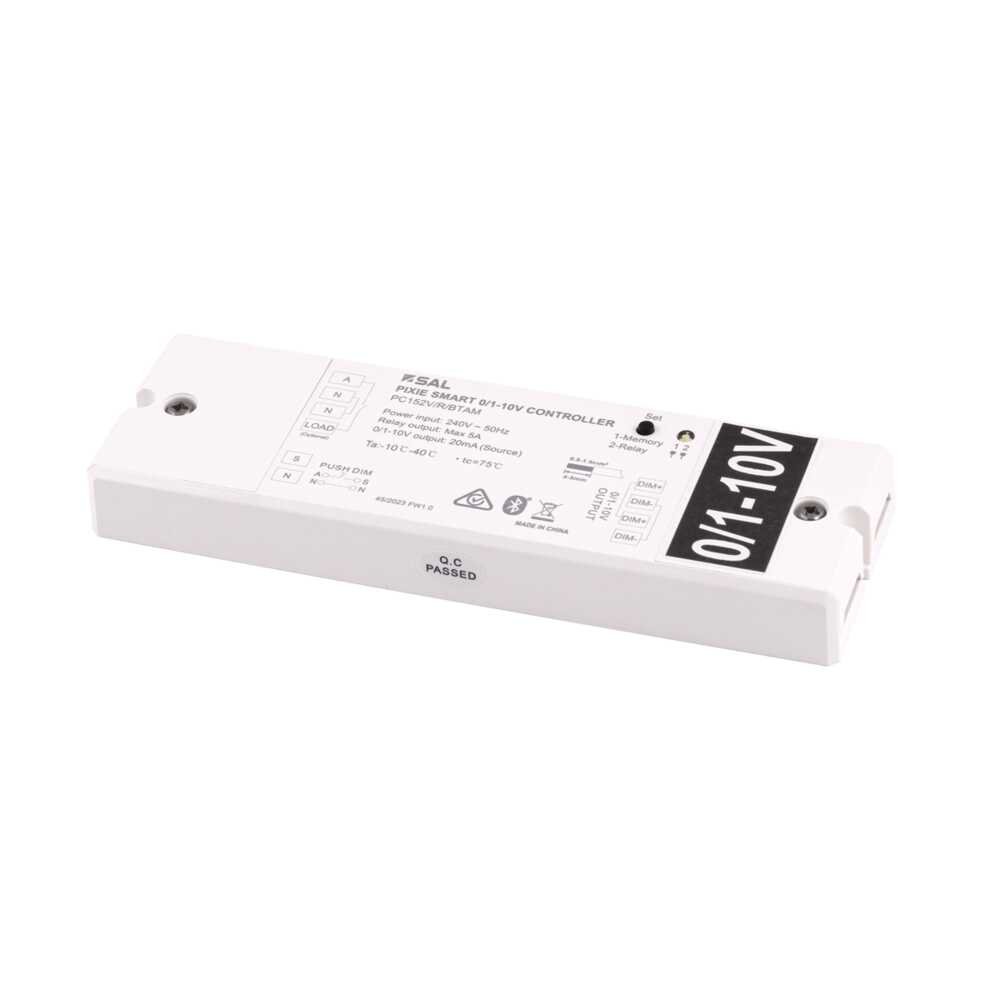

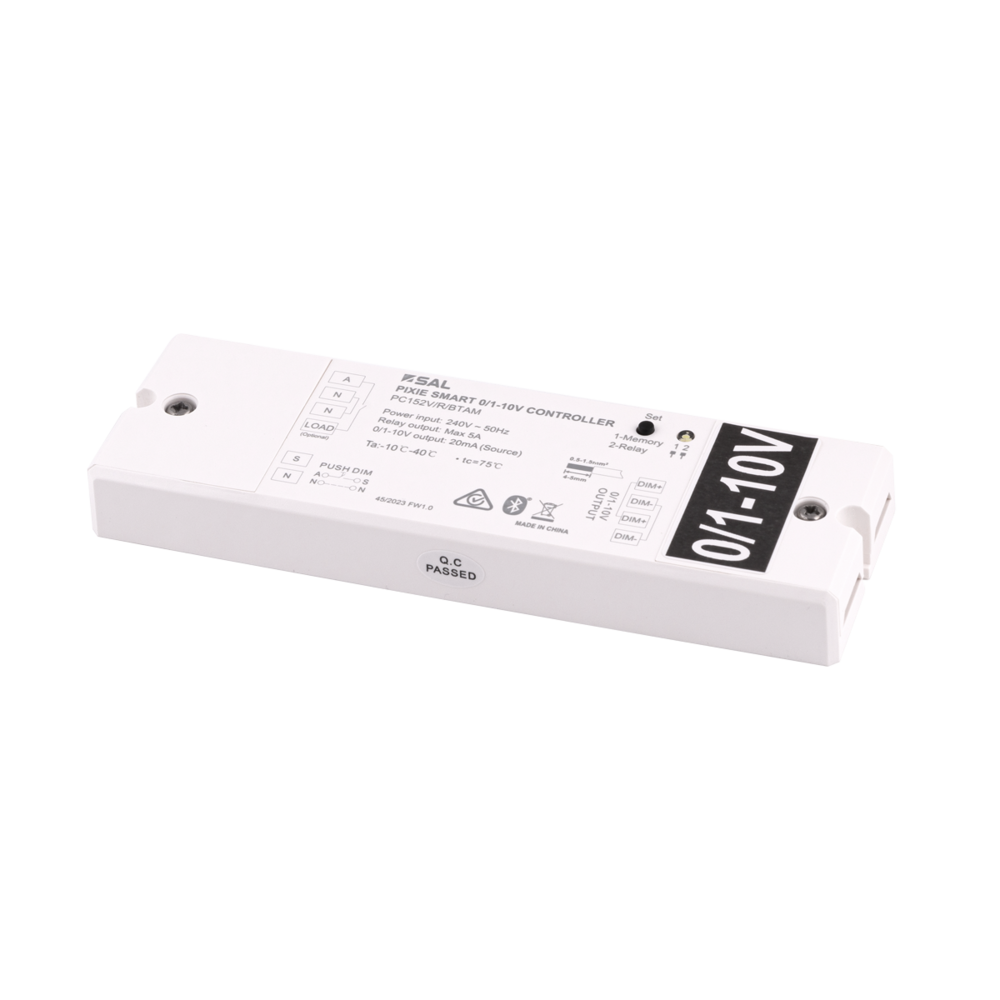

PIXIE 0/1-10V CONTROLLER - PC152/V/R/BTAM

PIXIE MASTER DEVICE - PIXIE Smart 0/1-10V Controller

Application

Designed for dimming all types of 0-10v and 1-10v dimmable drivers, with a built in relay for switching loads that do not dim to zero light output.

Design Specifications

  • Full PIXIE Master Device G3 functionality - dimming, schedules, groups, scenes

  • Broadcast controls to "Switch wire-Group"

  • Built in 20mA source for compatible drivers, built in 5Amp relay with no minimum load requirement

  • Memory Switch - Return to previous level after power outage - ideal for commercial applications

  • Built in PIXIE Mesh Booster circuit

  • Built in BP input for connection of momentary press mechs and 3rd party systems to control

Performance

  • Dimmable - YES
  • Dimmer Type - 0/1-10V
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Body Colour Dim
      		Model No. PC152V/R/BTAM Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour WHITE Dim 145(L) x 47(W) x 16(H)
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
