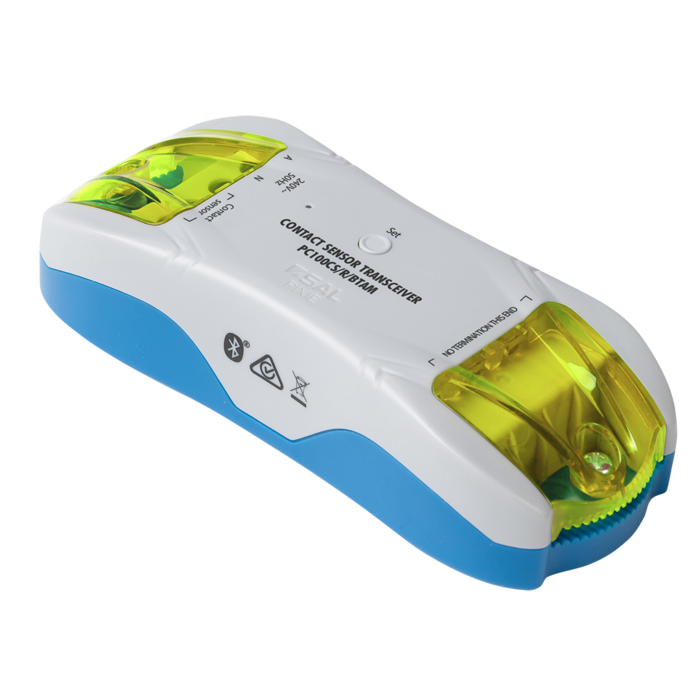

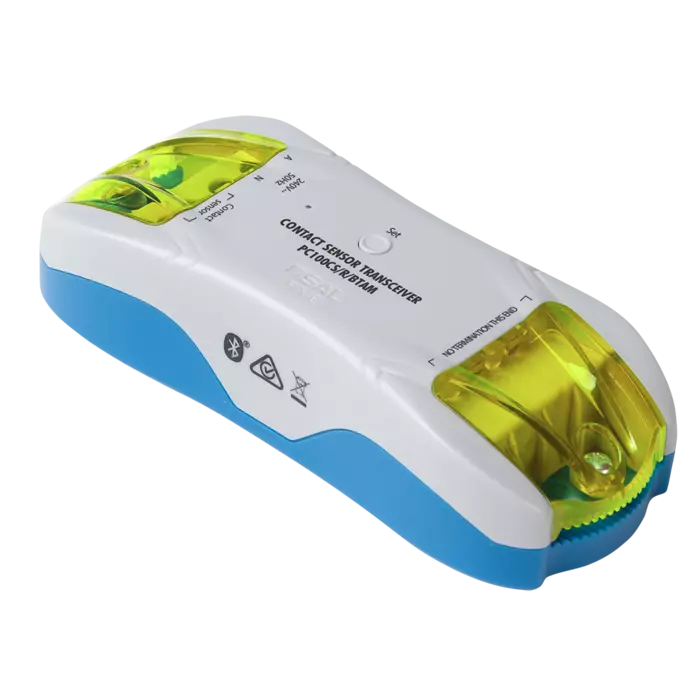

PIXIE CONTACT SENSOR TRANSCEIVER - PC100CS/R/BTAM
PIXIE MASTER DEVICE - SMART HOME receives contact sensor status and report to PIXIE system
Application
Ideal for residential and commercial applications where monitoring door/window’s open/close status is required, ideal for security
Design Specifications
Connect with 1 contact sensor/reed switch (sold separately), monitor live status
Trigger events within PIXIE system
Trigger events of other system (3rd party integration required)
Double insulated
Standby power 0.5W
Bluetooth technology

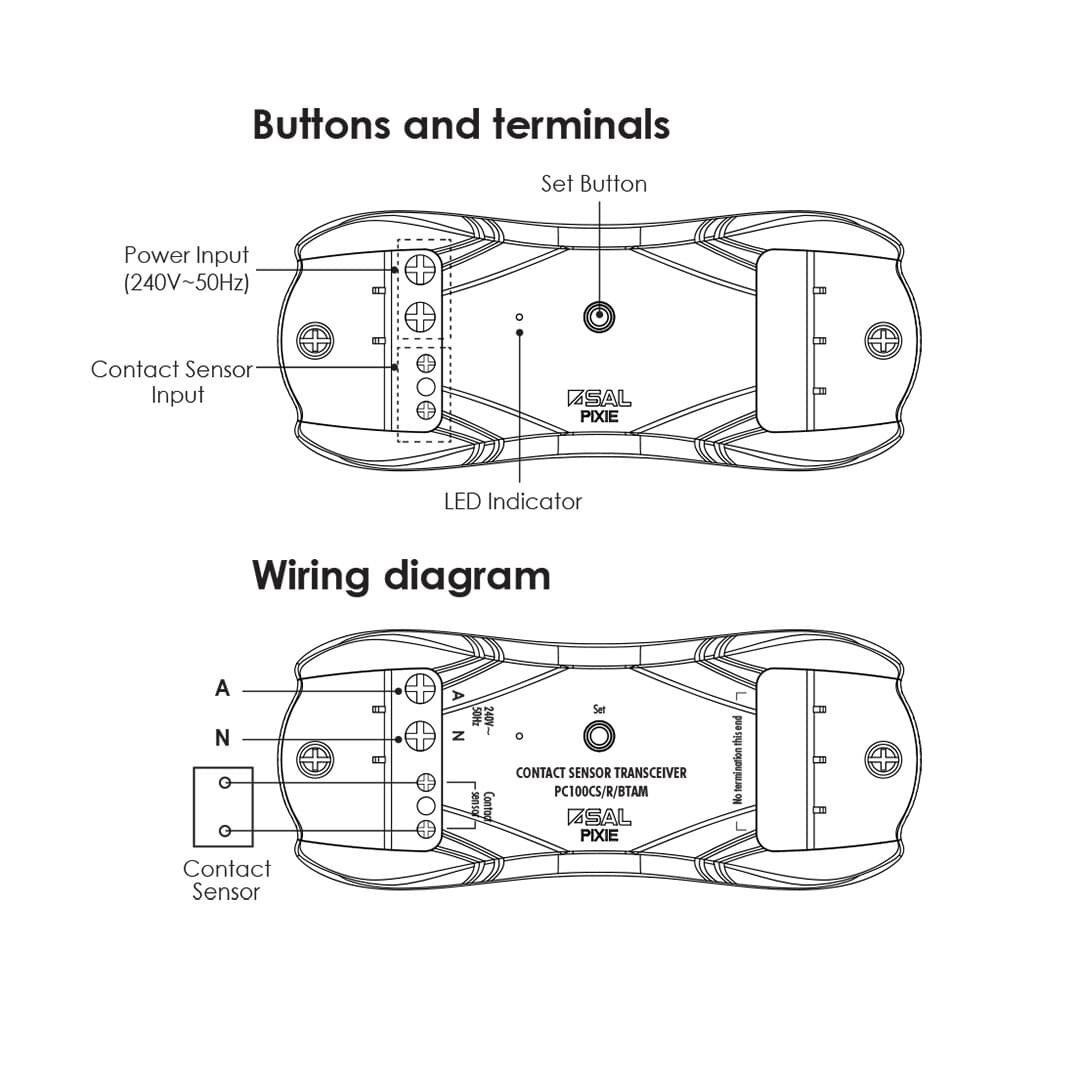

- Dimensions - Wiring Diagrams
-
- Technical Specifications
Product Model No. Input Voltage Body Colour Dim Add to Enquiry - Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
Model No.PC100CS/R/BTAM Input Voltage240 Body ColourGREY / BLUE Dim110(L) x 40(W) x 26(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
