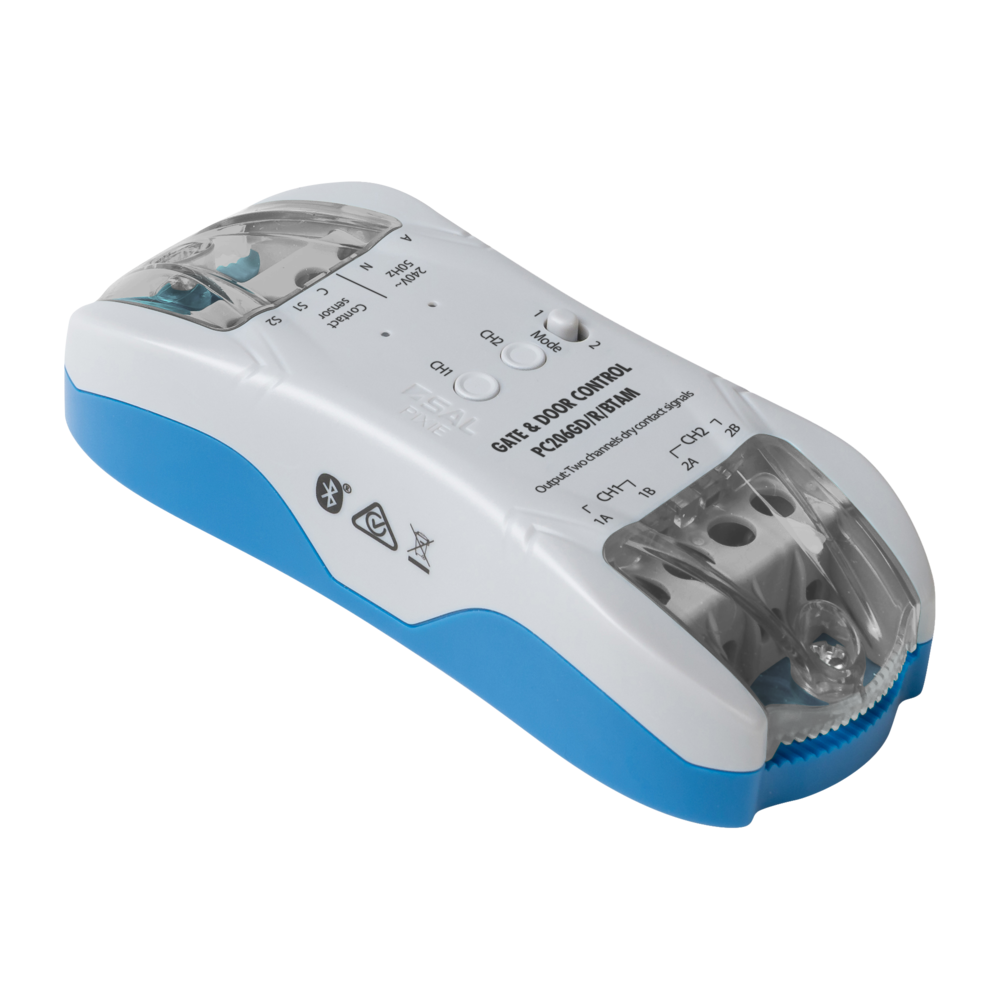

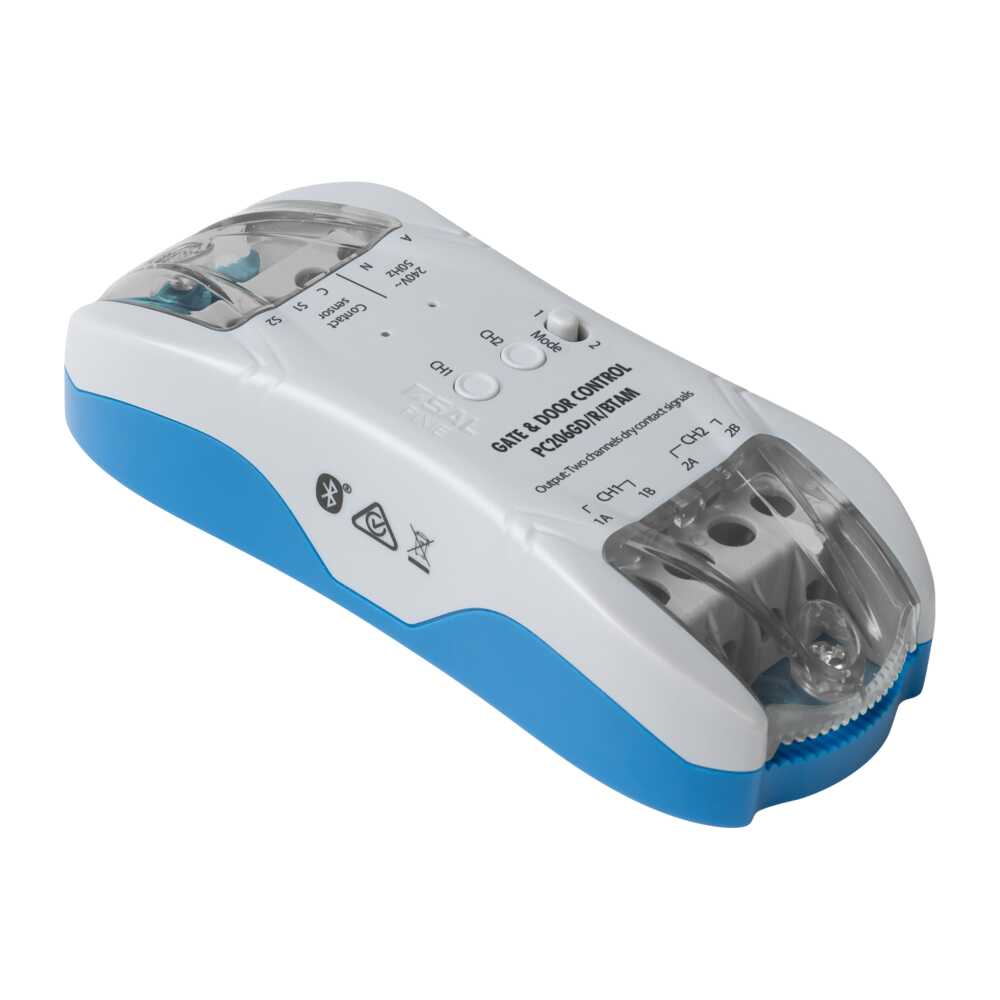

PIXIE GATE & DOOR CONTROL - PC206GD/R/BTAM

PIXIE MASTER DEVICE - SMART HOME gate and garage door control for diverse applications

Application

Ideal for motorised gate, garage door control or other applications that requires dry contact signal to open/close and contact sensor to monitor the open/close status

Design Specifications

  • Operates with up to 2 contact sensors/reed switch (sold separately) to monitor the open/close status and control up to 2 garage doors

  • Double insulated

  • Designed with two test buttons and LED indicators for easy commissioning

  • Standby power 0.5W

  • Bluetooth wireless technology

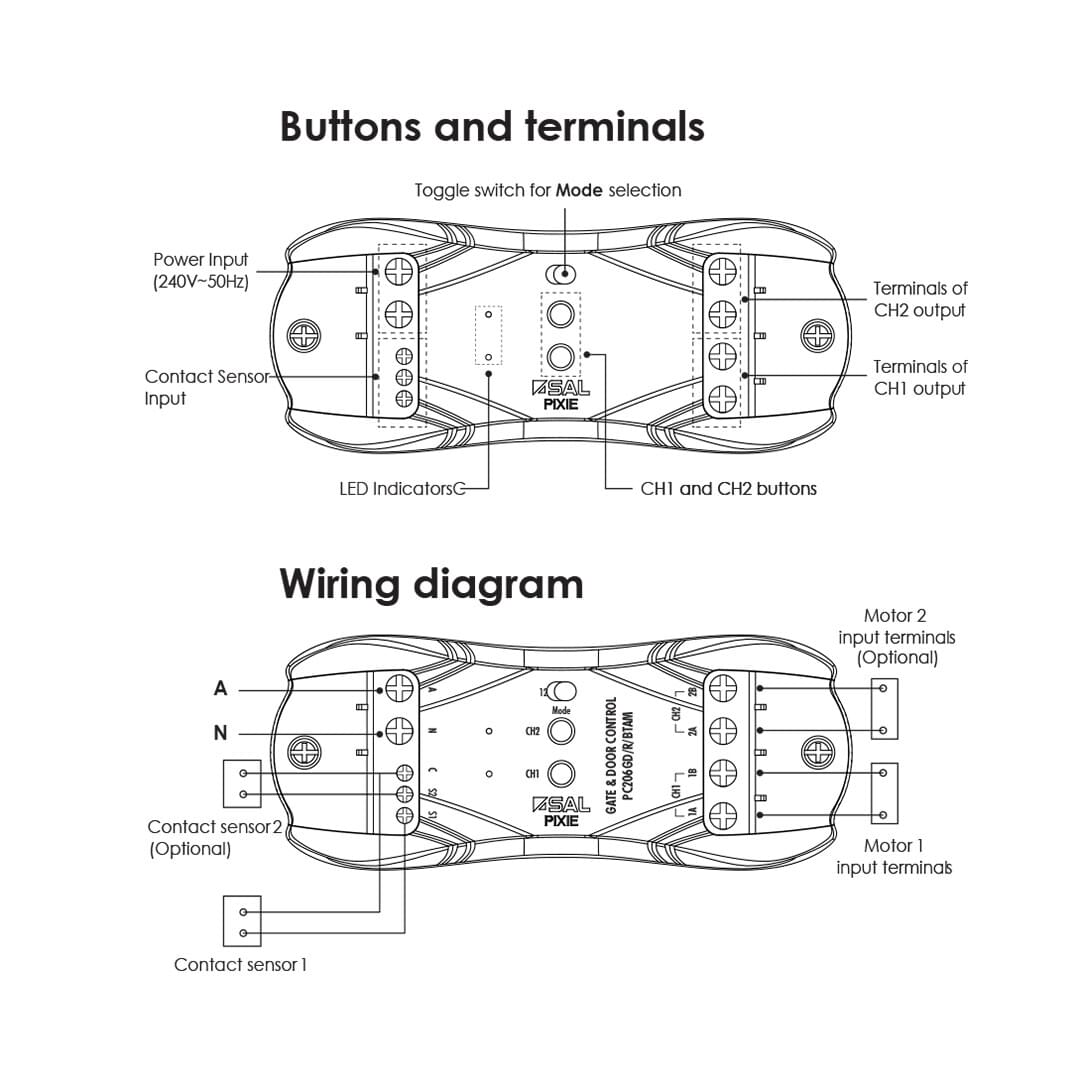

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Body Colour Dim
      		Model No. PC206GD/R/BTAM Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour GREY / BLUE Dim 110(L) x 40(W) x 26(H)
