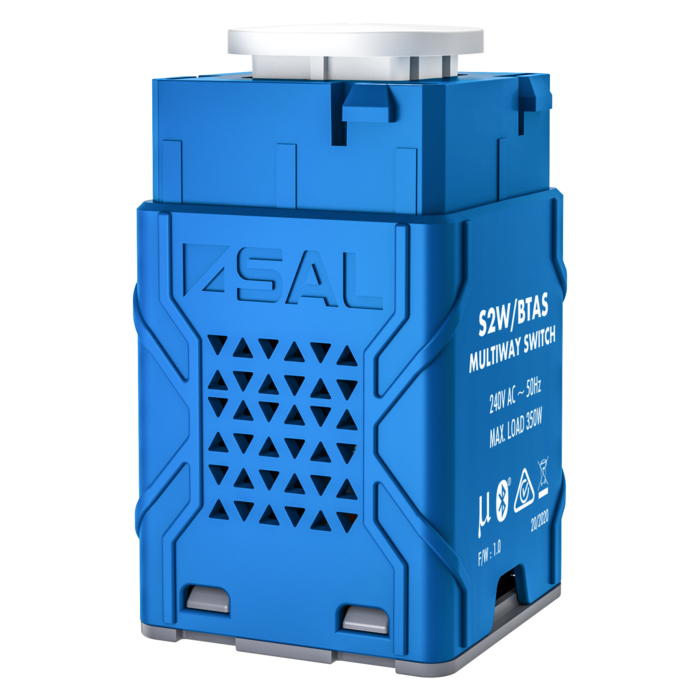

PIXIE MULTI-WAY SWITCH G3 - S2W/BTAS

PIXIE SECONDATY DEVICE - SMART HOME digital push button 2 way or 3 way switch or dimming control

Application

Ideal for residential designs, commercial interior spaces requiring multiple location device control

Design Specifications

  • Digital remote push button control to enable 2 way or 3 way switch or dimming control.

  • Three (3) complimentary key caps provided to suit most switch plates

  • Complies to AS/NZS 60669.2.1, easy to retrofit

  • Dim or switch with ease, with no messy additional wiring circuits required. Two wire termination mech.

  • Switch or dimming control is achieved only in conjunction with PIXIE smart switch or PIXIE smart dimmer. All devices must be paired once installed, for functionality.

  • Fully compatible with the PIXIE app and PIXIE PLUS app

Performance

  • Dimmable - NO

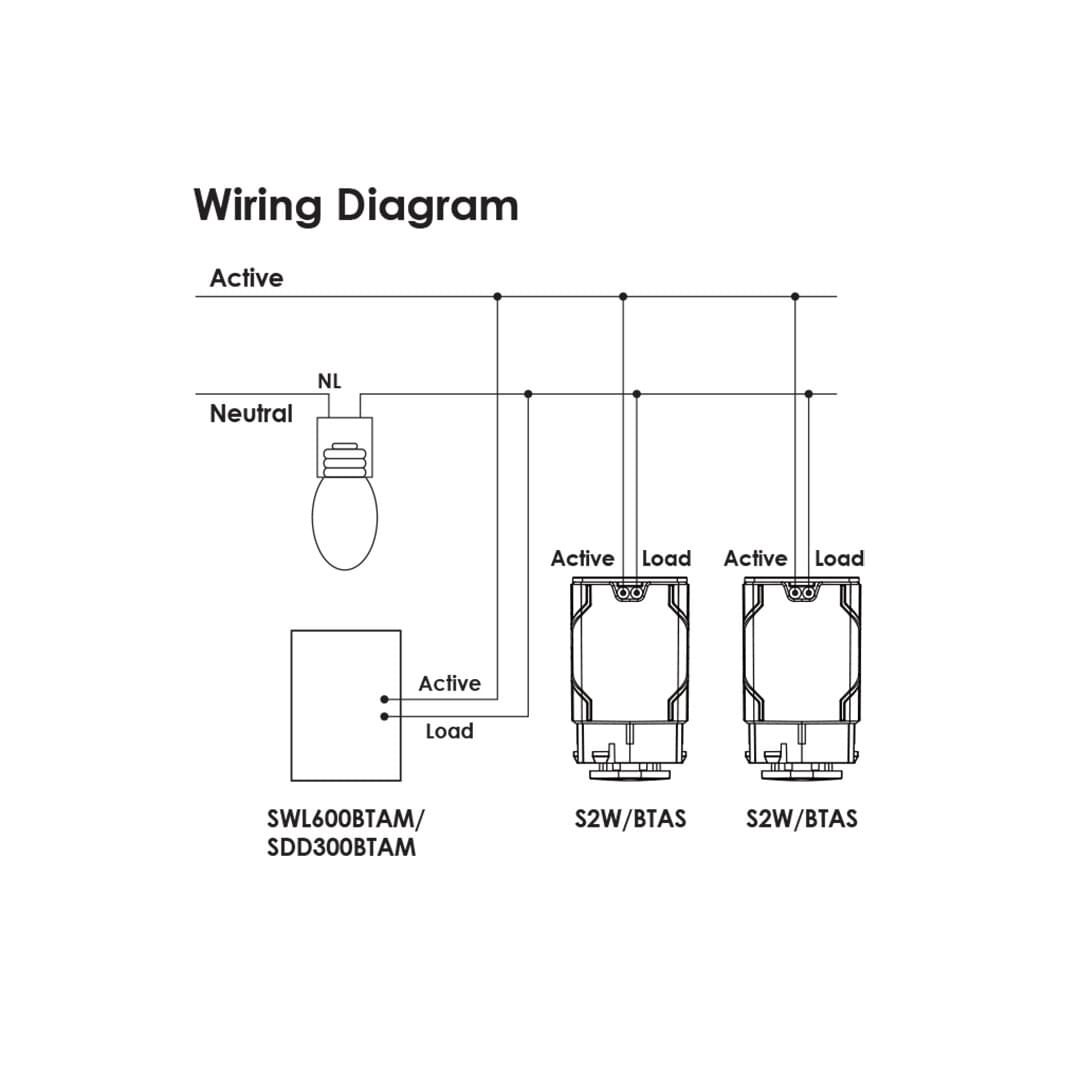

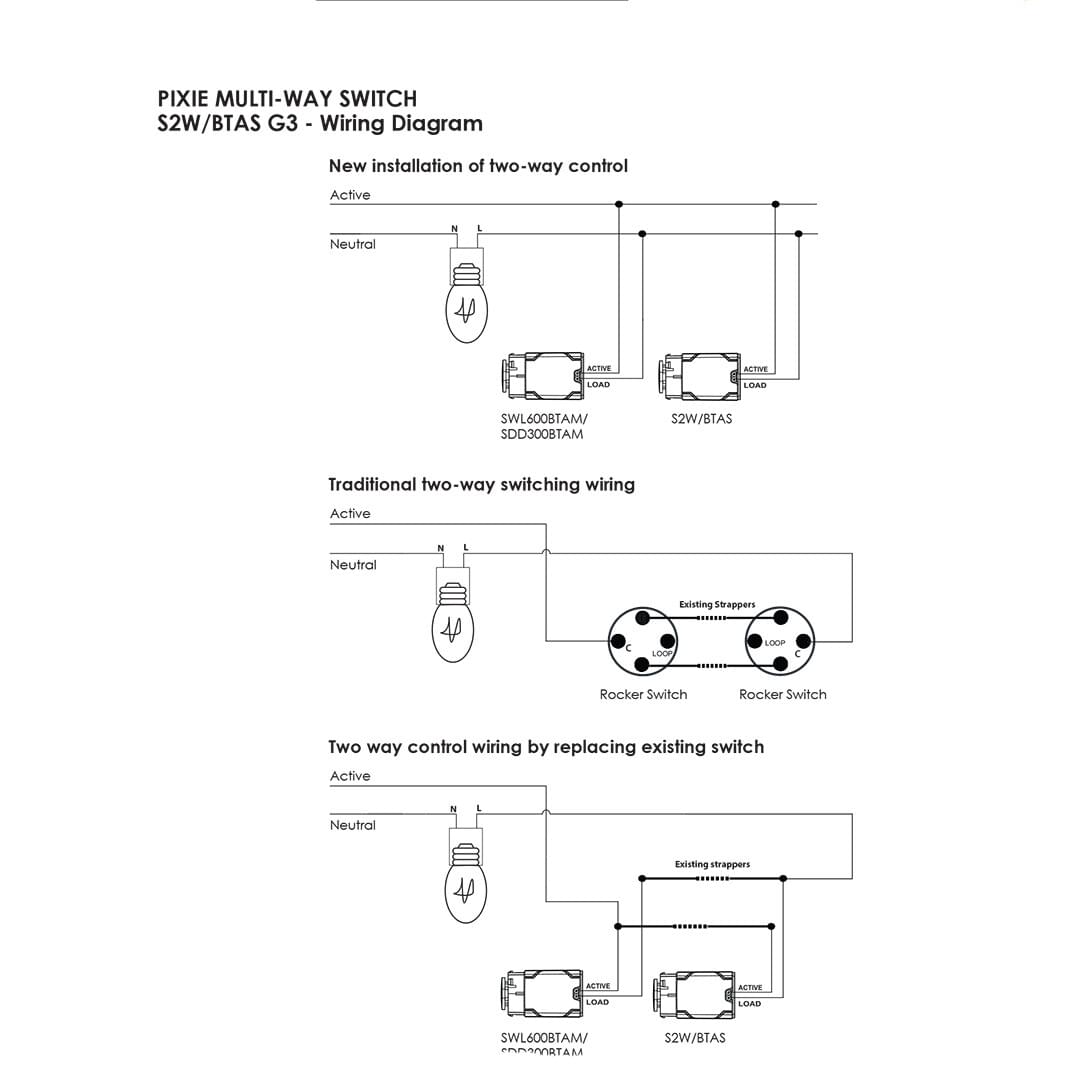

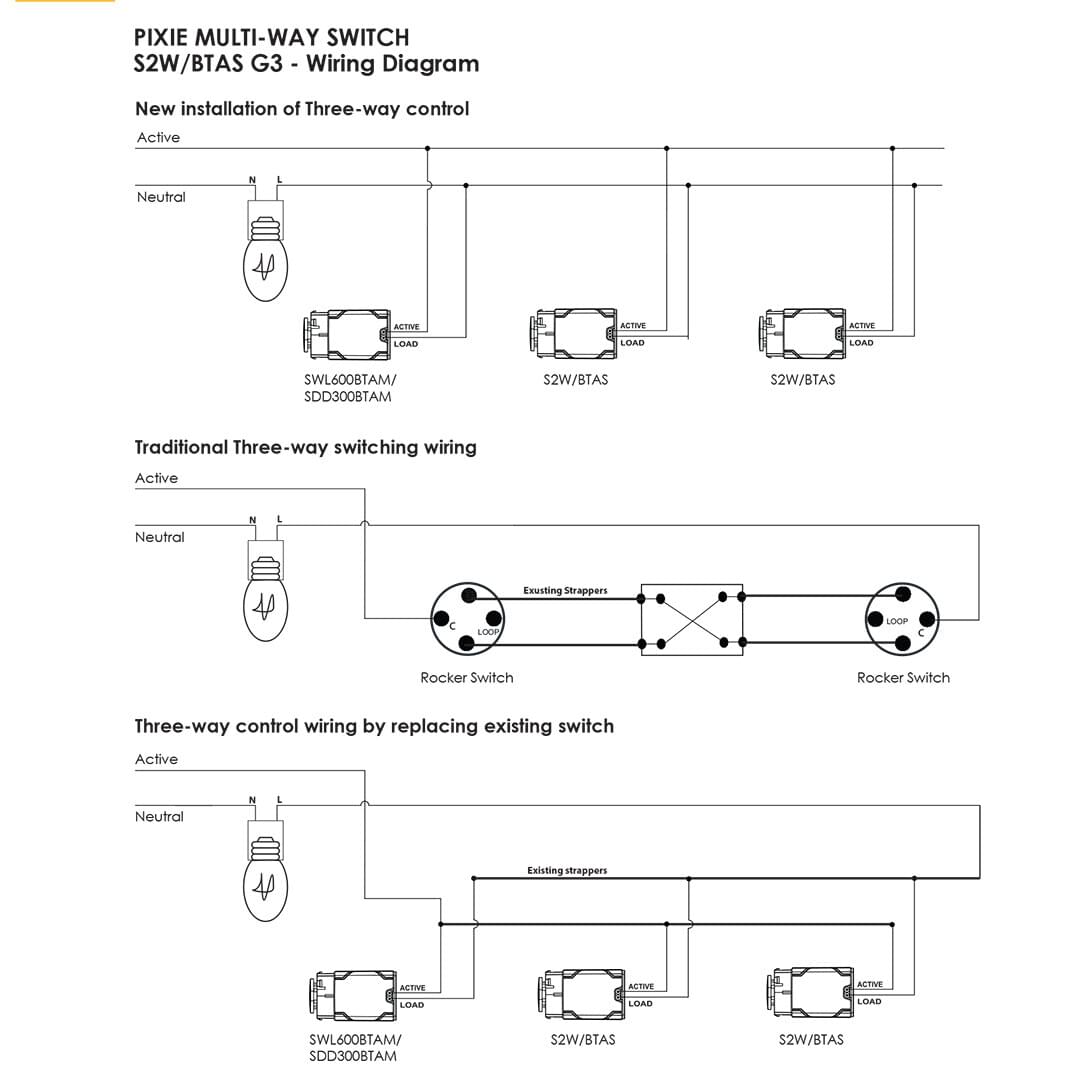

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Body Colour Dim
      		Model No. S2W/BTAS Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour WHITE Dim 42(L) x 24(W) x 24(H)
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
