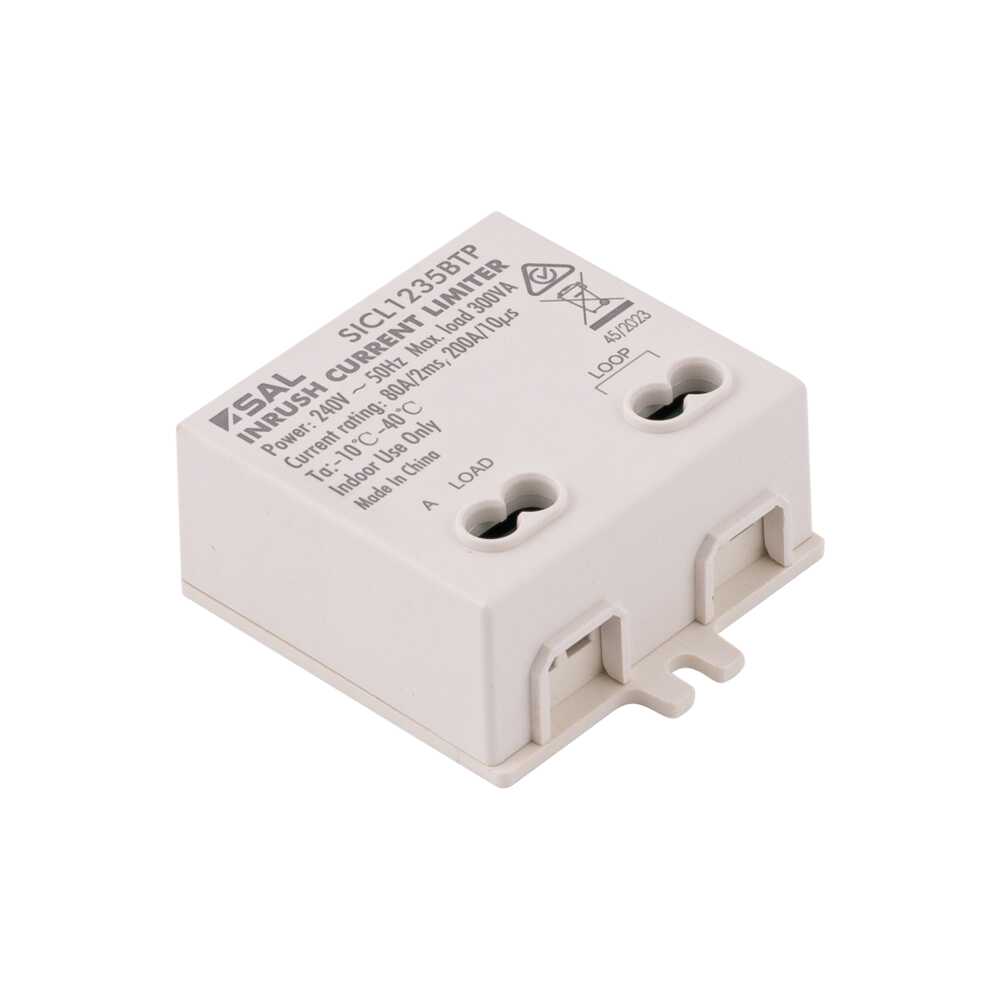

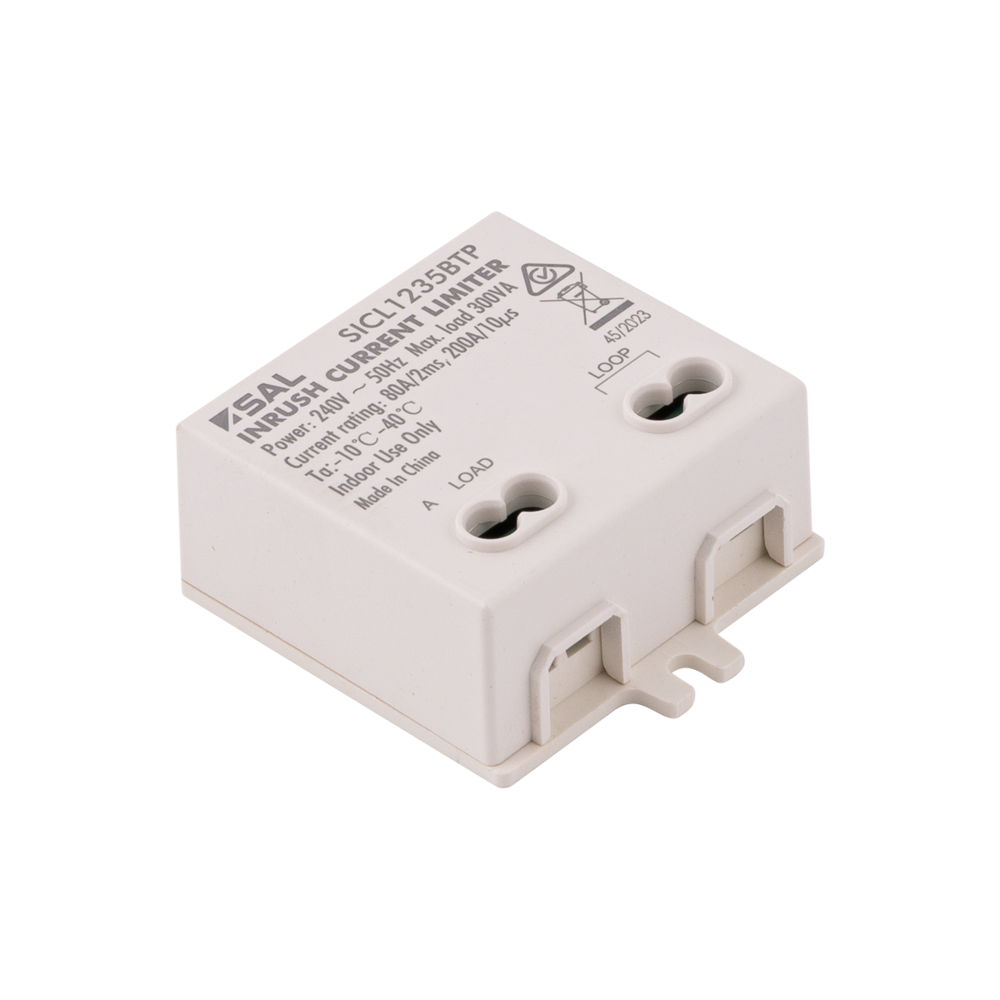

INRUSH CURRENT LIMITER - SICL1235BTP

Inrush current limiter, 2-wire electrical accessory

Application

The SAL Inrush current limiter is a 2-wire electrical accessory, that is designed to reduce the high starting current caused by capacitive load or inductive load (typically but not limited to LED luminaires with in-built drivers, constant voltage drivers, transformers etc), so as to protect the switching device in the circuit (typically a switch, a relay, a sensor with relay, etc) from being damaged by the excessive inrush current.

Design Specifications

  • Sleek low profile form factor

  • 2-wire design for easy installation

  • 2 loop terminals

  • Reduce high inrush current caused by poor loads

  • Current rating - 80A for 2ms, 200A for 100μs

  • Max load 300VA

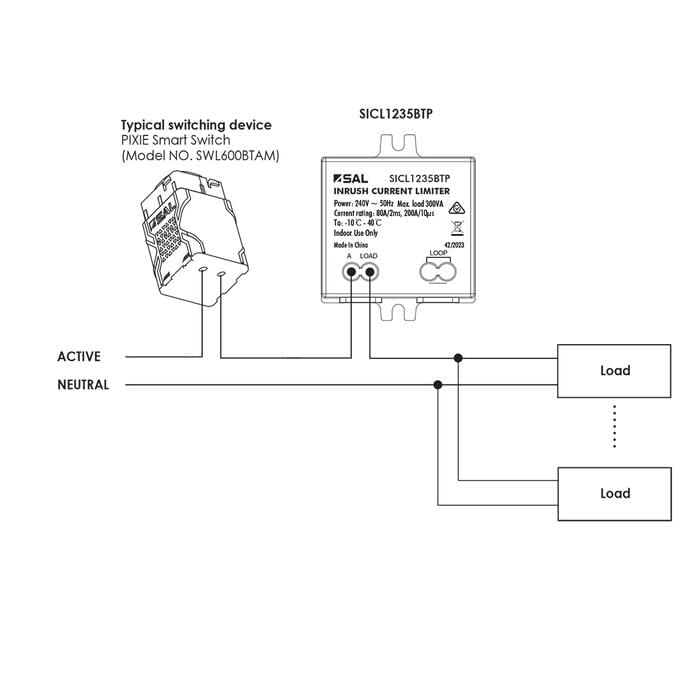

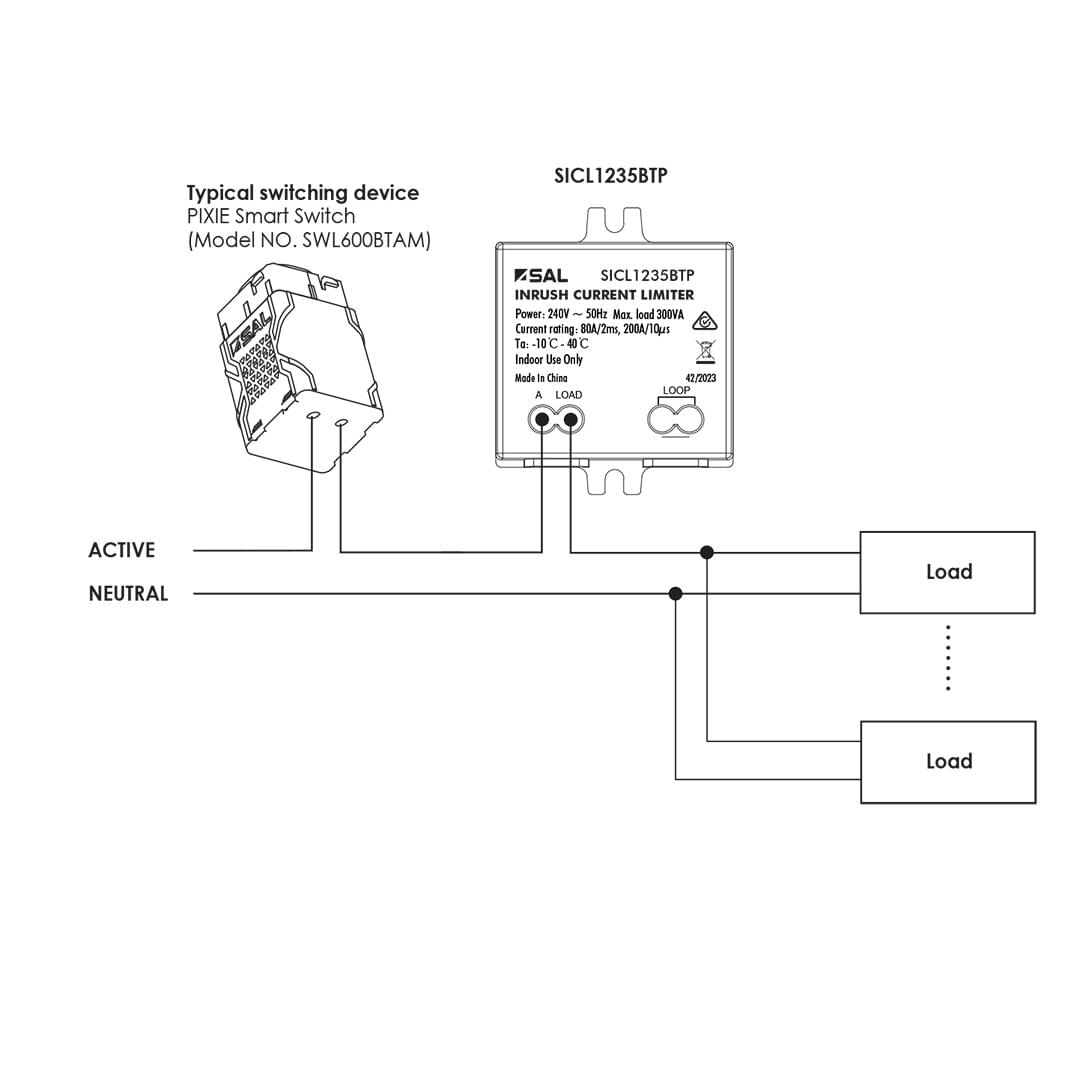

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage voltAmp Body Colour Dim

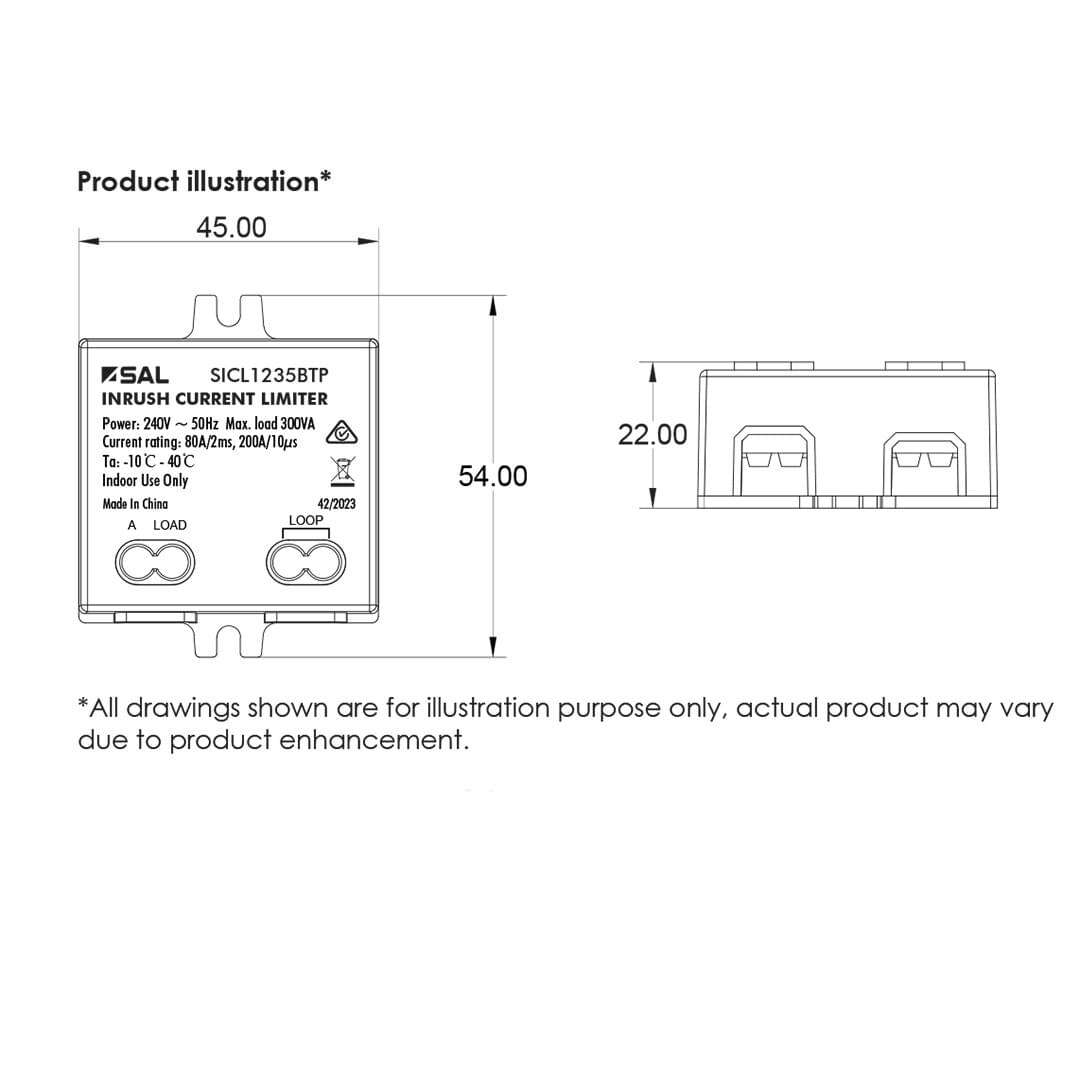

      		Model No. SICL1235BTP Add to Enquiry Add Remove Remove Input Voltage 240 voltAmp 300 Body Colour WHITE Dim 54(L) x 45(W) x 22(H)
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
