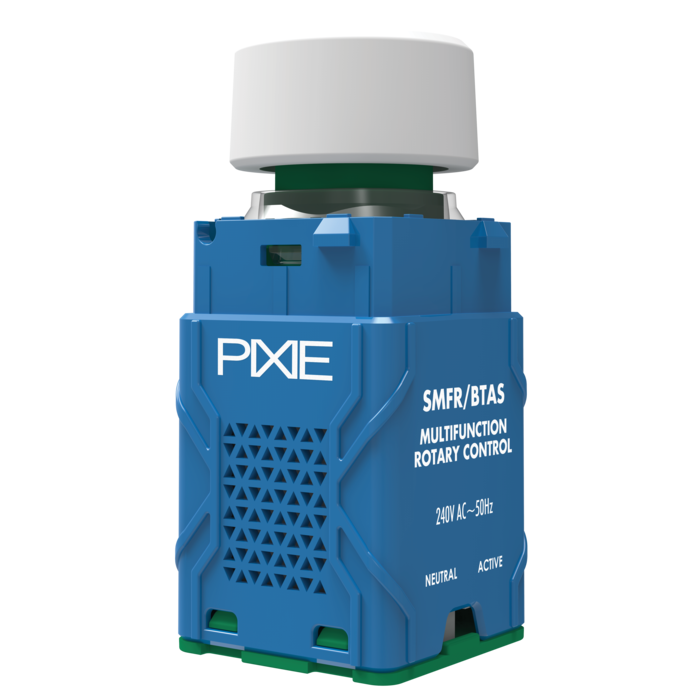

PIXIE MULTIFUNCTION ROTARY CONTROL - SMFR/BTAS

PIXIE SECONDARY DEVICE - SMART HOME digital multifunction ROTARY controller

Application

Ideal for residential designs, commercial interior spaces requiring multiple location device control

Design Specifications

  • Digital ROTARY control to enable multifunction switching or dimming control, simply with an active and neutral termination.

  • Multifunction Rotary controller with built-in LED feedback

  • Easy to install, dim and switch with ease, fits most wall plates, with two dials included.

  • Switch or dimming control is achieved only in conjunction with paired PIXIE Master devices.

  • Fully compatible with PIXIE and PIXIE PLUS, perfect for Blind control UP - STOP - DOWN or AC fan control LOW - MEDIUM - HIGH.

  • Recall up to 2 scenes with PIXIE or 6 scenes from this single device in PIXIE PLUS

Performance

  • Dimmable - YES
  • Dimmer Type - PAIRED WITH PIXIE MASTER DIMMER

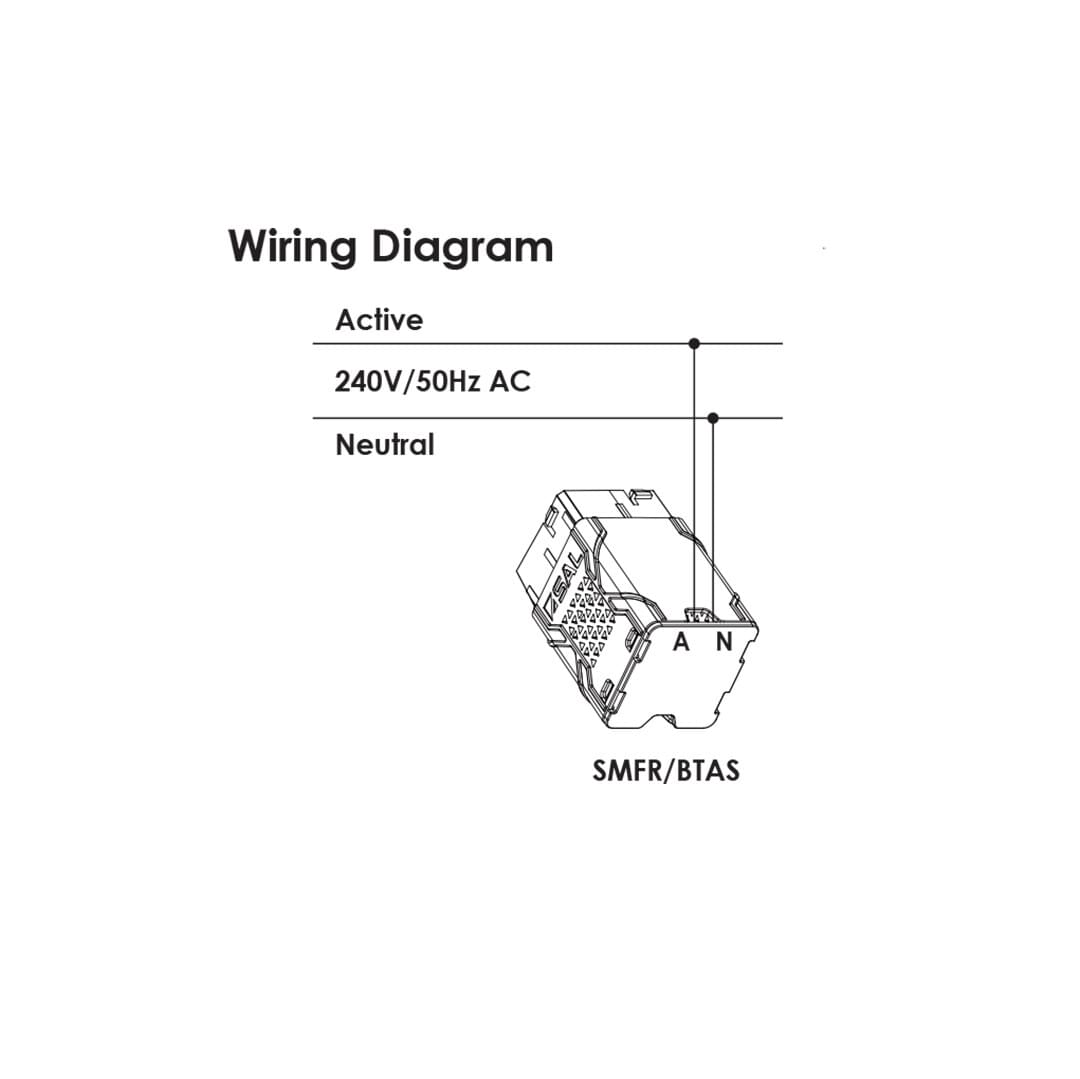

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Body Colour Dim
      		Model No. SMFR/BTAS Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour WHITE DIAL Dim 42(L) x 24(W) x 24(H)

      Optional BLACK knob to order - SDKS/BK/BTP (short version for generic wall plate) and SDKL/BK/BTP (long version for PIXIE Ambience wall plate)

    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
