• SMART HOME CONTROLS

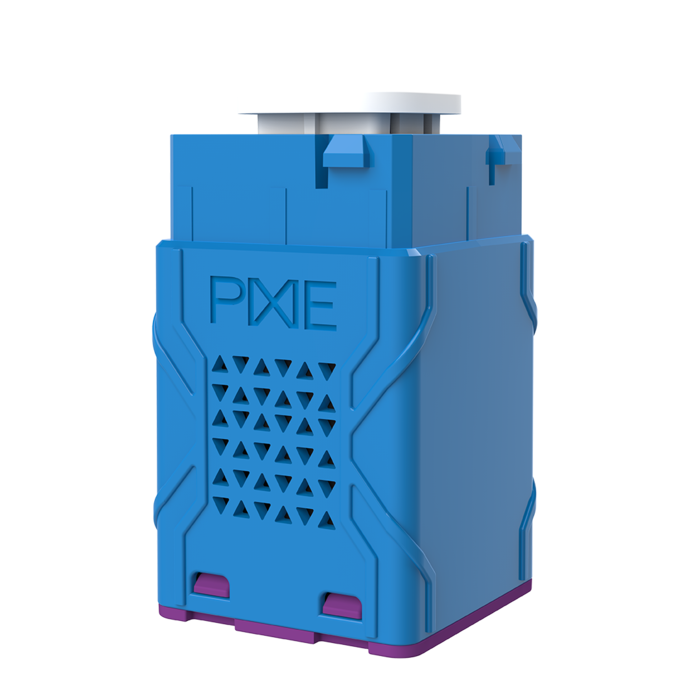

PIXIE TIMER SWITCH G3 - STS600BTAM

PIXIE MASTER DEVICE - SMART HOME digital push button timer switch from 1 minute to 24 hours

Application

Ideal for residential designs and commercial interior spaces requiring precise digital scheduling and energy saving opportunities

Design Specifications

  • Digital push button control with three (3) complimentary key caps provided to suit most switch plates

  • Easy to install, (1) minute to (24) hour programmable delay time

  • Easy navigation and simple time delay selection when using the app.

  • As a PIXIE MASTER device, functionality is achieved with all compatible loads, see installation sheet for details

  • With the inclusion of the SAL Gateway and the internet, you can control your PIXIE devices from anywhere in the world

  • Support override function and restart delay timer functions

Performance

  • Dimmable - NO

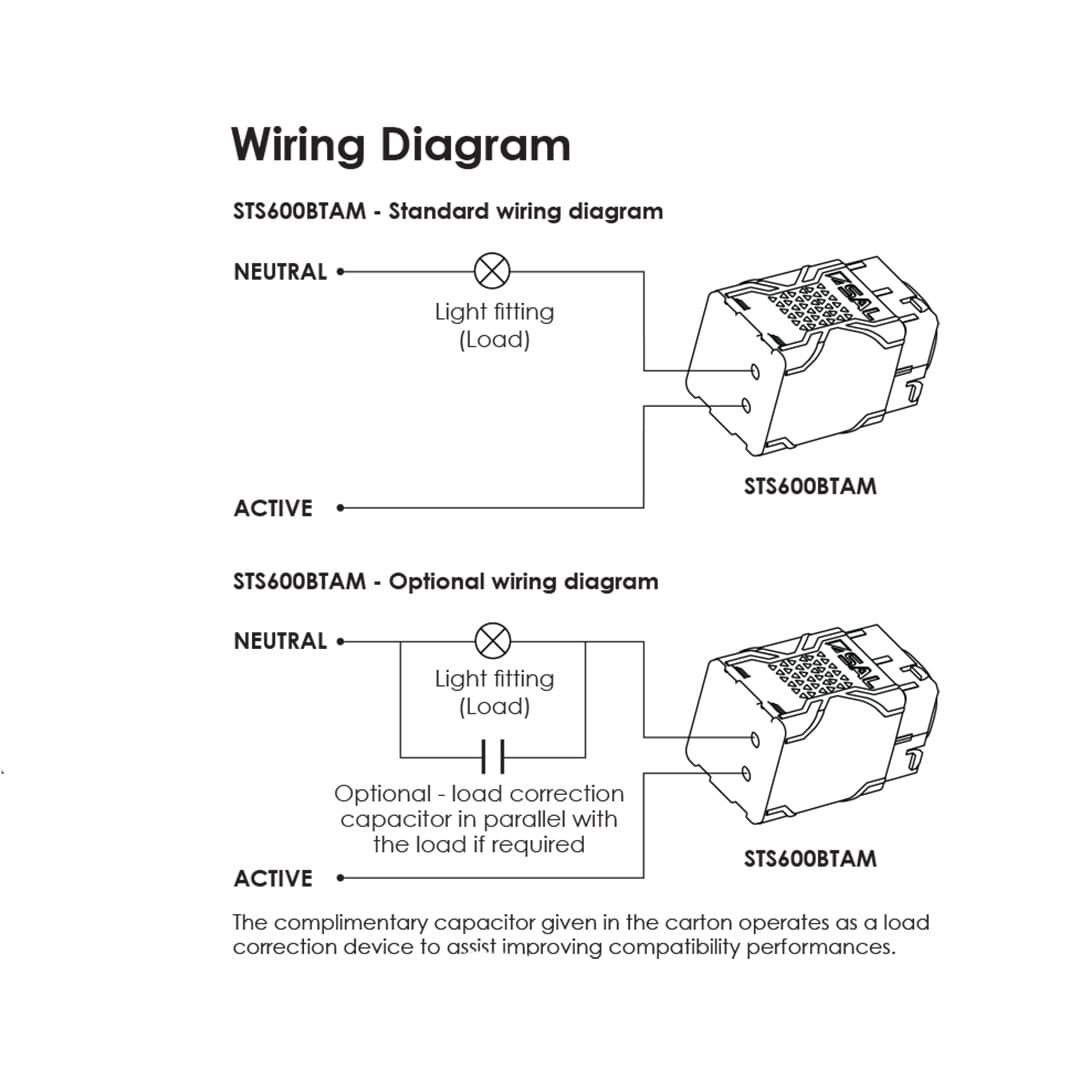

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.STS600BTAM Input Voltage240 Body ColourBLUE Dim42(L) x 24(W) x 24(H) Add to Enquiry Add Remove Remove

    9W minimum load rating is subject to product capability, this size load may require the inclusion of the LOAD capacitor included in the product carton.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
