• LED EMERGENCY

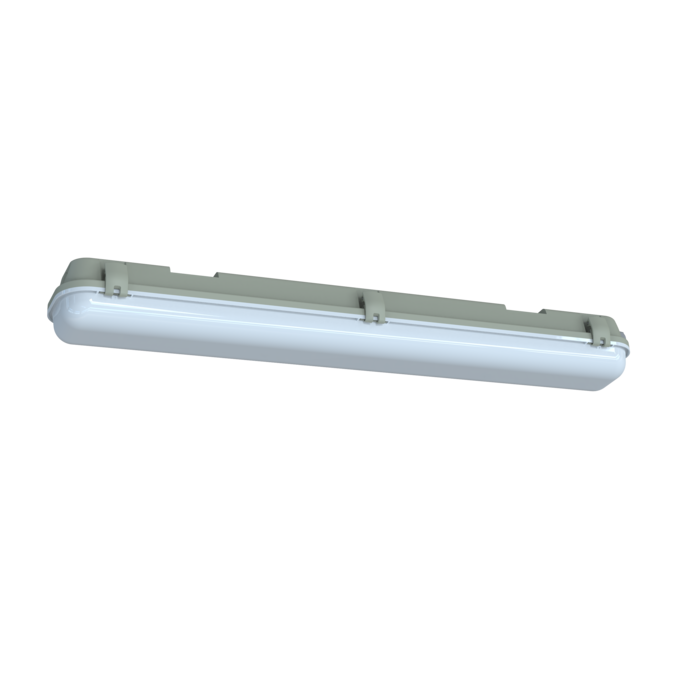

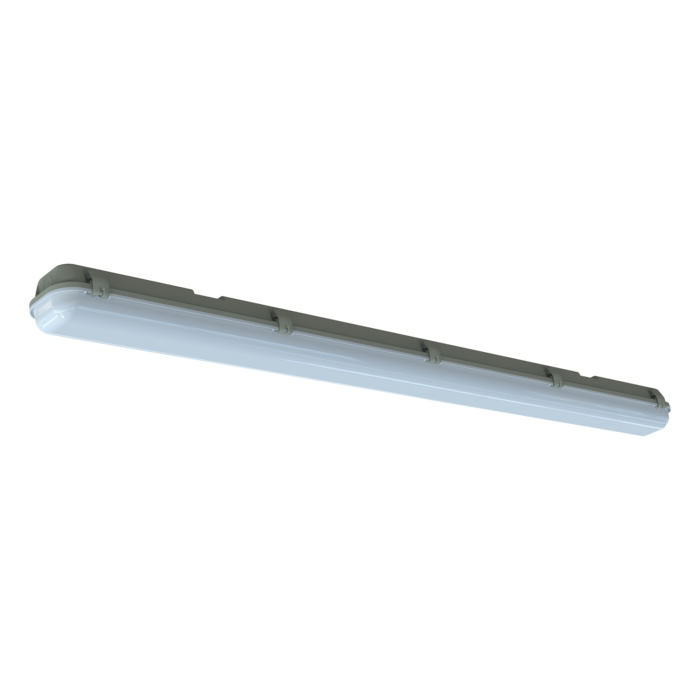

SOL-ECO SL9725EM - 20/40W

MAINTAINED OR NON-MAINTAINED, LED emergency weatherproof batten, 20 or 40 watt models, with selectable CCT and power, IP65

Application

Multi-purpose, ceiling or suspension mount commercial or industrial applications

Design Specifications

  • Vandal resistant design, robust PC body and UV stabilized polycarbonate diffuser, fitted polycarbonate clips

  • Integral non-dimmable LED driver

  • Compliant to AS/NZS2293 Emergency Lighting & Exit Signs, guaranteed minimum 90 minutes emergency mode function with LiFePO4 battery technology

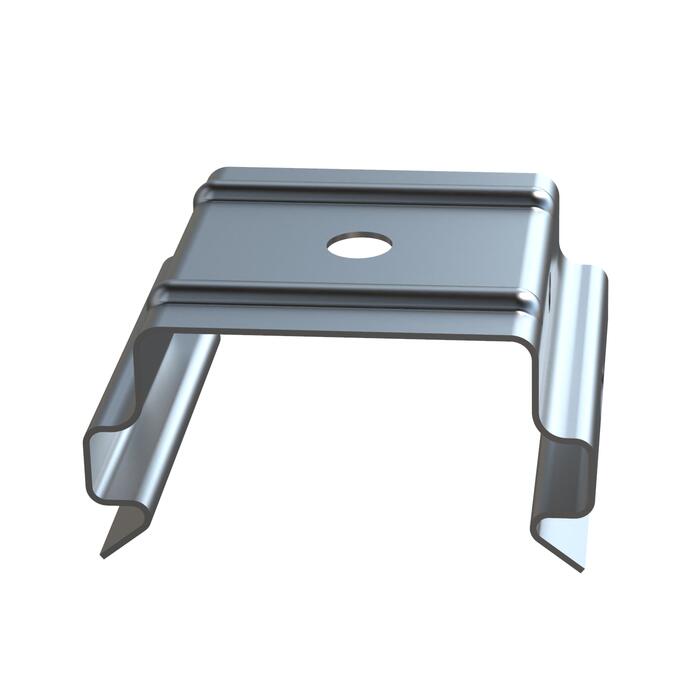

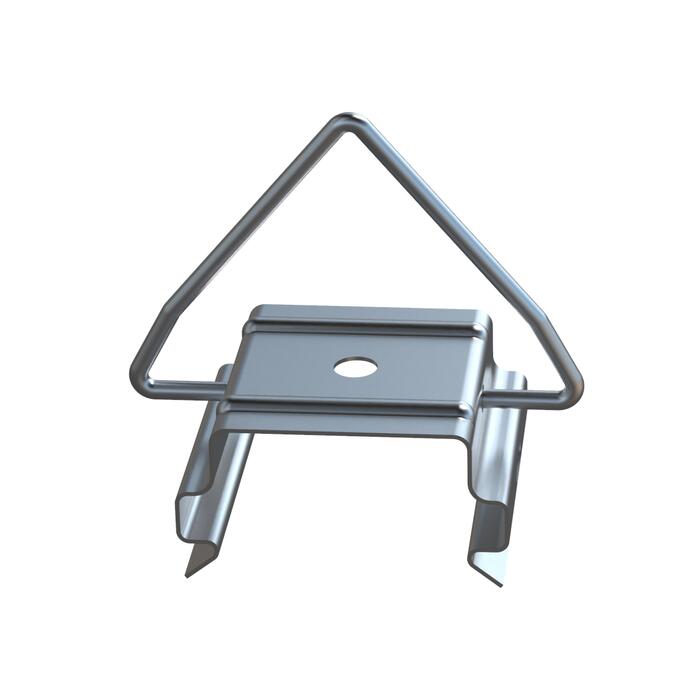

  • Installation types - Surface mount (standard), if Suspended (two off, SSI1512 wire suspension kits are required).

  • Emergency classification (20w) D25@C0, D50@C90, (40w) D25@C0, D50@C90

Performance

  • Dimmable - NO
SOL-ECO SL9725EM -
SOL-ECO SL9725EM -
SOL-ECO SL9725EM -
SOL-ECO SL9725EM -
SOL-ECO SL9725EM -
COMING SOON
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power CCT Lumens Multiple Wattage IPART VEET Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SL9725/20EM Input Voltage240 Power20 CCT3000/4000/5700 Lumens2100/2300/2150 Multiple Wattage10/20 IPARTN/A VEETN/A Body ColourGREY Dim653(L) x 99(W) x 76(H) Add to Enquiry Add Remove Remove
    Model No.SL9725/40EM Input Voltage240 Power40 CCT3000/4000/5700 Lumens4100/4500/4200 Multiple Wattage20/40 IPART VEET Body ColourGREY Dim1253(L) x 99(W) x 76(H) Add to Enquiry Add Remove Remove

    Important notes: (1) Lumens (lm) shown are at full rated power  (2) In the interest of transport and safety, emergency products are supplied with the battery disconnected. (3) In addition to specific emergency commissioning instructions, the battery MUST be connected at the time of installation. (4) Continual use in emergency mode greater than 240 hours without recharge, will result in battery failure and void battery warranty.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
