• LED WEATHERPROOF

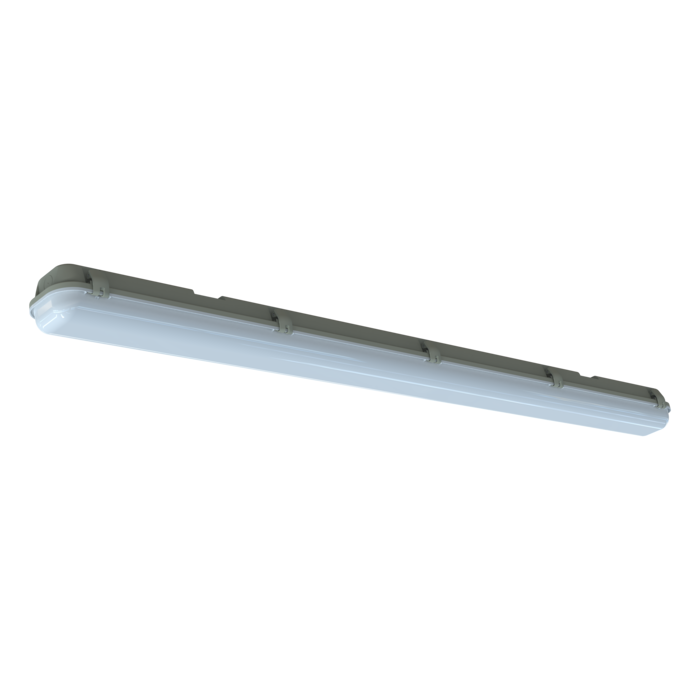

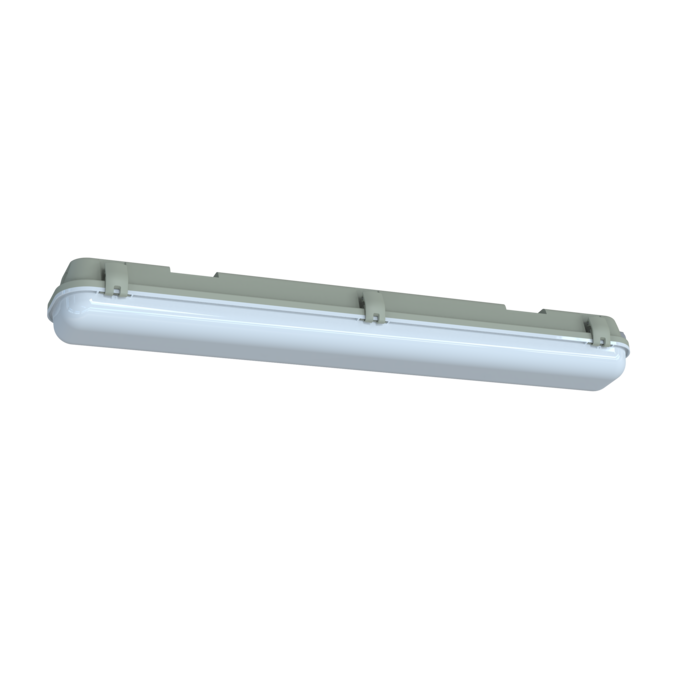

SOL-ECO SL9725EM - 20/40W

MAINTAINED OR NON-MAINTAINED, LED emergency weatherproof batten, 20 or 40 watt models, with selectable CCT and power, IP65

Application

Multi-purpose, ceiling or suspension mount commercial or industrial applications

Design Specifications

  • Vandal resistant design, robust PC body and UV stabilized polycarbonate diffuser, fitted polycarbonate clips

  • Integral non-dimmable LED driver

  • Compliant to AS/NZS2293 Emergency Lighting & Exit Signs, guaranteed minimum 90 minutes emergency mode function with LiFePO4 battery technology

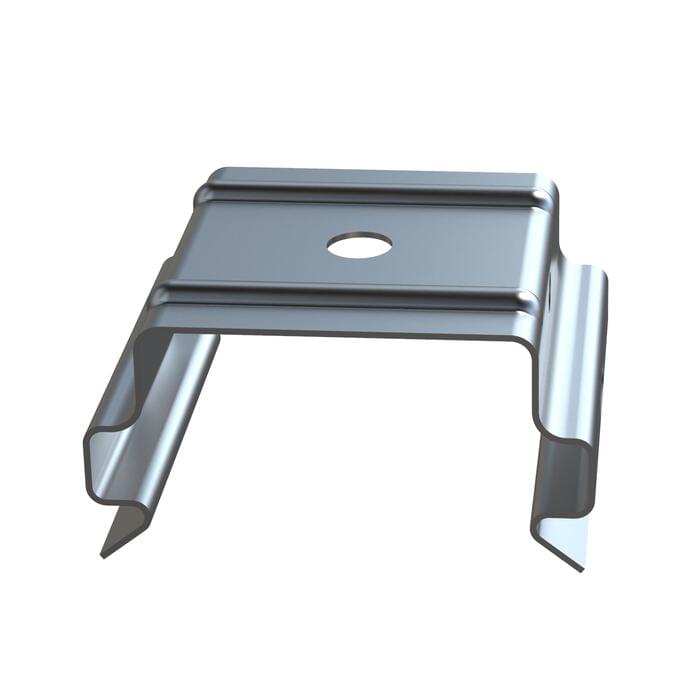

  • Installation types - Surface mount (standard), if Suspended (two off, SSI1512 wire suspension kits are required).

  • Emergency classification (20w) D25@C0, D50@C90, (40w) D25@C0, D50@C90

Performance

  • Dimmable - NO
SOL-ECO SL9725EM -
SOL-ECO SL9725EM -
SOL-ECO SL9725EM -
SOL-ECO SL9725EM -
SOL-ECO SL9725EM -
COMING SOON
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Multiple Wattage Lumens CRI CCT Beam Angle Body Colour Dim IPART VEET REES
      		Model No. SL9725/20EM Add to Enquiry Add Remove Remove Input Voltage 240 Power 20 Multiple Wattage 10/20 Lumens 2100/2300/2150 CRI 80 CCT 3000/4000/5700 Beam Angle 120 Body Colour GREY Dim 653(L) x 99(W) x 76(H) IPART N/A VEET N/A REES N/A
      		Model No. SL9725/40EM Add to Enquiry Add Remove Remove Input Voltage 240 Power 40 Multiple Wattage 20/40 Lumens 4100/4500/4200 CRI 80 CCT 3000/4000/5700 Beam Angle 120 Body Colour GREY Dim 1253(L) x 99(W) x 76(H)

      Important notes: (1) Lumens (lm) shown are at full rated power  (2) In the interest of transport and safety, emergency products are supplied with the battery disconnected. (3) In addition to specific emergency commissioning instructions, the battery MUST be connected at the time of installation. (4) Continual use in emergency mode greater than 240 hours without recharge, will result in battery failure and void battery warranty.

    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
