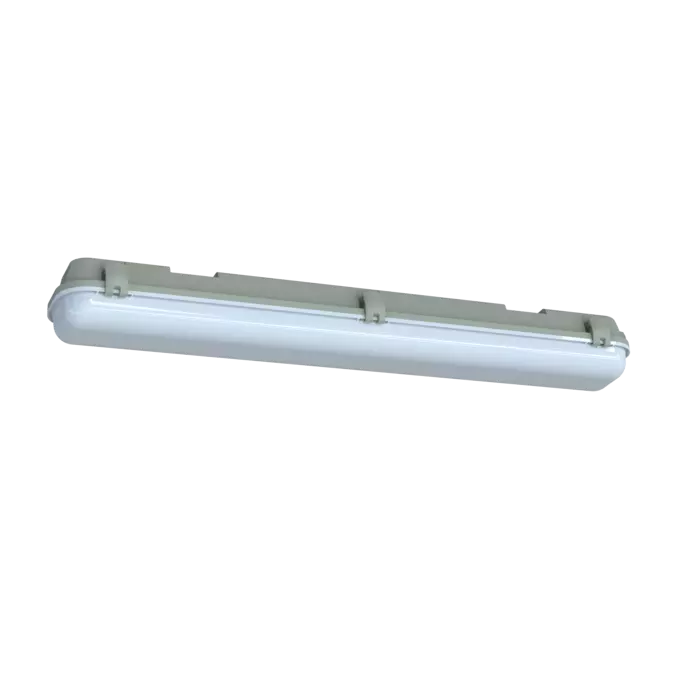

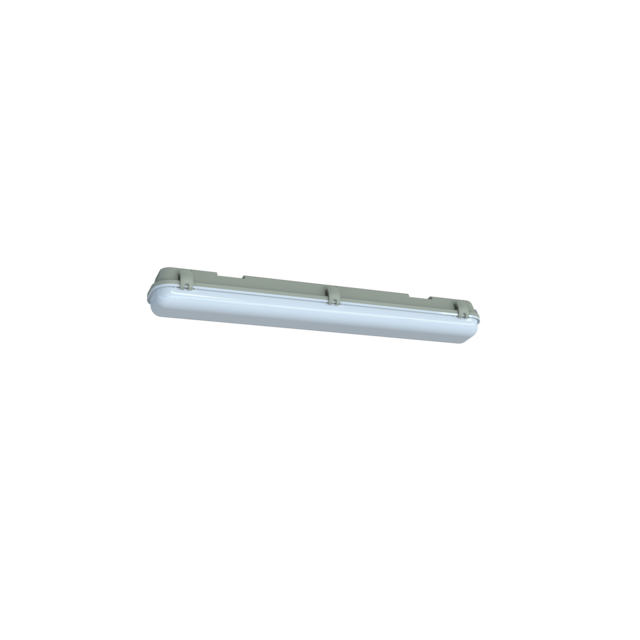

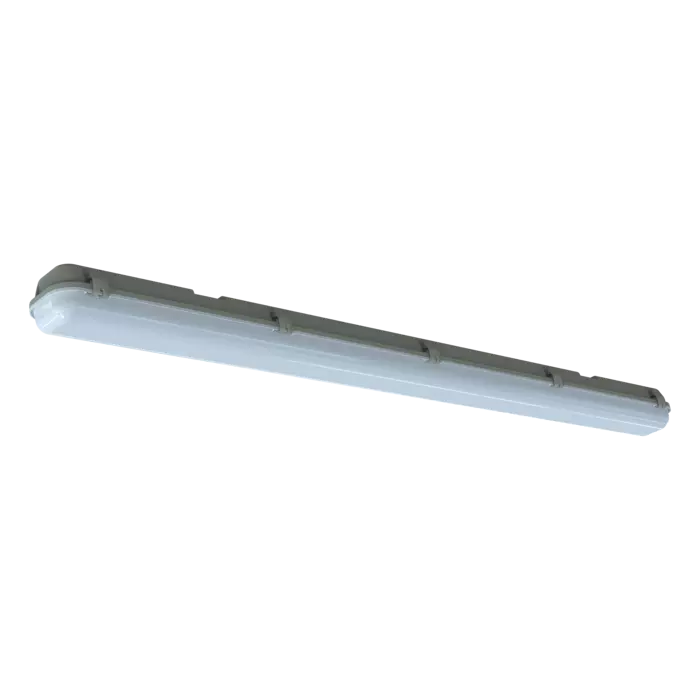

SOL-ECO SL9725TC / DP - 20/40W

IP65 LED DUAL POWER weatherproof batten, with selectable CCT temperature and power

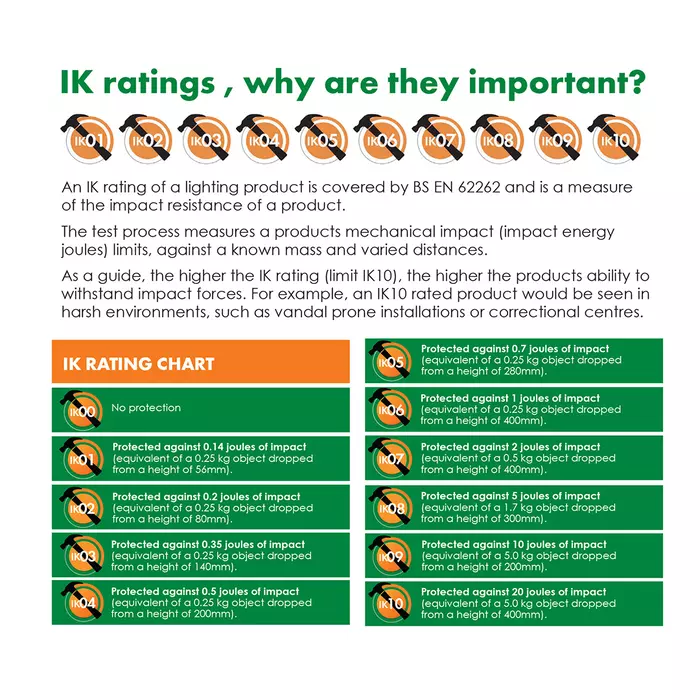

Commercial or industrial ceiling or suspended mount applications requiring IP65 and IK08 performance

Design Specifications

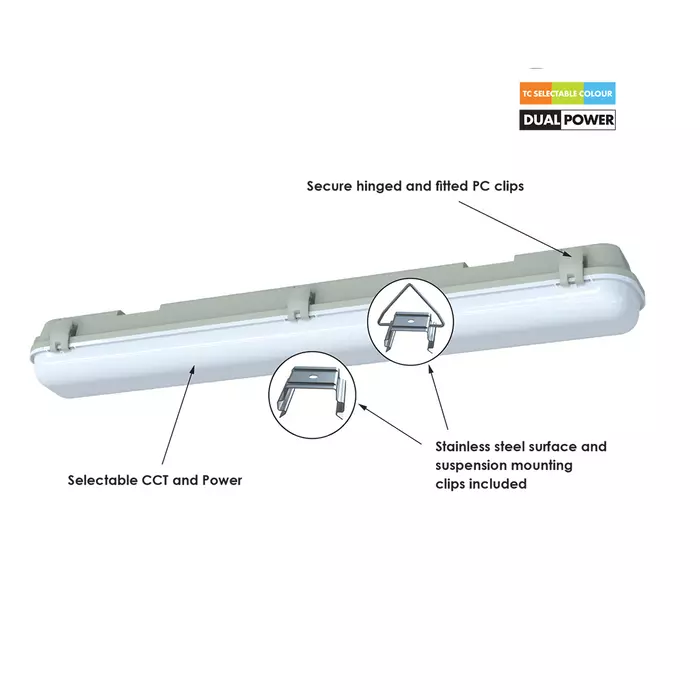

  • Selectable CCT 3000K /4000K /5700K

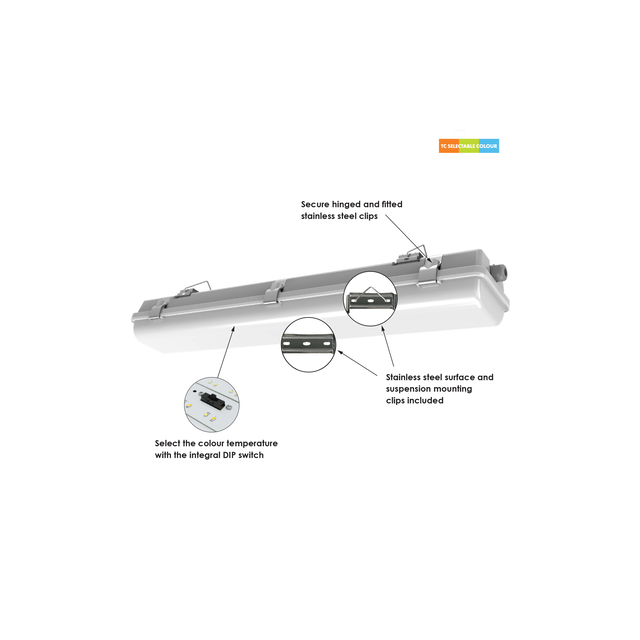

  • Rounded profile design, robust polycarbonate body, clips and UV stabilized polycarbonate diffuser

  • Integral constant current non-dimmable, dual power LED driver, 10/20 or 20/40 watt models

  • Product selections compliant to AS/NZS2293 Emergency Lighting & Exit Signs are located in the interior and exterior emergency sections of this catalogue

  • Installation types - Surface mount (standard), if Suspended (two off, SSI1512 wire suspension kits are required).

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.

  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Multiple Wattage Lumens CRI CCT Beam Angle Body Colour Dim IPART VEET REES Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click

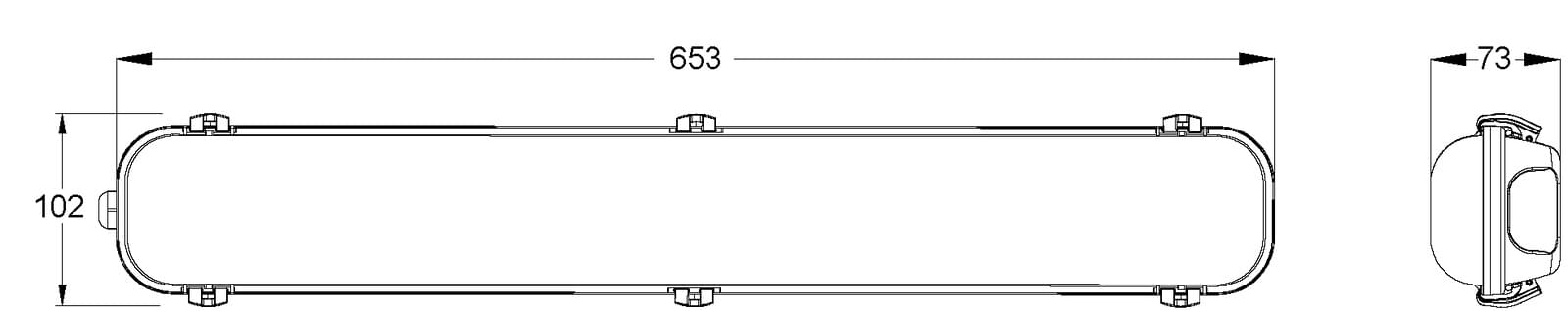

    Model No.SL9725/20TC/DP Input Voltage240 Power20 Multiple Wattage10/20 Lumens2100/2300/2150 CRI80 CCT3000/4000/5700 Beam Angle120 Body ColourGREY Dim653(L) x 102(W) x 73(H) IPARTN/A VEETN/A REESN/A Add to Enquiry Add Remove Remove

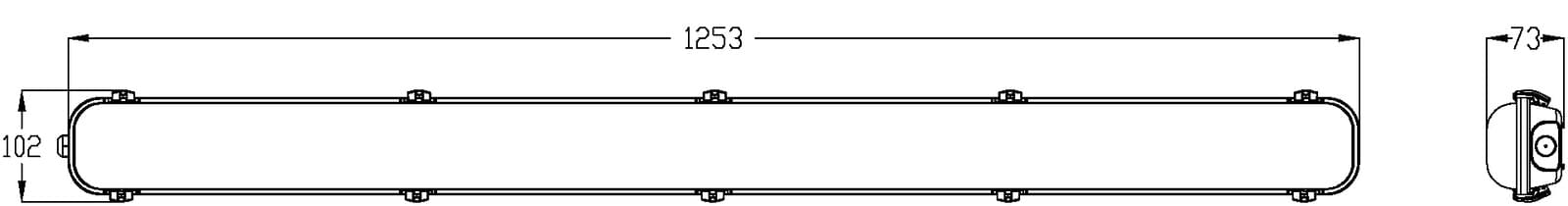

    Model No.SL9725/40TC/DP Input Voltage240 Power40 Multiple Wattage20/40 Lumens4100/4500/4200 CRI80 CCT3000/4000/5700 Beam Angle120 Body ColourGREY Dim1253(L) x 102(W) x 73(H) IPARTN/A VEETN/A REESN/A Add to Enquiry Add Remove Remove

    Note: Lumens (lm) shown are displayed at FULL power

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
