COOLUM PLUS flickerGUARD S9068TC/FG - 9W

9 watt dimmable LED downlight, UGR<19, with selectable CCT and flickerGUARD

Application

Ideal for any residential or commercial interior space, experiencing nuisance harmonic induced flicker

Design Specifications

  • The innovative flickerGUARD Coolum responds to both visual and non-visual harmonic induced flicker.

  • Integral flickerGUARD trailing edge dimmable LED driver, with smooth dimming performance and flex and plug

  • High efficiency LED optics, multi-faceted optical system, 60° beam distribution, UGR<19, CRI>90

  • Selectable CCT 3000 / 4000 / 5700K

  • White or black polyamide trim and body

  • IC - 4 rated, double insulated

Performance

  • Dimmable - YES

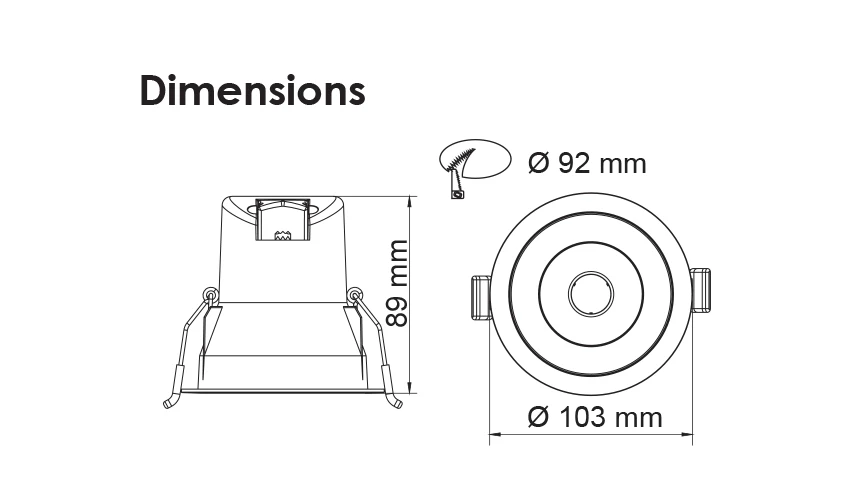

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ
    • Where can I buy SAL products?

      Where can I buy SAL products?

      SAL distribute their products through authorised Australian Electrical Trade Wholesalers and Lighting Retailers. To find a store near you, simply follow this link and input your postcode, where the nearest location to you will be provided.

    • Does SAL have office locations nationally?

      Does SAL have office locations nationally?

      Yes, SAL has customer service centres in Brisbane, Sydney, Melbourne, Adelaide and Perth.

    • What is LED flicker and how do you fix it?

      What is LED flicker and how do you fix it?

      LED flicker, what a nuisance and why does it occur?

      Well let's start with the TYPES of “flicker” in LEDs and then let’s discuss the CAUSES, and the SOLUTIONS.

      Firstly, there is visual flicker and as the definition states, the bare eye can see the LED flicker directly at various times. Then there is Non-visual flicker, which is harder to detect as the flicker experience typically can only be seen with the use of a smart phone, camera, or persons that are sensitive to artificial light sources and in some cases the flicker can be observed only via your peripheral vision.

      There are many causes of flicker, however, the consistent causes that arise are typically:

      (1) poor luminaire construction and or low quality LED components,
      (2) compatibility of the light source and a connected dimmer device, remember there is no international performance standard for the combination of dimming and LED devices, hence compatibility issues can sometimes be a challenge
      (3) connected inductive loads within the electrical circuit eg: fans, air conditioners, which can disrupt the circuit harmonics
      (4) ripple induced circuits, typically found in QLD and NSW, where the electrical provider sends a signal through the electrical system to control the off-peak hot water functions and
      (5) the use of off-grid power (diesel) supplies and or solar supply sources, which can cause harmonic distortion if the system is not filtered correctly.

      So, what are the SAL solutions?

      For commercial panel and commercial downlight applications, the selection of a premium control gear system, such as the SAL flickerCONTROLLED series will respond to non-visual created flicker.

      Examples of SAL product solutions are - PANELS   DOWNLIGHTS   INTERIOR ARCHITECTURAL  EXTERIOR ARCHITECTURAL

      For residential applications, the key is to identify the source of the flicker and then respond with a suitable flicker-controlled solution.

      For ripple induced flicker the SAL (premium) solution is the rippleSHIELD series, which uses a combination of a dedicated dimmer and downlight to completely eliminate ANY flicker experience. This system has no equal and has been proven to address all flicker influences, whether it be mains connected ripple induced or inductive load supplies. Examples of SAL rippleSHIELD product solutions are.

      Now for non-visual and visual harmonic induced flicker, the SAL solution is the flickerGUARD series, which uses an advanced circuit design, responding to both visual and non-visual harmonic induced flicker experiences. Unlike the rippleSHIELD system, this solution utilizes the existing dimming device, which naturally carry third party design tolerances. Examples of SAL flickerGUARD product solutions are .


    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Cut Out Diameter Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click

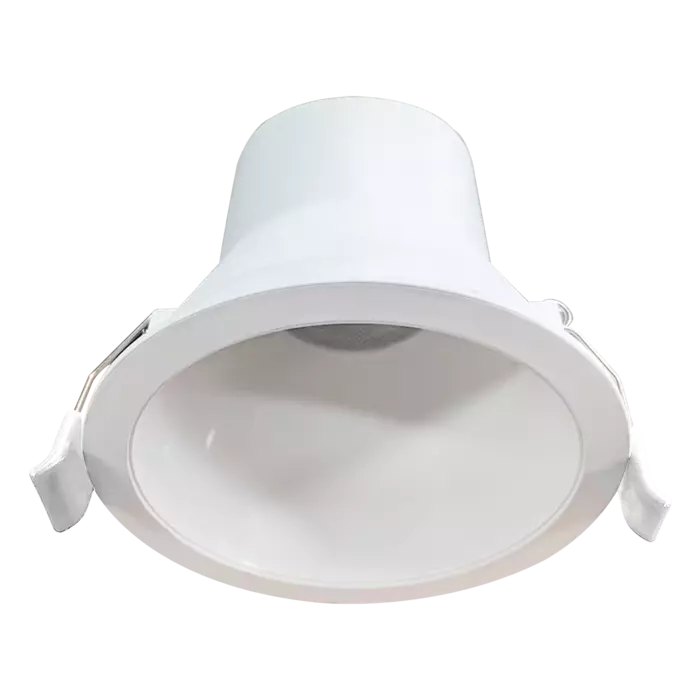

    Model No.S9068TC/WH/FG Input Voltage240 Power9 Lumens700/780/750 CCT3000/4000/5700 Beam Angle60 Dimmable YES CRI90 Cut Out92 Diameter103 Dim89(H) Add to Enquiry Add Remove Remove

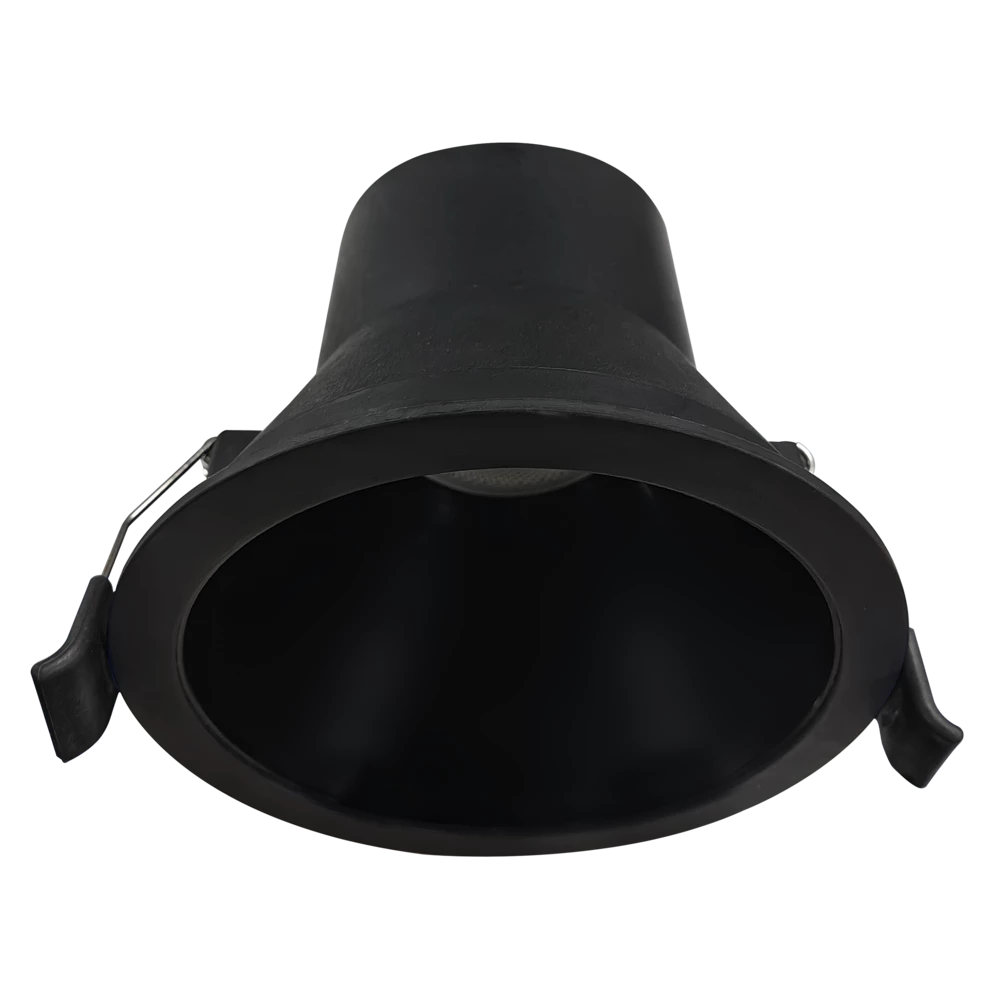

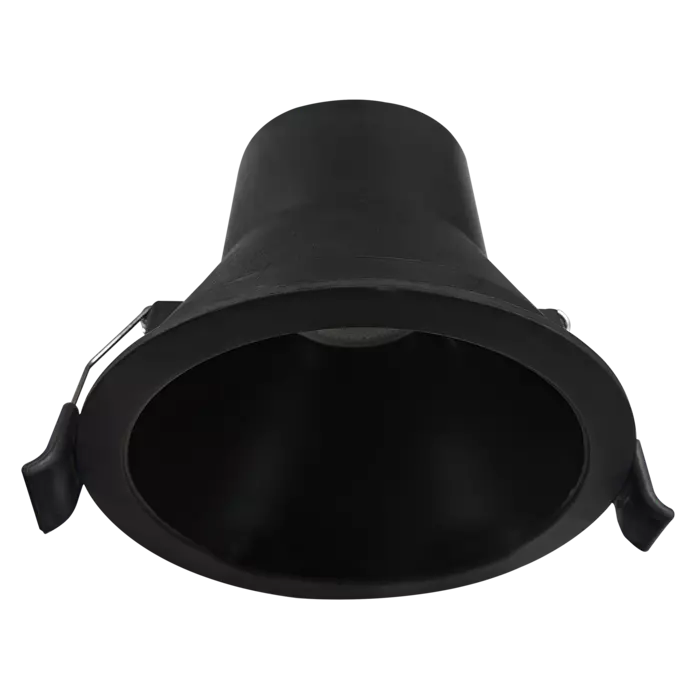

    Model No.S9068TC/BK/FG Input Voltage240 Power9 Lumens570/630/610 CCT3000/4000/5700 Beam Angle60 Dimmable YES CRI90 Cut Out92 Diameter103 Dim89(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
